4. Close Generator (Side B) Main Contacts by using both operating handle and
screwdriver simultaneously as described below:

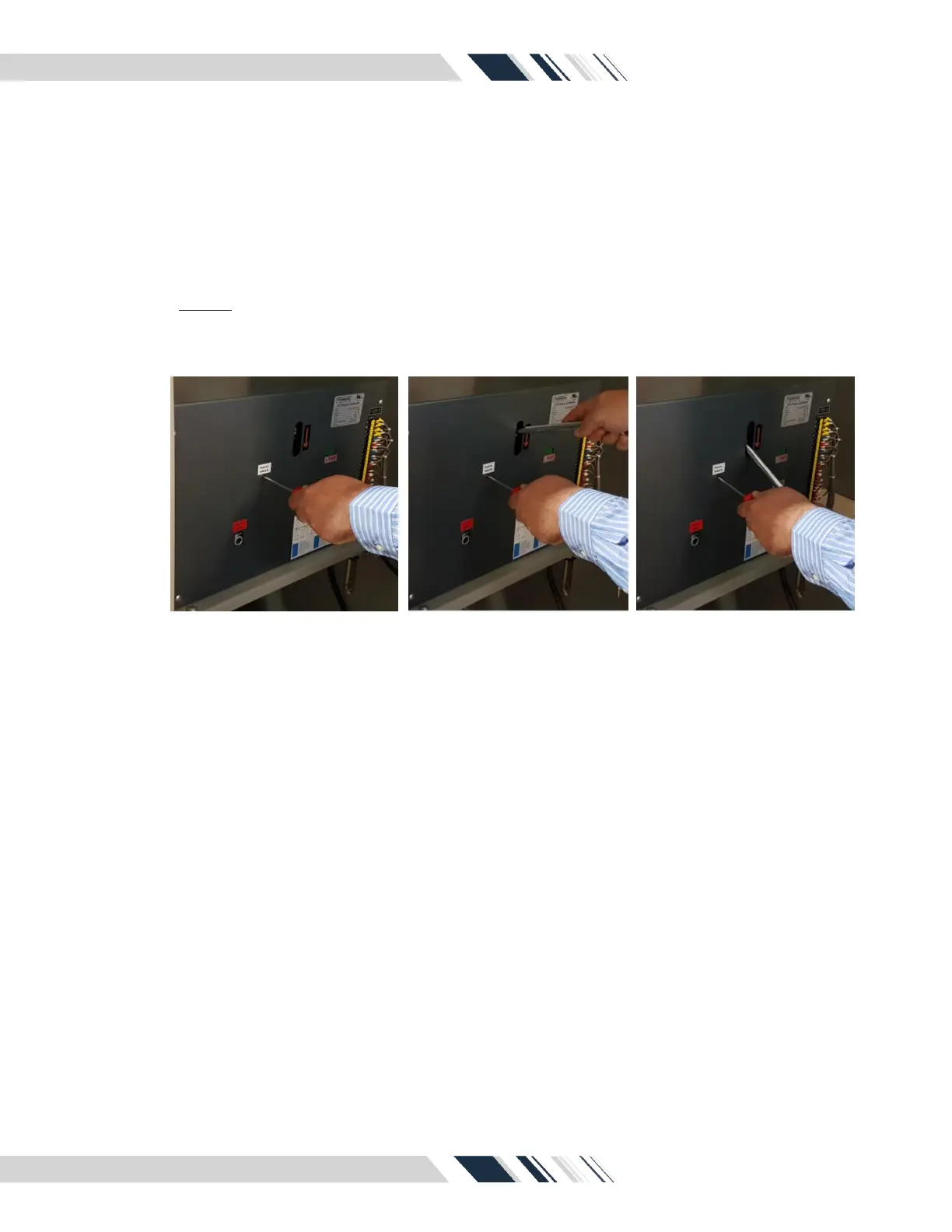

Insert the screwdriver into the SELECT B hole and while pushing and holding the
screwdriver in, insert the operating handle onto the Power Contactor Operating Shaft
and move in the direction shown below until the Gen Main contacts latch closed as
shown by the Generator Position Indicator flag “ON”.
NOTE:
- DO NOT over-torque the operating shaft handle once position has been attained.
5. Once ATS is manually operated to the Generator “ON” position, remove the operating
handle & screwdriver from the Power Contactor and secure them away from any live
power sources.
6. Close ATS door and re-energize Generator power to return power to the load.
