Chapter 1: Connections and Setup
10
Important Connection Information
The cable modem supports Ethernet connections simultaneously
Ethernet Connection to One Computer
Make the connections to the modem in the following sequence:
1. Connect one end of the coaxial cable to the cable connection in the wall, and the other end to the connector
on the modem labeled “CABLE.”
2. Insert the plug from the AC power supply into the power AC jack on the cable modem and the two-prong
plug into the AC outlet.
Note: Use only the power supply that accompanied this unit. Using other adapters may damage the unit.
3. Connect one end of the Ethernet cable (straight-wired, see below) to the Ethernet port on the back of your
computer, and the other end to the ETHERNET port on the cable modem’s back panel.
Make sure that the Ethernet cable is straight-wired (not “null” or crossover-wired). However, you will need
a crossover-type cable if you are connecting the modem to a hub, or a hub within a port switch that provides
the same function.

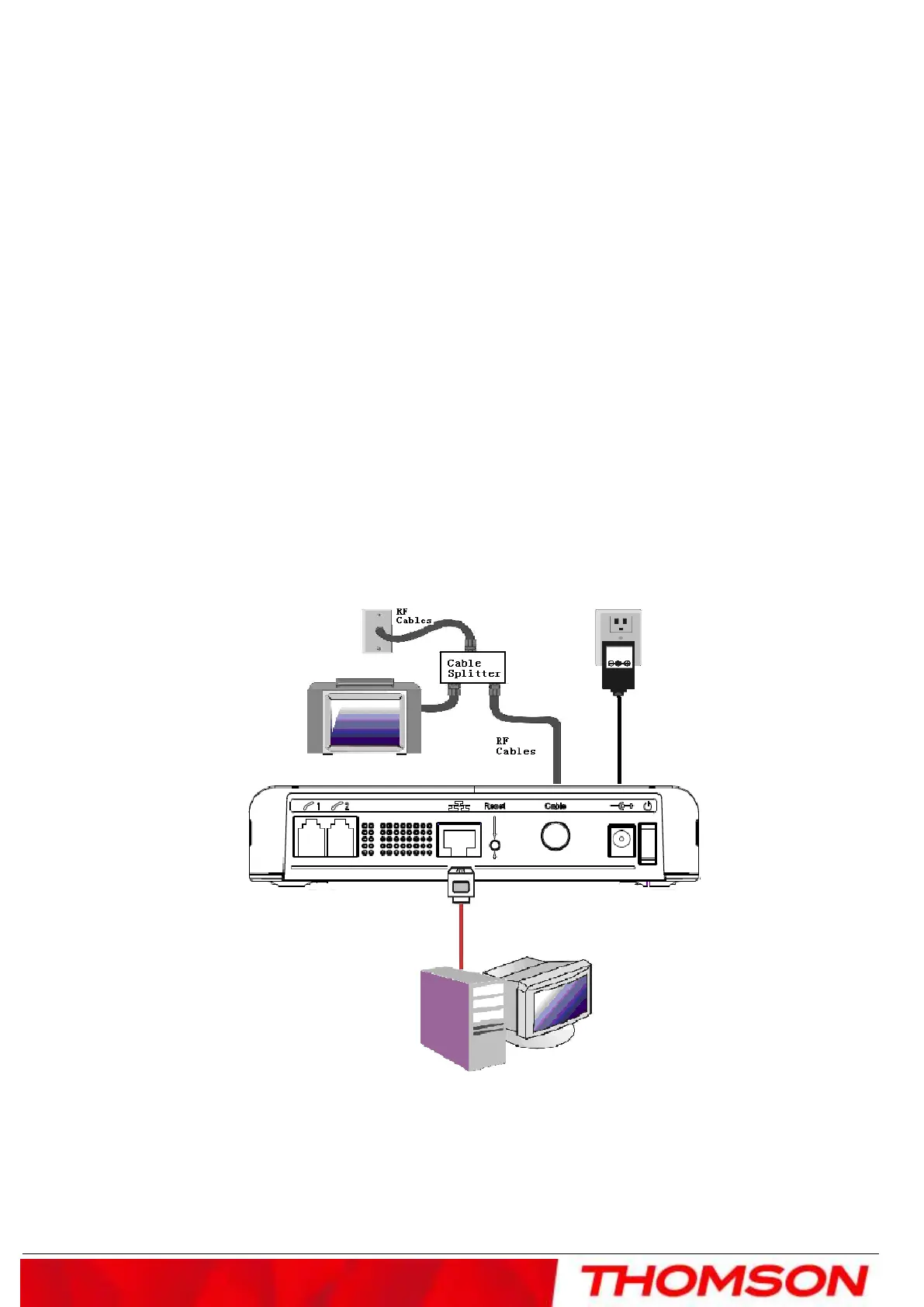

Fig. 2
