CONNECTIONS

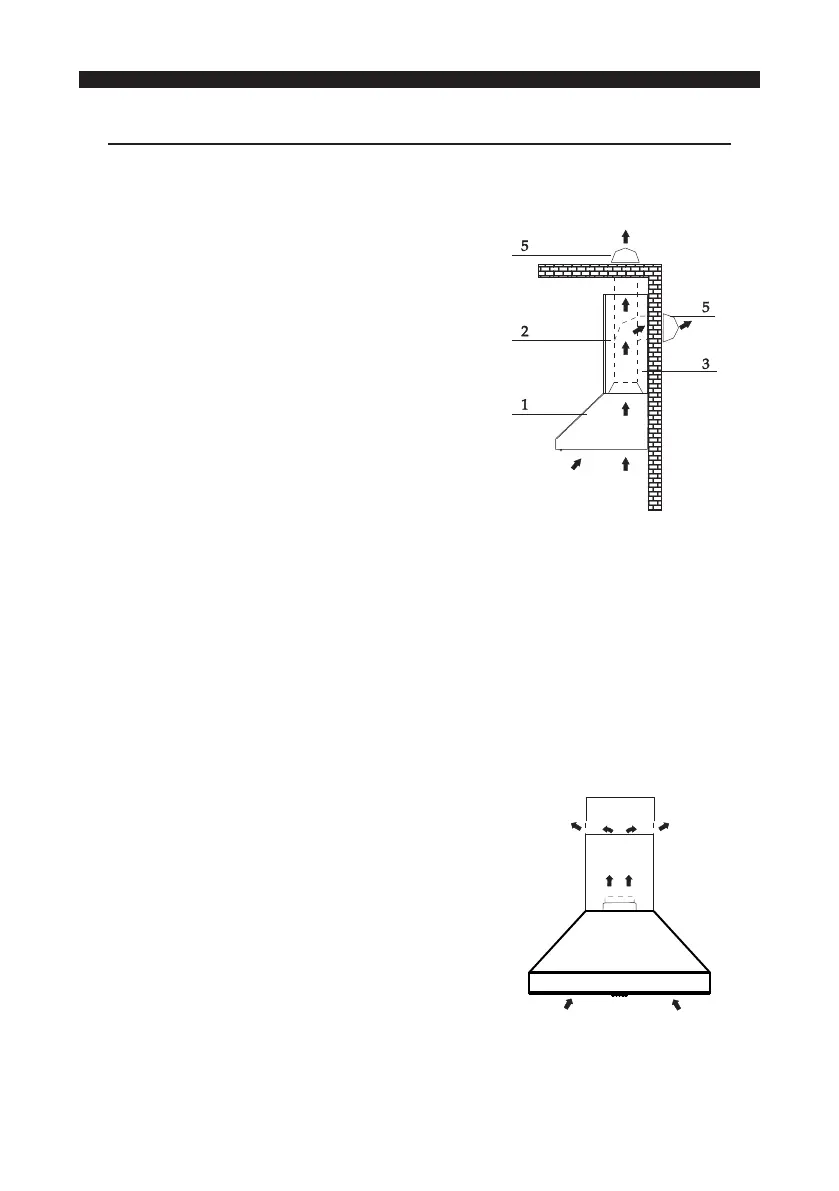

Ducted mode air exhaust system
Caution:To reduce the risk of fire,use metal ductwork only.(Metal
duct should be sourced by locally.)
1.Decide where the ductwork will run
between the hood and the outside.
2. A straight, short duct run will allow
the hood to perform most efficiently.
3.Long duct runs,elbows,and transitions
will reduce the performance of the hood.
Use as few of them as possible. Larger
ducting may be required for best
performance with longer duct runs.
4.Attach an adequate length of ɸ7"round
duct to the air outlet adapter.
5.The air must not be discharge into a flue
that is used for exhausting fumes from
appliances burning gas or other fuels.
Regulations concerning the discharge of air have to be fulfilled.
6.Install wall cap or roof cap. Connect round metal ductwork
to cap and work back towards the hood location. Use duct
tape to seal the joints between duct work sections.
Recirculation Mode
Caution:Do not use plastic or rigid metal ducting.
1.Install the charcoal filter on.
2.Please note that the air will flow out from the
two grids on the two sides of the chimney top.
3. If choosing recirculation kit,for exhausting
air smoothly, please make sure that there is a
gap of 20mm at least between the cabinet or
chimney cover and the ceiling.
INSTALLATION & USE
11
