INSTALLATION & USE
MOUNTING THE HOOD
1. Mount two main mounting screws into the wall along the line that is 16"above the
horizontal line.To ensure that two screws are paralleling with horizontal line.

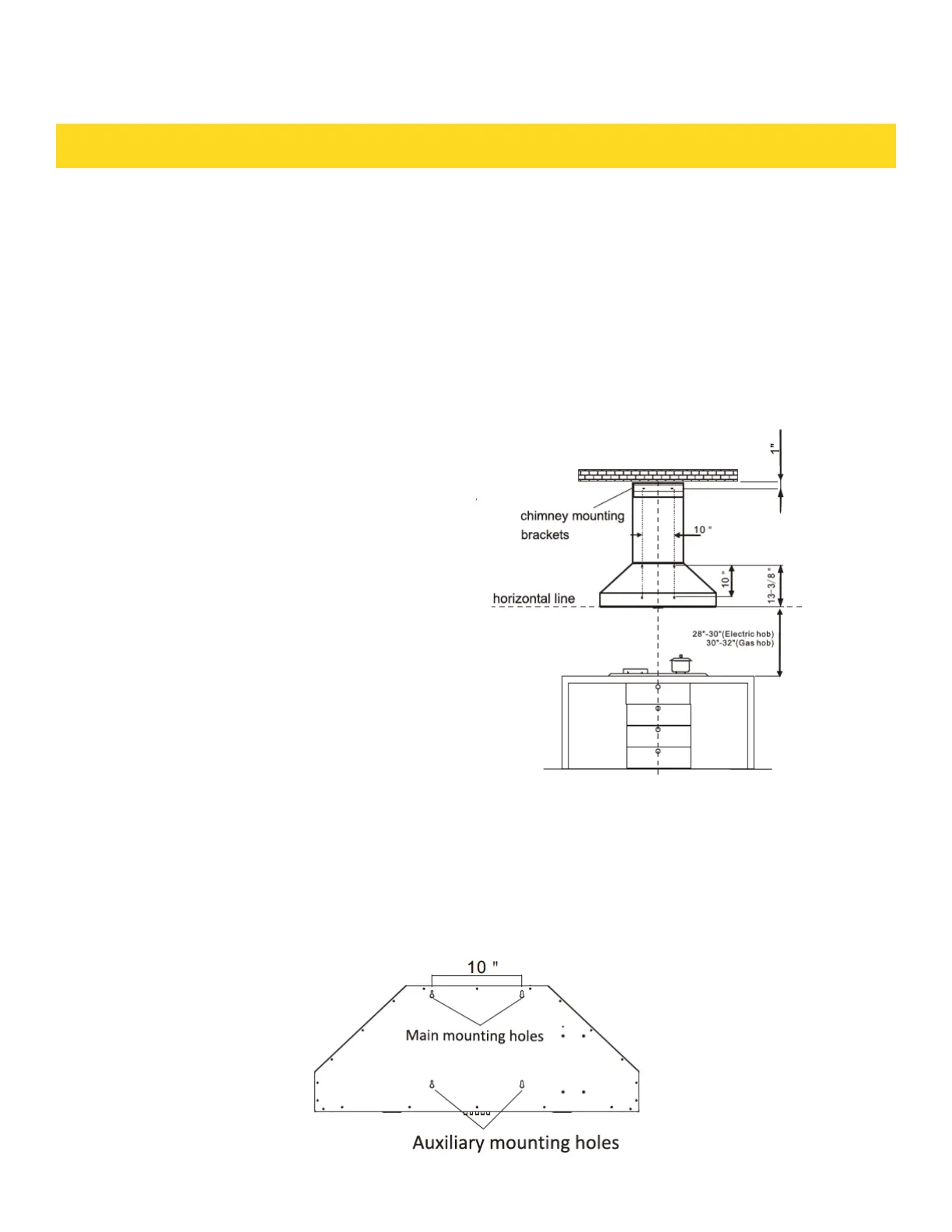

INSTALLTION DRILLING AND LINING
1. Draw a vertical line on the wall where the
hood will be installed, up to the ceiling or as
high as needed.
2. Draw a horizontal line 28-30 inches above
an electric cooktop or 30-32 inches above a
gas cooktop.
3. Place chimney mounting brackets on the
wall as shown about 1”(27mm) from the
ceiling or upperlimit aligning the centre
(notch) with the vertical reference line.
USE ONLY RANGE HOOD CORD CONNECTION KITS THAT HAVE PROVIDED FOR USE
WITH THIS RANGE HOOD.
Note 1: Carefully remove the plastic protective film from all exterior surfaces of the
hood, filters and duct cover prior to installation.
Note 2: At least two people will be required to mount this product.
To Next Page
