NOTE: Sofas are usually fitted with safety belts, which may fall into the sofa base during bed conversion. When
converting the bed back to a sofa, be sure to feed the safety belts through the space between the bottom cushion
and back panel so that the safety belts are available for passenger use.

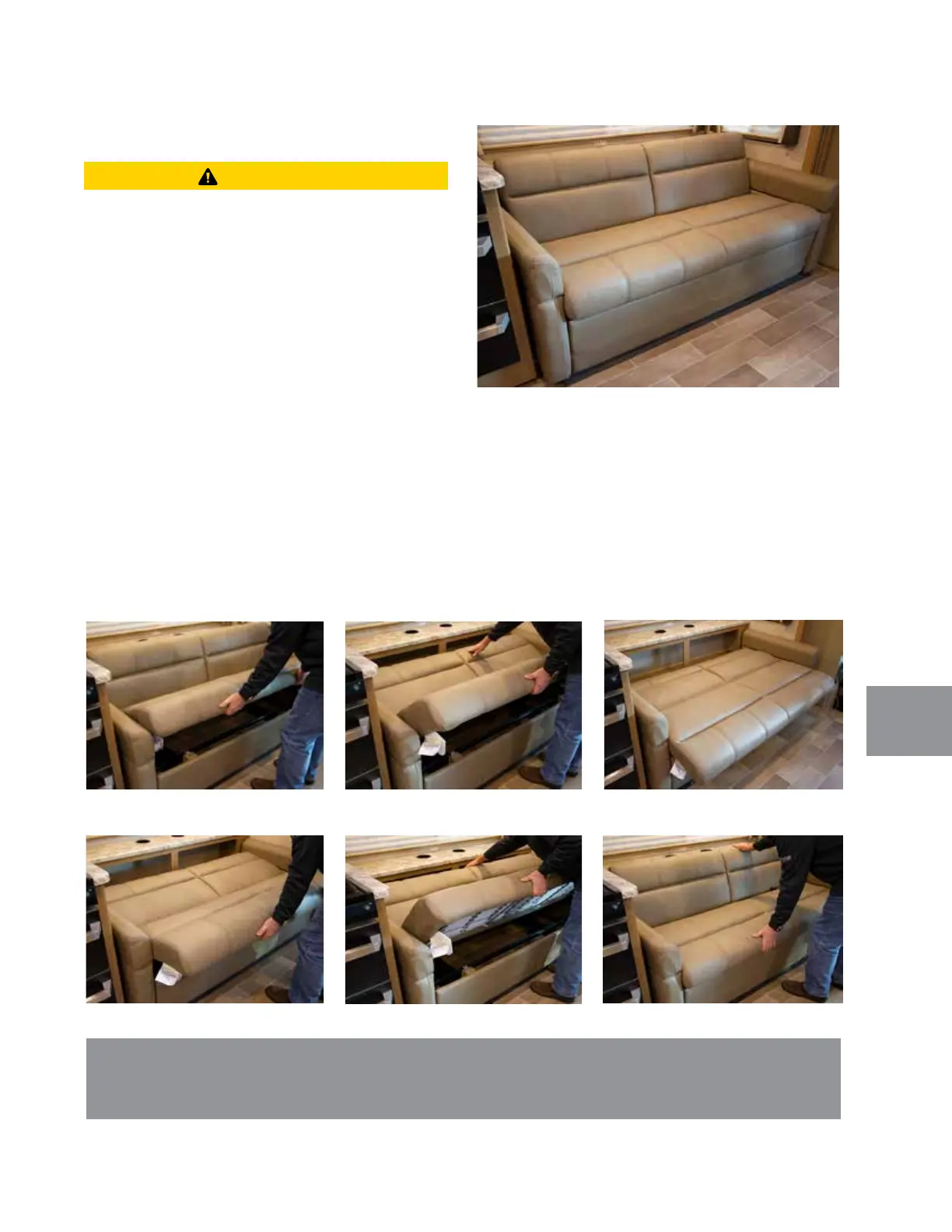

Figure 1 Figure 2 Figure 3
Figure 4
Figure 5
Figure 6
Sofa Bed Conversions
Sofa beds contain hinged panels and brackets which
present pinch points. Keep ngers and other body
parts away from hinged panels and brackets.
CAUTIONCAUTION
TO CONVERT A JACK-KNIFE SOFA INTO A BED:
1. If the sofa is installed along a slideout wall, extend the
slideout.
2. Li the front edge of the bottom cushion to approxi-
mately 45 degrees and pull towards you (Figure 1).
3. With the pulling motion, the back of the sofa should
begin to recline. Push the back down while continuing
to pull the bottom towards you (Figure 2).
4. When the back cushion is horizontal, lower the bot-
tom cushion to lay at (Figure 3).
TO RETURN THE BED TO A SOFA:
1. Li the leading edge of the bottom cushion to approx-
imately 45 degrees (Figure 4).
Jack-Knife Sofa Bed
2. Push the leading edge of the bottom cushion in a down-
ward and backward direction. is will li the back
cushion. Pull the back towards you while continuing
to push the bottom cushion downward and backward
(Figure 5).
3. When the back cushion is in its up-right position, lower
the bottom cushion to its seating position (Figure 6).
