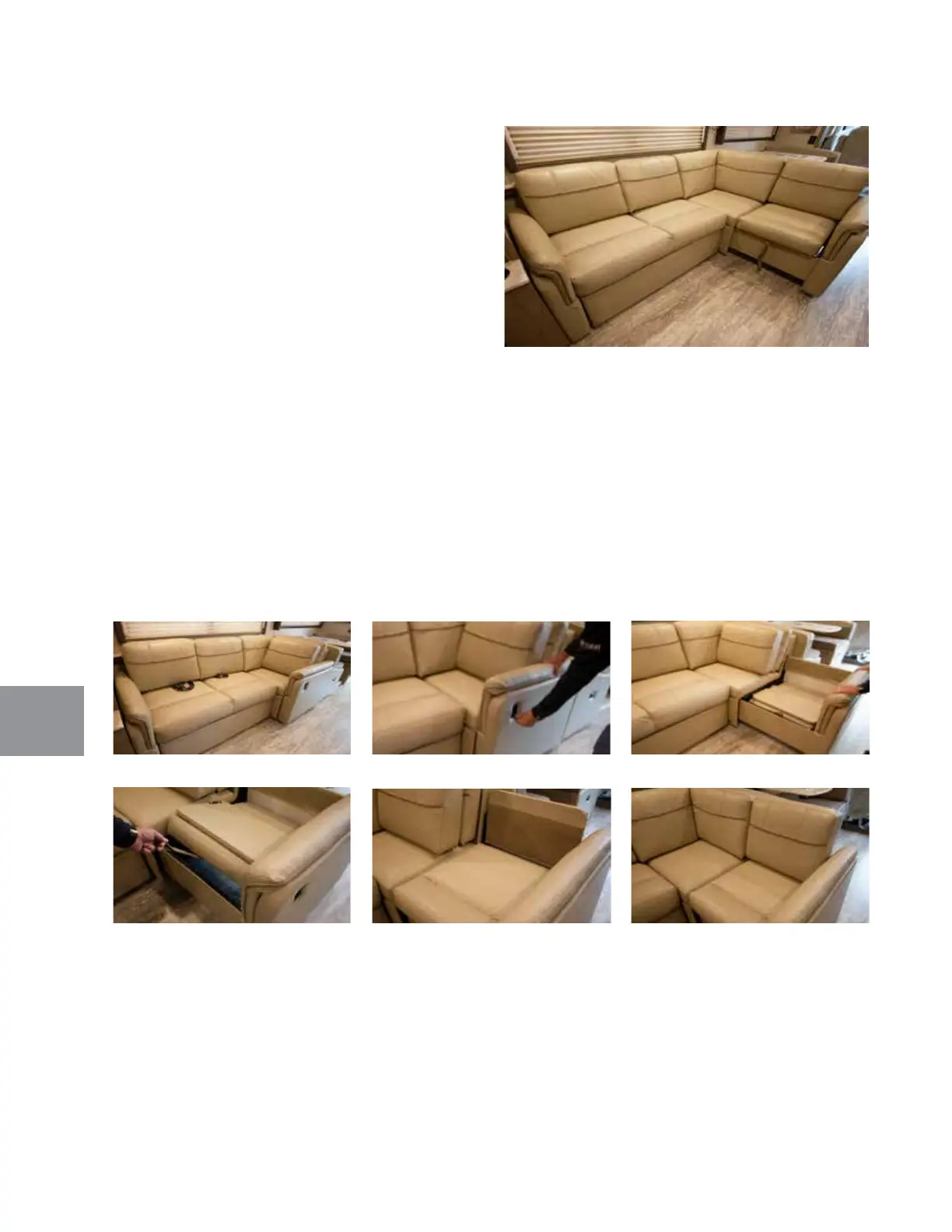

L-Shape Sofa
EXPANDING THE L-SHAPE SOFA’S SEATING:
1. If the sofa is installed along a slideout wall, extend the
slideout to ensure adequate oorspace for the sofa
extension and bed (Figure 1).
2. Release the catch-lever located on the outside arm of
the sofa (Figure 2).
3. Pull the L-Shape seat to its full extension (Figure 3).
4. Grasp the pull strap located along the front edge of the
seat cushion and pull up AND outward. en lower
the seat cushion in its extended and horizontal posi-
tion (Figure 4).
5. Flip the back panel to its vertical position (Figure 5).
6. Place the back cushion against the back panel (Figure 6).
RETURNING THE SEAT TO ITS STOWED
POSITION:
To stow the L-shape seat, reverse steps 1-6.
