ELL14 Motorized SM1 Optic Rotator Chapter 4: Operation
Page 8 DTN000522-D02
4.2.1 Hand-held Controller
Caution
On power up the rotator will move while the unit checks the sensors and then searches for the home position.
The hand-held controller supplied with the ELL14K Evaluation Kit features two buttons (marked FW and BW) that allow control
of the rotator position. The handset also provides for connection to the host PC and to the external 5V power supply. The external
PSU connector allows the rotator to be used in the absence of a PC, with control being achieved via the handset buttons.
LED1 (green) is lit when power is applied to the unit. LED2 (red) is lit when the device being driven is in motion.

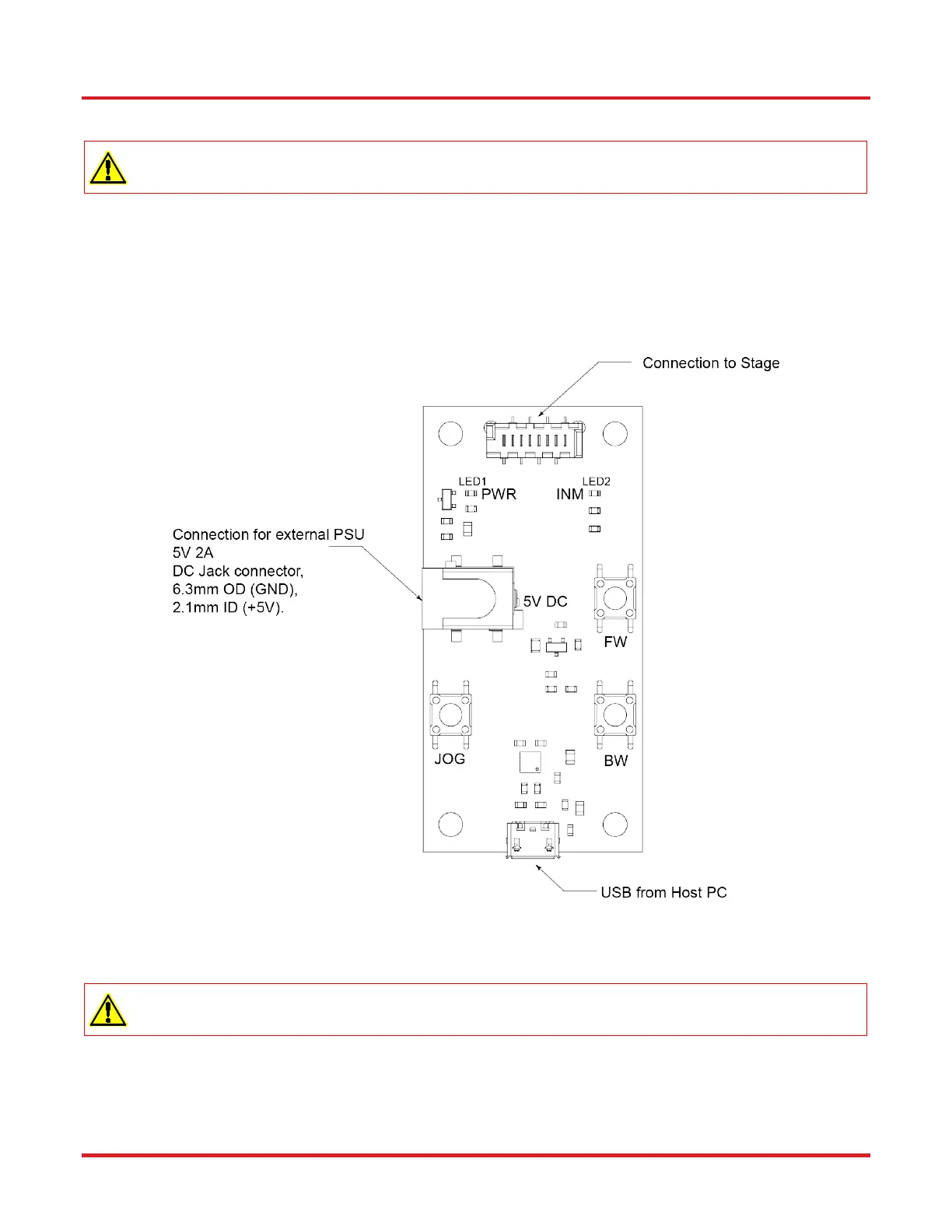

Figure 5 Handset Details
Caution
The rotator must be homed before performing any Jog moves.
1. Home the rotator by pressing the BW button.
2. To jog forward, press and hold JOG and then press FW. The default jog step value is 45 degrees.
The jog step size can be changed in the software GUI, see the help file for details.
3. To jog backward, press and hold JOG and then press BW.
