EXULUS-HD1 & EXULUS-4K1 Spatial Light Modulators Chapter 7: Application Note: Displaying CGH Patterns
Page 36 CTN008794-D02

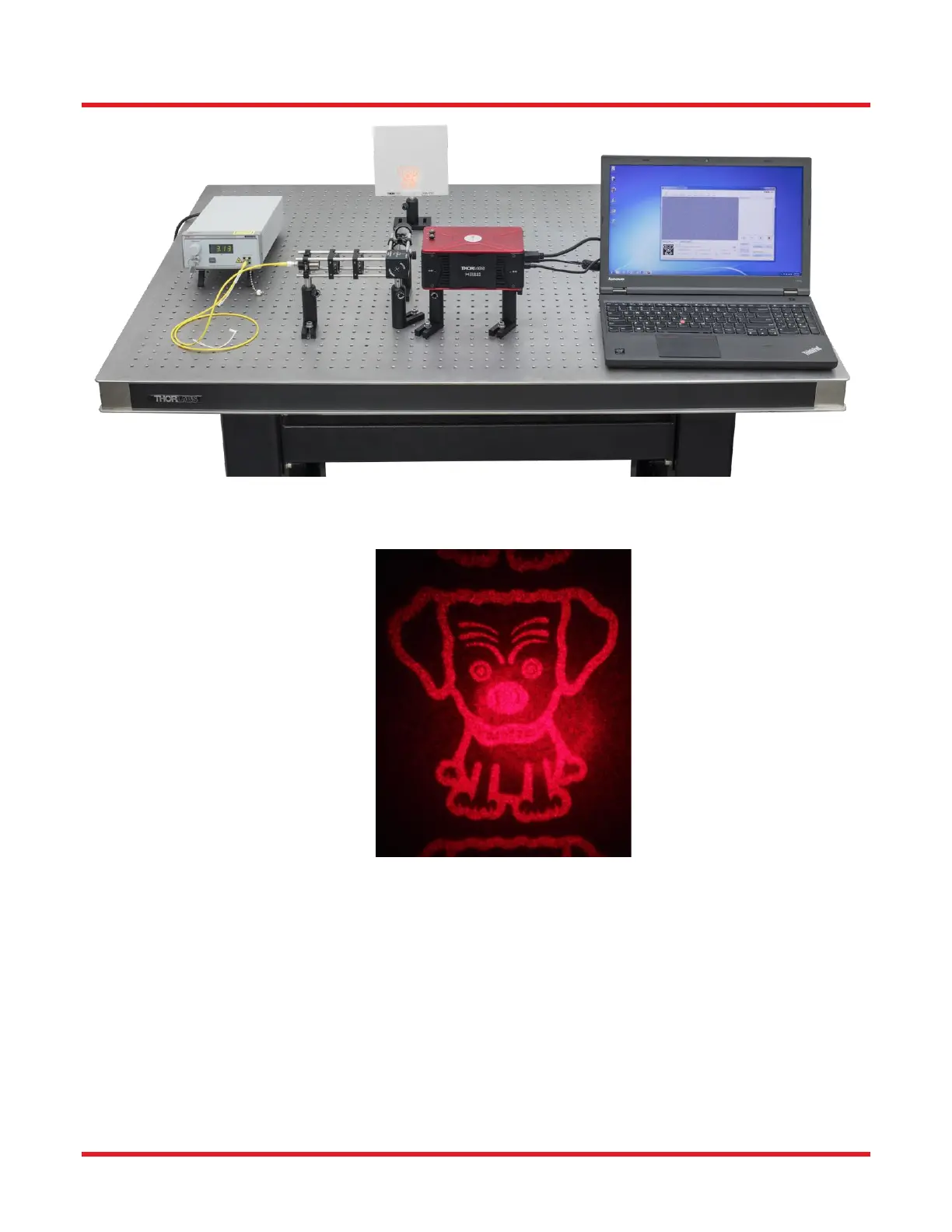

Figure 35 Setup used for removing the focused zero-order spot from the CGH projection. Note that
the lenses are in different locations than in Figure 31.
Figure 36 CGH projection of the CGH pattern shown in Figure 32 and the setup shown in Figure 35.
Additionally, the “Spatial Light Modulator” software allows an X and/or Y tilt to be added to the CGH pattern; this
can be used to displace the CGH projection from the central zero-order spot.
