Page 34 20381-D02
Single- and Dual-Axis Scanning Galvo Systems for Large Beam Diameters
As a result, you will find the scanning field turn out to be a "pillow-shaped" image, see
Fig. D.2 below.

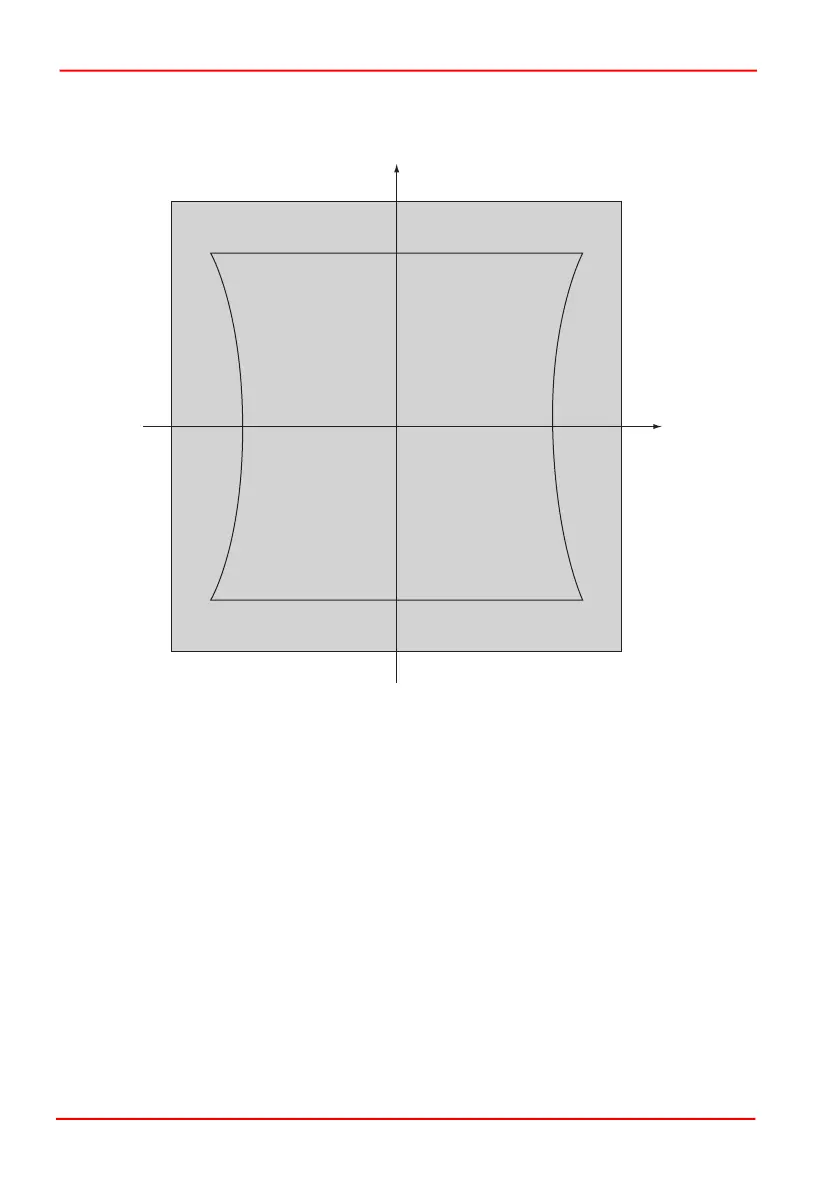

Fig. D.2 Pillow-shaped Field Distortion Caused by the Arrangement of Mirrors
