4.5 Mounting to the Work Surface
The stage bolts directly to the work surface as shown below.

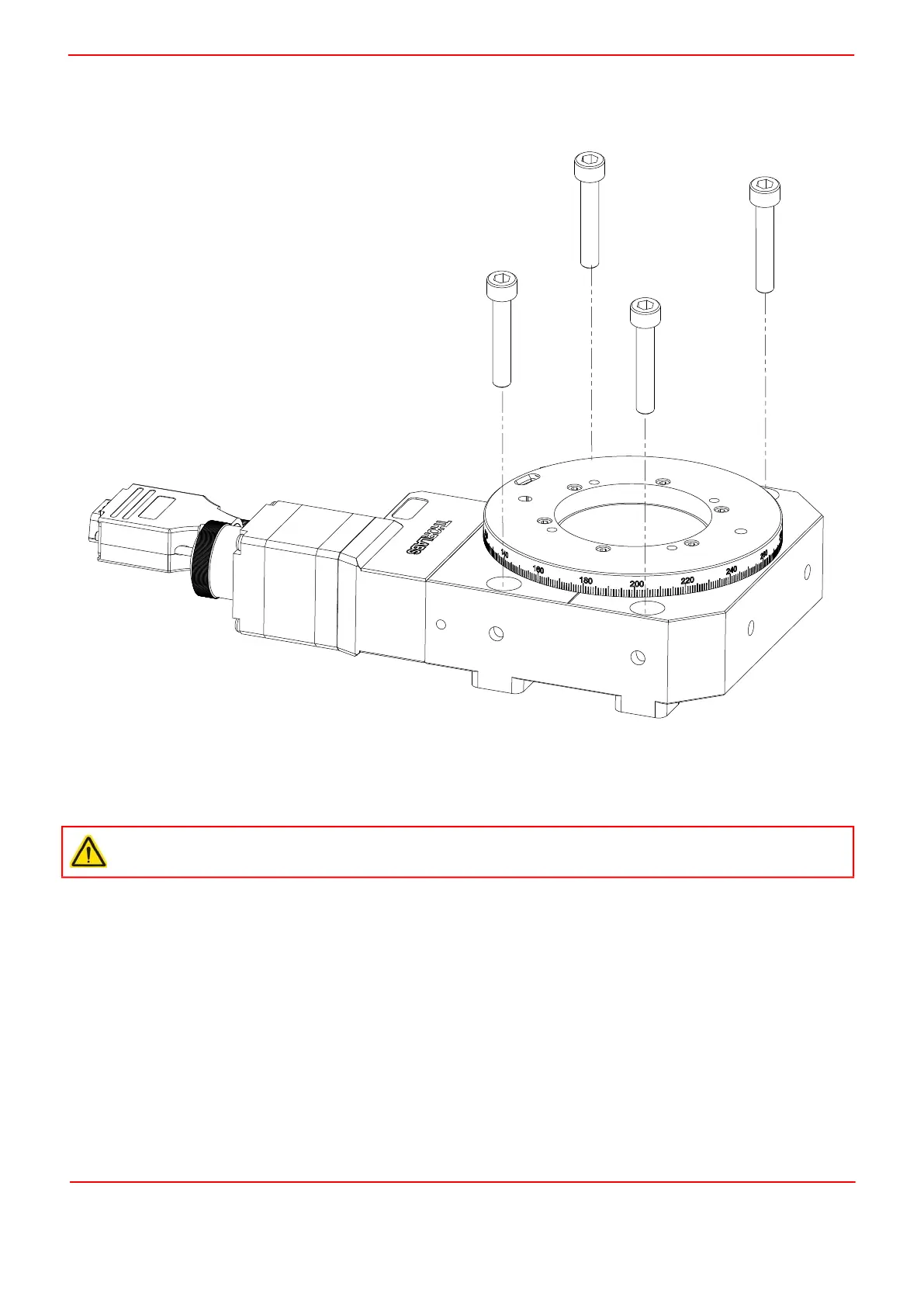

Fig. 4.1 Mounting the Stage to the Work Surface
4.6 Attaching Components and Devices
Caution
Users must ensure that components and devices fitted to the unit are properly secured to the moving platform.
