Threshold STUDIO MCGEE TGT63BK - Step 5: Install Top Panel

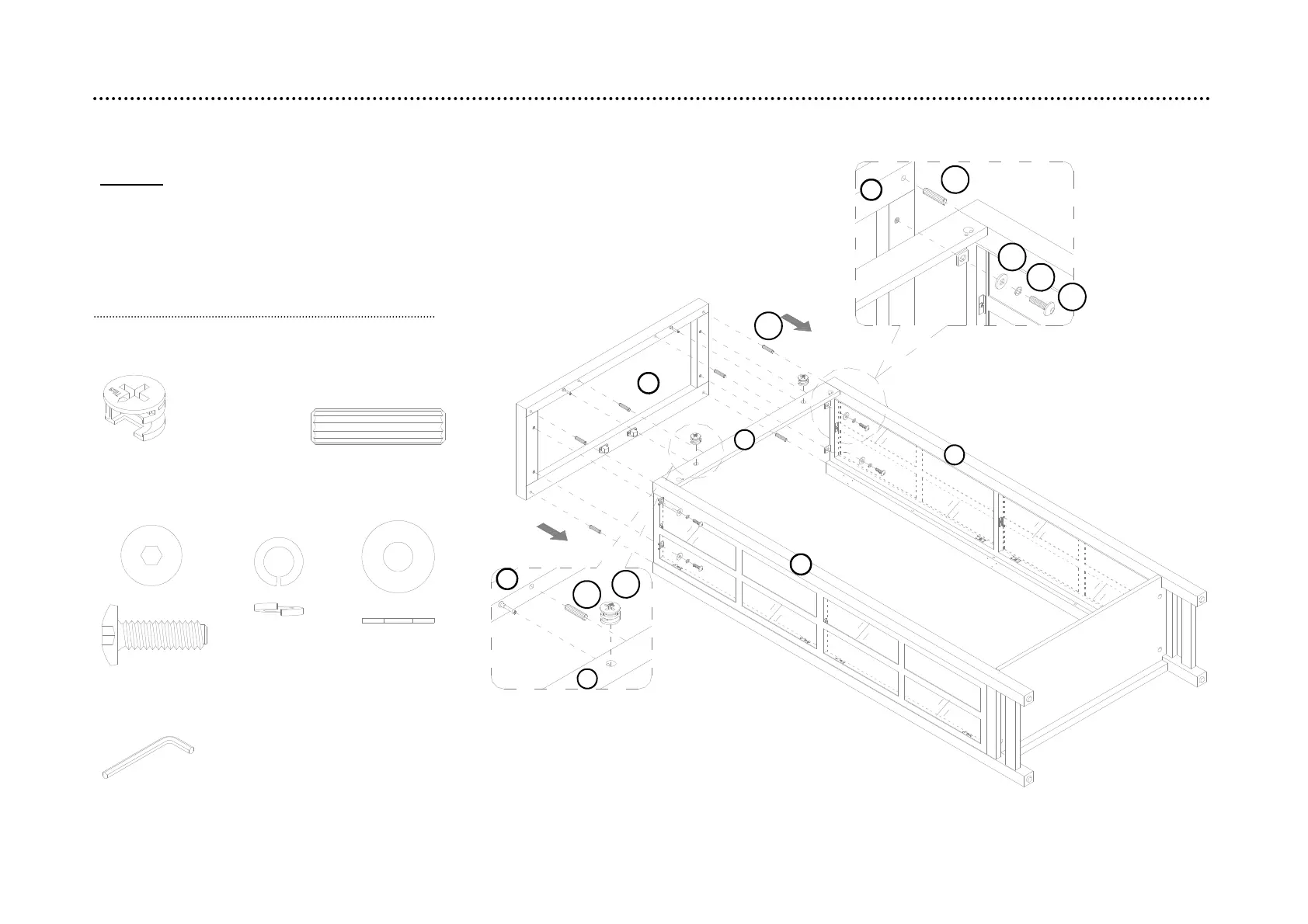

step 5: Install the top panel
(H1) x 2
cam lock
(H3) x 6
M8 x 30 mm
wood dowel
5.1. Insert the wood dowels (H3) into the inner holes on the side frames (F and G) and the top back stretcher (D).
5.2. Secure the top panel (A) to the top back stretcher (D) using two cam locks (H1).
5.3. Fasten the top panel (A) to the side frames (F and G) using four bolts (H5) and four washers (H6 and H7).
12
(H6) x 4
lock washer
(H7) x 4
flat washer
NOTE: DO NOT fully tighten all bolts
until you finish assembling all parts.
Once assembled, go back and fully
tighten all bolts. This will make the
assembly easier.
(H19) x 1
large hex wrench
H1
D
G
F
H3
H3
H3
A
A
H5
H6
H7
A
D
(H5) x 4
1/4” x 3/4” bolt
