13

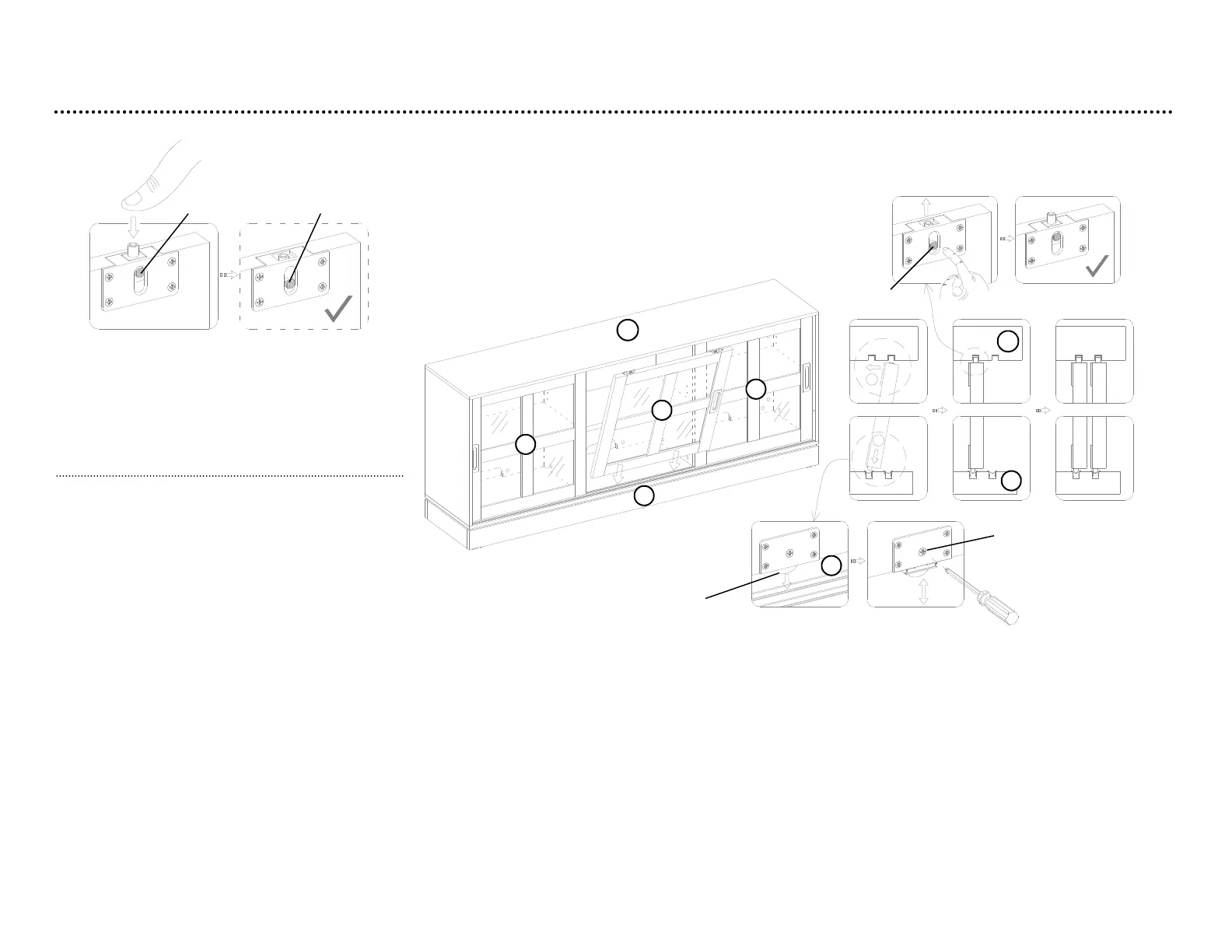

step 8: install the sliding doors
8.1. Pick up the left sliding door (E) and rest the bottom sliding rollers onto the inner roller track on the base (C).
8.2. Line up guide pins with the top guideway and press lever to unlock guide pin and release into the track.
8.3. If the guide pins can’t slide into the top guideway properly, take a Phillips screwdriver and adjust the center screw head on the back plates of the sliding
rollers to correct the top gap.
8.4. Repeat above steps to install the middle and right sliding doors (F). You need slide inside door to one side to allow access to the other side of the outer door
in opening to access slide door lock and release the guide pin. Then slide inner door to opposite side to allow access to other side of outer door in the open
case and release the other guide pin.
1
2
Guide pin
Lever
NOTE: The guide pins are retracted and
flush with the door top rail when shipping.
If the guide pins accidentally protruded out
(the lever is unlocked) when assembly,
press them down from the top and proceed
with the assembly.
F
E
A
C
C
F
A
Door inner view
8.2
Lever
Sliding roller
8.1
Turn the center screw head
clockwise to rise the roller.
Turn it counter-clockwise to
lower the roller.
Door inner view
8.3
C
To Next Page
