F
14

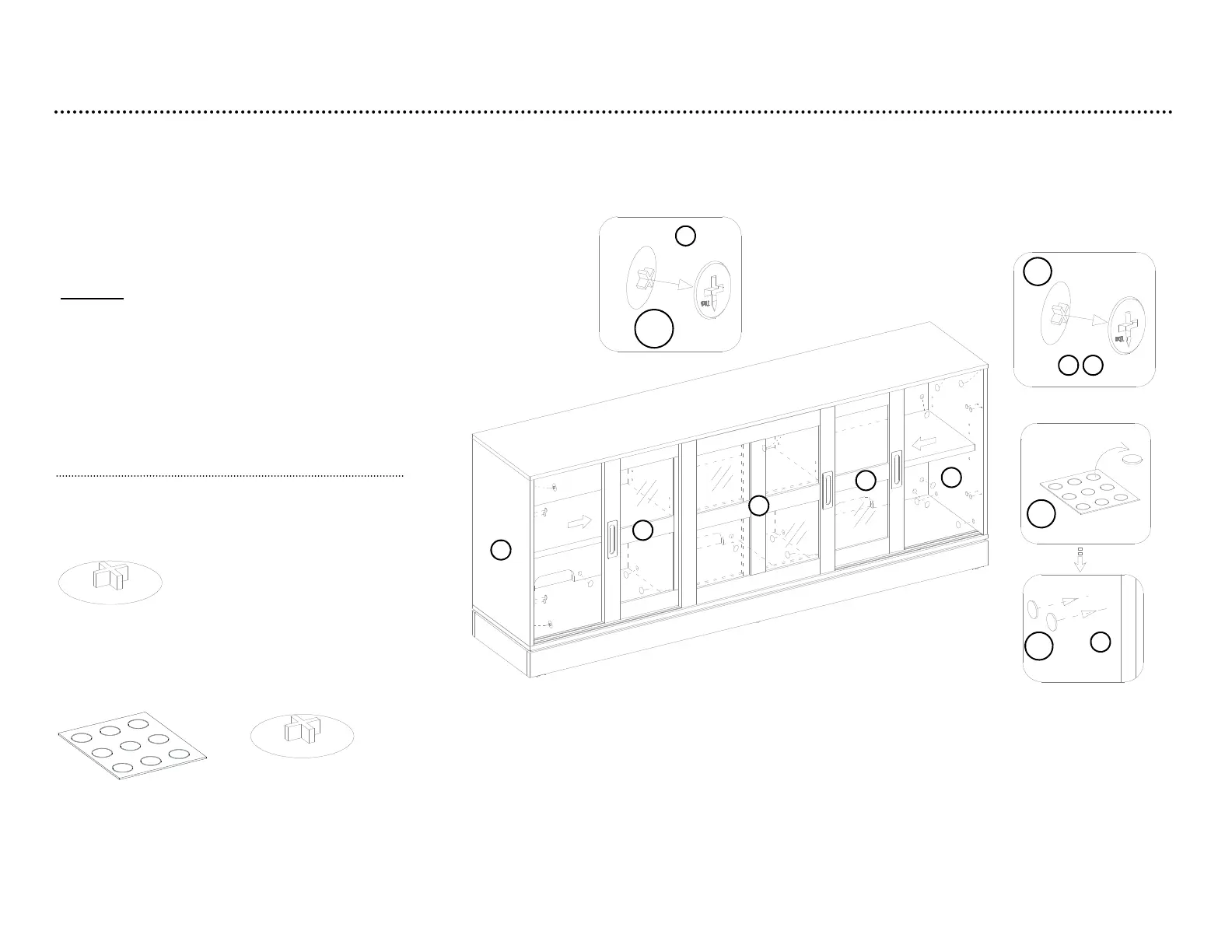

step 9: Install the cam lock covers and rubber bumpers
9.1. Plug the cam lock covers (H5) into the visible cam locks onto the side panels (H) and the middle partitions (D) to conceal the cams.
9.2. Plug the brown cam lock covers (H10) into the visible cam locks onto the back panels (G) to conceal the cams.
9.3. Using the pilot holes as a guide, affix the rubber bumpers (H6) onto each side panel (H) where the sliding doors are in contact with.
(H6) x 8+1
rubber bumper
NOTE: DO NOT slam shut the sliding
doors to prevent from damaging and
leaving gap.
H6
H6
H
H
H
H5
H D
H10
G
(H10) x 20
brown cam lock cover
F
E
(H5) x 16
white cam lock cover (TGAVC72-23)
black cam lock cover (TGAVC72-24)
To Next Page
