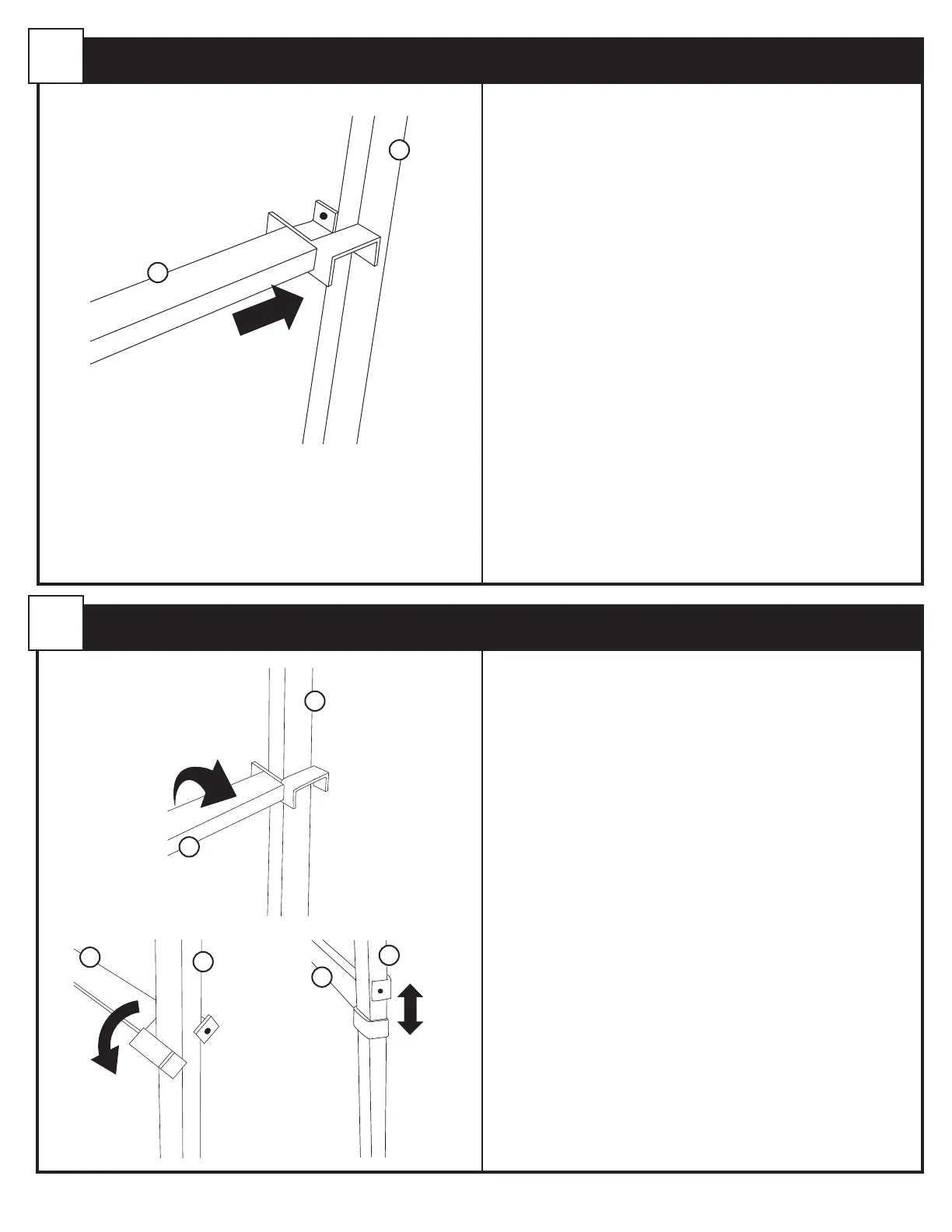

• Attach the four bike support arms (A) to the vertical side bars on the front side
of the Bike Stacker structure.
You should place two arms on each vertical side
bar. The arms are movable and can be positioned at any height on the vertical
side bars to adjust to the height of the bikes that will be placed on it.
As each bike support arm is gently pushed toward the structure, the vertical
side bars will be inserted between the two C-shaped tabs on the end of the
bike support arm.
3a
A
J
• Once the bike support arm is firmly against the vertical side bar, the bike
support arm should be turned ninety degrees clockwise so that the two
C-shaped tabs wrap around the vertical side bar
.
3b
A
J
A
J
J
A
