USE & FEATURES
5.0 cX dIsk Brake system

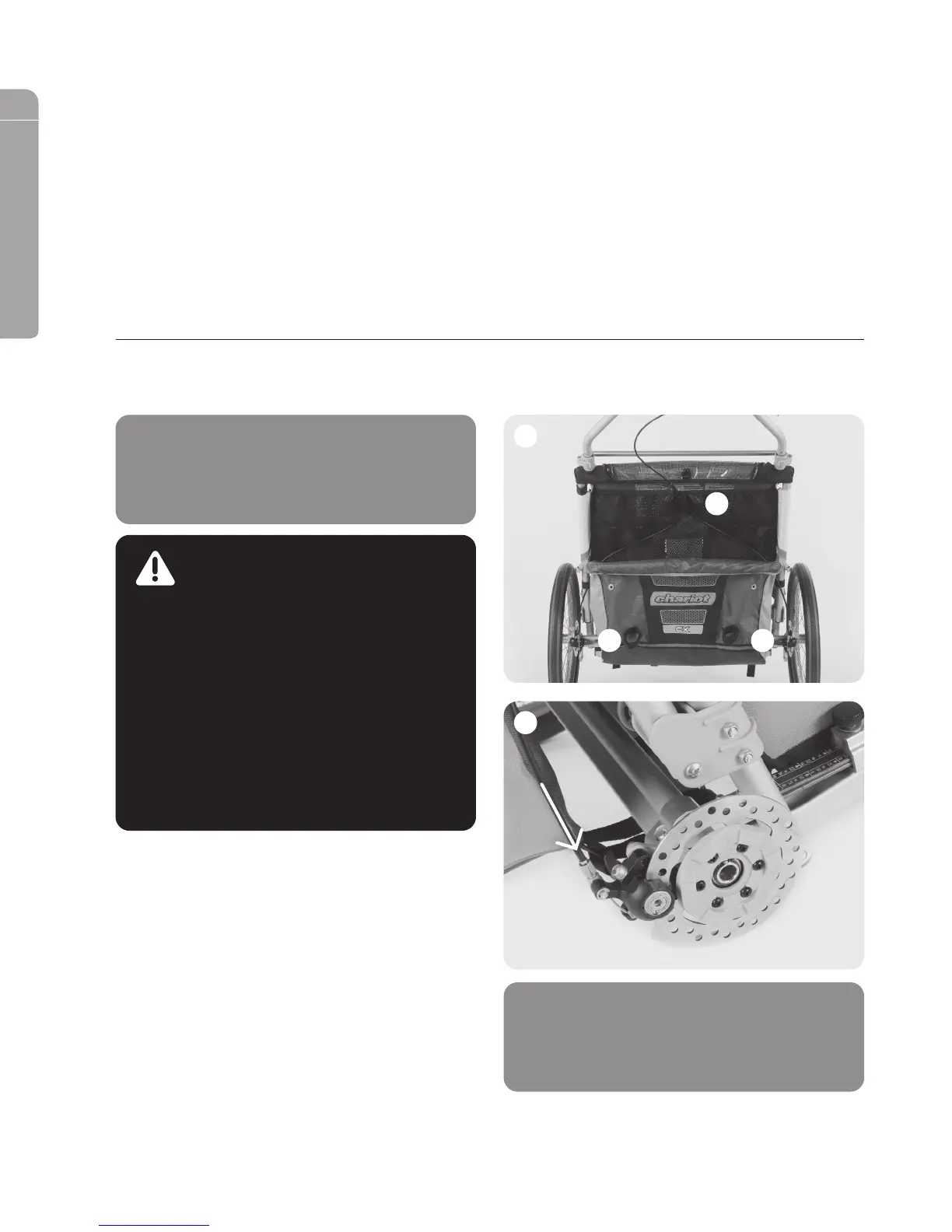

A. The brake system involves the use of 3 adjusting
screws: One on the cable splitter (S1) and one on each
of the disk brake calipers (S2 & S3). (See image 1)
B. Whenadjustingbrakesrstmakesurethatallbrake
cable end caps are properly located in the holes of the
adjusting screws. (See image 2)
C. If there is too much play in the brake lever unscrew the
locknut on S1 and adjust (unscrew) S1 until there is light
braking on at least one of the wheels without operating
the brake lever.
D. Screw S1 back in one full turn (clockwise)
E. Tighten the locknut without moving S1.
F. IfadjustmentofS1isnotsufcient,thenproceedwith
adjustment of S2 & S3.
USE & FEATURES
WARNING
Always ensure that the handlebar grip/ brake
lever assembly is securely fastened to the
handlebar.
Do not modify the brake system in any way.
Conversion and/or retrotting of the brake
system to other carriers is not permitted.
Do not touch the brake disk after a long period
of use, as the brake disks can become hot.
Always use the brake as intended. Follow
this Owner`s Manual and comply with the
prescribed maintenance requirements.
2
1
S1
S2 S3
NOTICE
We recommend that brake adjustments
be performed by your Authorized Chariot
Retailer.
NOTICE
Before using the brake system for the rst
time, acquaint yourself with its braking
effect in a safe place.
