Thunder Heart Performance Corp. 615-672-8811 www.thunder-heart.com
6 EI4250

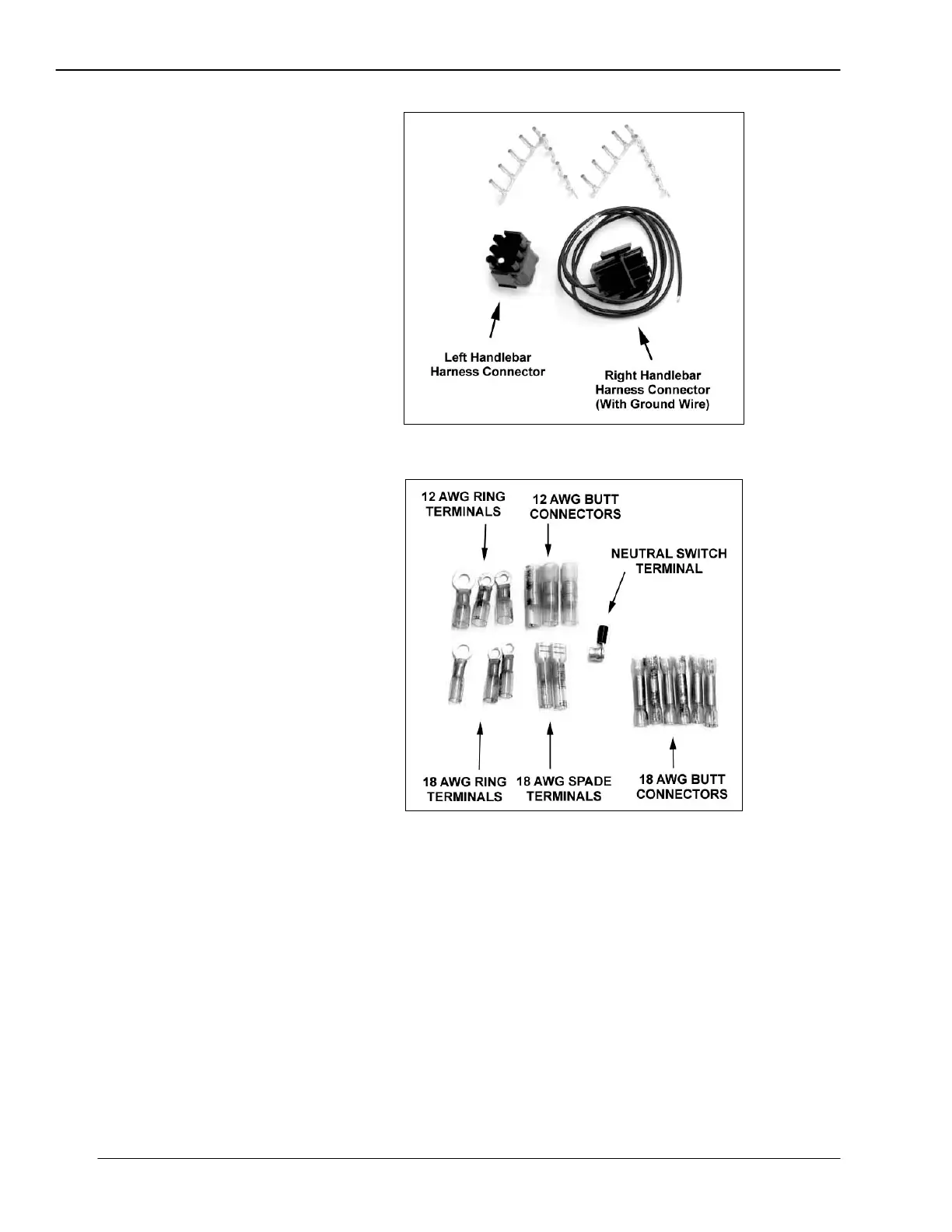

Figure 11—Handlebar Harness Connectors
Figure 12—Included Terminals
CHAPTER 2 SYSTEM INSTALLATION
2.1 Finding a Suitable Location for the Electronic
Harness Control Module
Split Tank Bikes
The Electronic Harness Controller (EHC) is designed to mount to the top
frame tube between the gas tanks. The black plastic mounting base is
molded to fit the tube radius and slotted to accept “zip tie” fasteners. The
EHC snaps onto the mounting base via three mounting tabs so that the
diagnostic instructions are visible with the dash removed.
