Thunder Heart Performance Corp. 615-672-8811 www.thunder-heart.com
EI4250
5
4. Insert the wire through the blue seal into the connector body until you
hear a “click.” Gently pull on the wire to ensure that the terminal is fully
engaged in the housing.
1.4 EHC Component Overview
Throughout this manual you will be referred to the various components of the
EHC system. Use the following figures to aid in component identification:

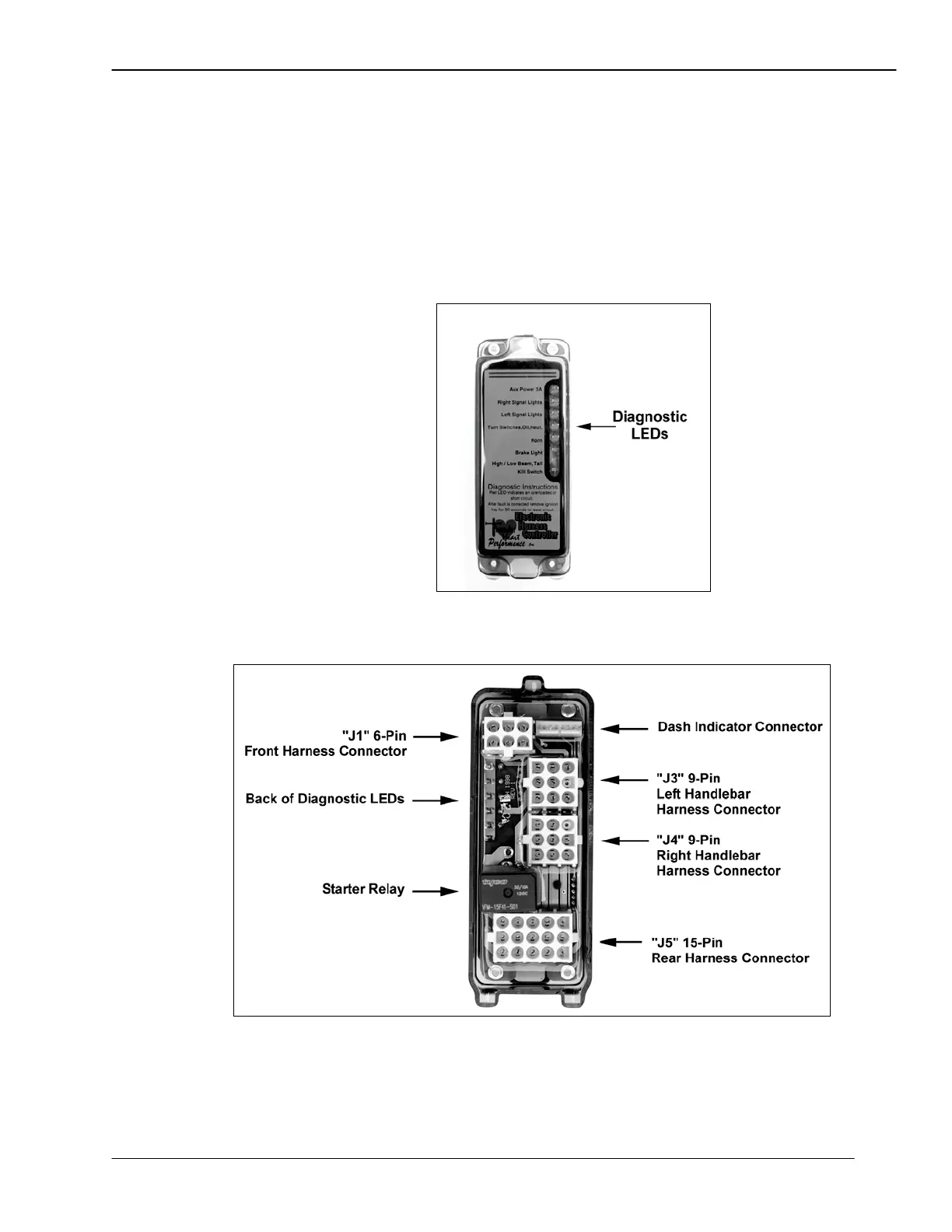

Figure 9—EHC Module Front Panel
Figure 10—EHC Module Rear Panel Components
