THUNDER TIGER 6542-F Maintenance Manual & Parts Catalogue

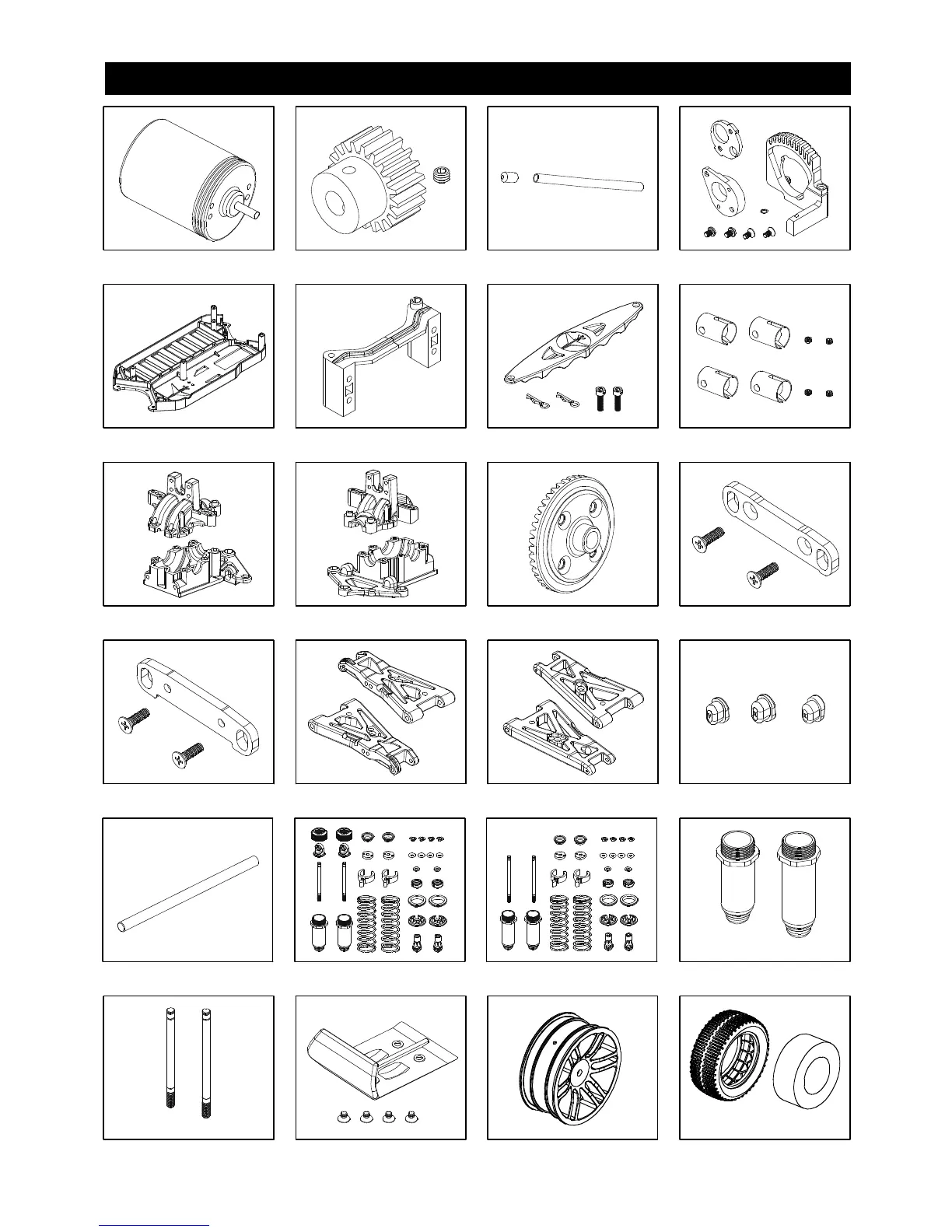

SPARROWHAWK XXB PARTS 零件表
22
x4 x8 x4
PD7034 MOTOR PINION GEAR,20T
馬達驅動齒，20T
2344 BL MOTOR IBL36/39-540C
無刷馬達
x4
x2
x2
x2
x2
(2)
(2)
PD7933 FRONT TIRE W/FOAM 33mm
前輪胎
(2)
PD7932 FRONT WHEEL 33mm(B)
前輪轂(黑色)
23
SPARROWHAWK XXB PARTS 零件表
x2
x2
x8
PD9107 STEER SERVO HORN SET
轉向拉桿後衝組
PD9178 DIFF GEAR SET
差速齒輪組
x8
PD9110 HXE ADAPTER SET
六角輪轂轉座組
x8 x8 x8
PD7937 BALL STUD SPACER
避震器球頭墊片
PD7954 METAL TURNBUCKLE SET
 金屬拉桿組
x4
x4
PD7935 REAR TIRE W/FOAM 43mm
後輪胎
(2)
PD7934 REAR WHEEL 43mm(B)
後輪轂(黑色)
24
SPARROWHAWK XXB PARTS 零件表
PD1532 M3x8B (20)
PD1533 M3x10B (20)
PD1534 M3x12B (20)
PD1535 M3x14B (20)
PD1536 M3x16B (20)
PD1595 M3x23B (20)
PD2488 M3x18B (20)
PD7339 M3x4B (20)
PD8205 M3x6B (20)
PD7441 d8xD14xW4 (4)
PD7466 d5xD11xW4 (10)
PD9129 d10xD15xW4 (4)
PD9130 d5xD8xW2.5 (4)
BALL BEARING
滾珠軸承
PD9219 DRIVE PINION GEAR,13T
差速小傘齒輪,13T
PD9224 MAIN GEAR,72T
傳動大齒輪,72T
E-CLIP
E型扣環
PD1244 M3B (10)
PD1562 M4 (20)
LOCK NUT
止鬆螺帽
PD0961 M3x3B (20)
PD0962 M4x3B (20)
PD1962 M3X4B (20)
WASHER
平墊圈
PD0973 4mm (20)
PD1199 3mm (20)
SET SCREW
無頭內六角螺絲
PD7475 M3x10B (20)
PD9185 M4x12N (10)
SK.H.M SCREW
內六角螺絲
BT P. TAP SCREW
圓頭墊圈十字螺絲
PD9133 M2x4B (20)
PD9186 M3x8B (20)
CTP. TAP SCREW
平頭墊圈十字螺絲
PD9131 M2.6x10 (20)
BODY CLIPS
R型插銷
PD0866 (10)
PD7193 (20)
BT.MACH. SCREW
半圓頭內六角螺絲
PD0668 M3x10 (20)
PD7942 M3x8B (20)
PD9183 ALUM MAIN DRIVE SHAFT
鋁合金中央轉動軸
PD9184 SWING POST SCREW
主齒輪固定座
PD9213 MAIN GEAR SHAFT
主傳動軸
PD9210 SLIPPER HUB SET
限滑夾片組
x2
PD9222 SLIPPER PAD SET
限滑來令片組
x4
PD9104 BALL STUD (10),LONG
 球頭座 (長)
x10
BT P.M. SCREW
圓頭十字螺絲
CT P.M.SCREW
平頭十字螺絲
PD1191 M3x8B (20)
PD1192 M3x10B (20)
PD7855 M25x6B (20)
PD7944 M3x5B (20)
PD9124 M25X12B (20)
PD9105 BALL STUD (5) SHORT
 球頭座 (短)
PD9202 SLIPPER CLUTCH SET
扭力限制組
PD9194 SHOCK CAP
避震器上固定頭
PD9270 MOTOR COVER
馬達防塵套
PD7712 ANTENNA BAG
天線套管
PD7837 MOTOR MOUNT
馬達固定座
PD7845 CHASSIS
車底盤
PD7846 SERVO MOUNT
伺服機座
PD7847 BATTERY BRACE
電池夾片
PD7864 OUTDRIVE CUPS
傳動軸套
PD7901 FRONT BULK SET
前差速箱上下蓋組
PD7902 REAR BULK SET
後差速箱上下蓋組
PD7905 DIFF SPUR GEAR 44T
差速大傘齒
PD7915 FRONT TOE PLATE
前投影板
PD7916 REAR TOE PLATE
後投影板
PD7917 FRONT SUSP. ARMS
前擺臂組
PD7918 REAR SUSP. ARMS
後擺臂組
PD7920 SUSP. ARM MOUNT BUSHING
前避震器組
PD7921 INNER HINGE PIN SET
擺臂插銷
PD7924-T FRONT SHOCK SET
前避震器組
PD7925-T REAR SHOCK SET
後避震器組
PD7926 SHOCK BODY SET
避震器套筒
PD7927 SHOCK SHAFT
避震器軸
PD7931 BUMPER
前防撞板
PD7936-1 SHOCK TOWER SET
避震器支架
PD7938 REAR WING MOUNT
 尾翼支架
PD7947 SHOCK BLADDER
 空氣活門
PD7962-R SHOCK SPRING(R)
 避震器彈簧組
PD9078 CASTER BLOCK SET
C型座組
PD9080 OUTER HINGE PIN SET
軸承針組
PD9082 SUSP. ARM MOUNT BUSHING
後擺臂軸套
PD9086 SWING RACK SET
轉向曲柄組
PD9087 SWING POST SCREW
轉向軸
PD9090 HUB CARRIER SET
後輪座
PD9102 SHOCK ACCESSORIES, MMGT
避震器配件
PD9103 SHOCK EYELET, TA
避震器球頭拉桿
PD9179 DRIVE PINION SET 13T
差速小傘齒
PD9180 FRONT UNIVERSAL SHAFT
前傳動軸
PD9182 TOP PLATE
二樓板
PD9181 REAR UNIVERSAL SHAFT
後傳動軸
BT P.T SCREW w/WASHER
墊圈自攻螺絲
PD9051 DIFFERENTIAL CASE
 差速器本體
PD7998 BULK LOWER COVER
 差速箱下蓋板
PD8098 SHOCK PISTON SET
 避震器活塞
PD9077 STEERING BLOCK SET
 轉向臂
