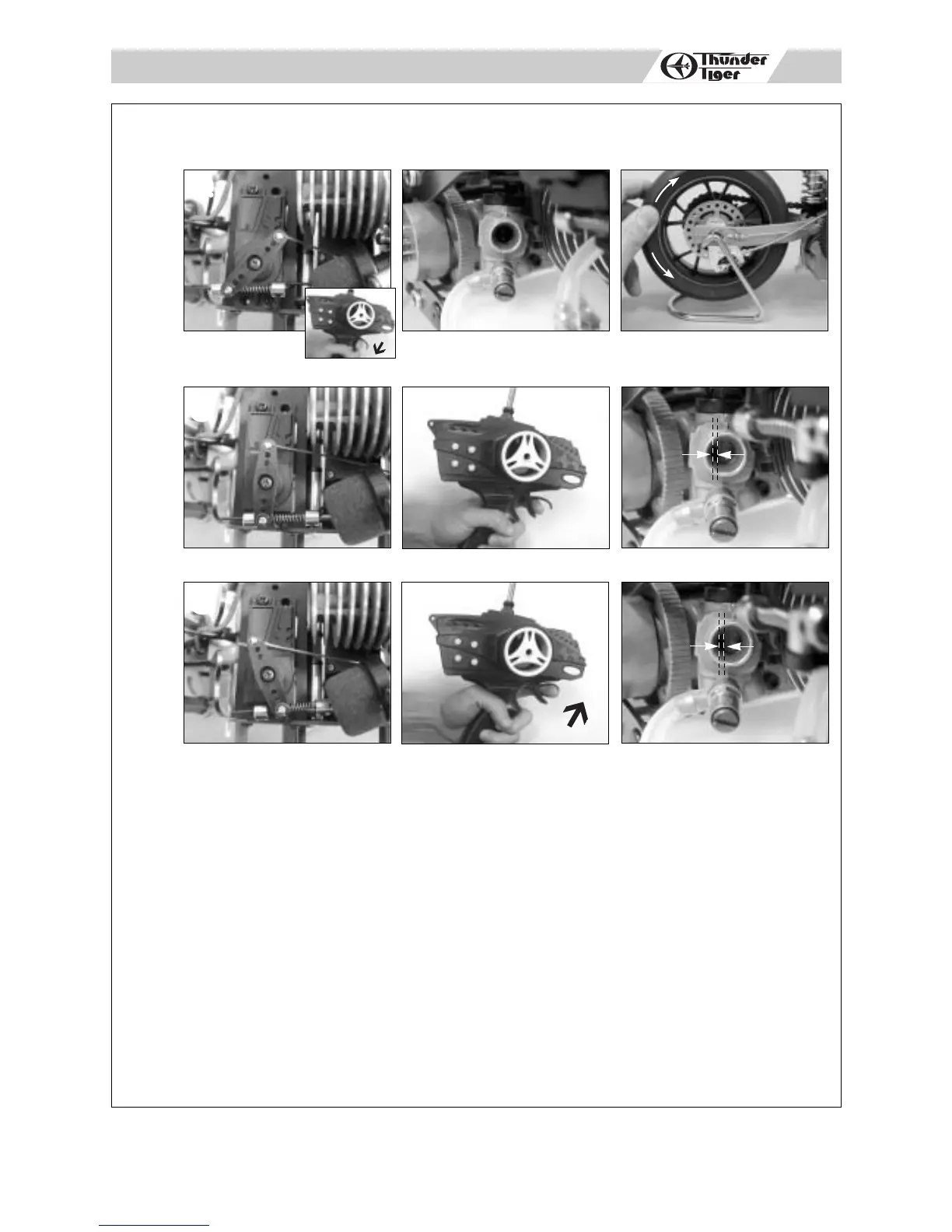

OPERATING RADIO - THROTTLE/BRAKE FUNCTION
a. Check the radio throttle/brake functions. With the radio transmitter and receiver on, pull the
trigger/push the stick forward. The carburetor should be fully opened and the brake disengaged.
To check the brake is not engaged, simply spin the wheel whilst pulling the trigger/pushing the
stick forward. To reverse this function, flip the throttle/brake servo reverse switch.
b. Return the trigger/stick to neutral. The carburetor should be closed to a point where the idle has
been set (see step for ADJUSTING THROTTLE/BRAKE LINKAGE), and the brake still
disengaged. If not, use the throttle/brake trim lever to correct it.
c. Push the trigger/pull the stick backward. The carburetor opening should still be the same at
neutral, throttle spring compressed slightly, and the brake engaged.
aa
cc
bb
about 1mm
about 1mm
