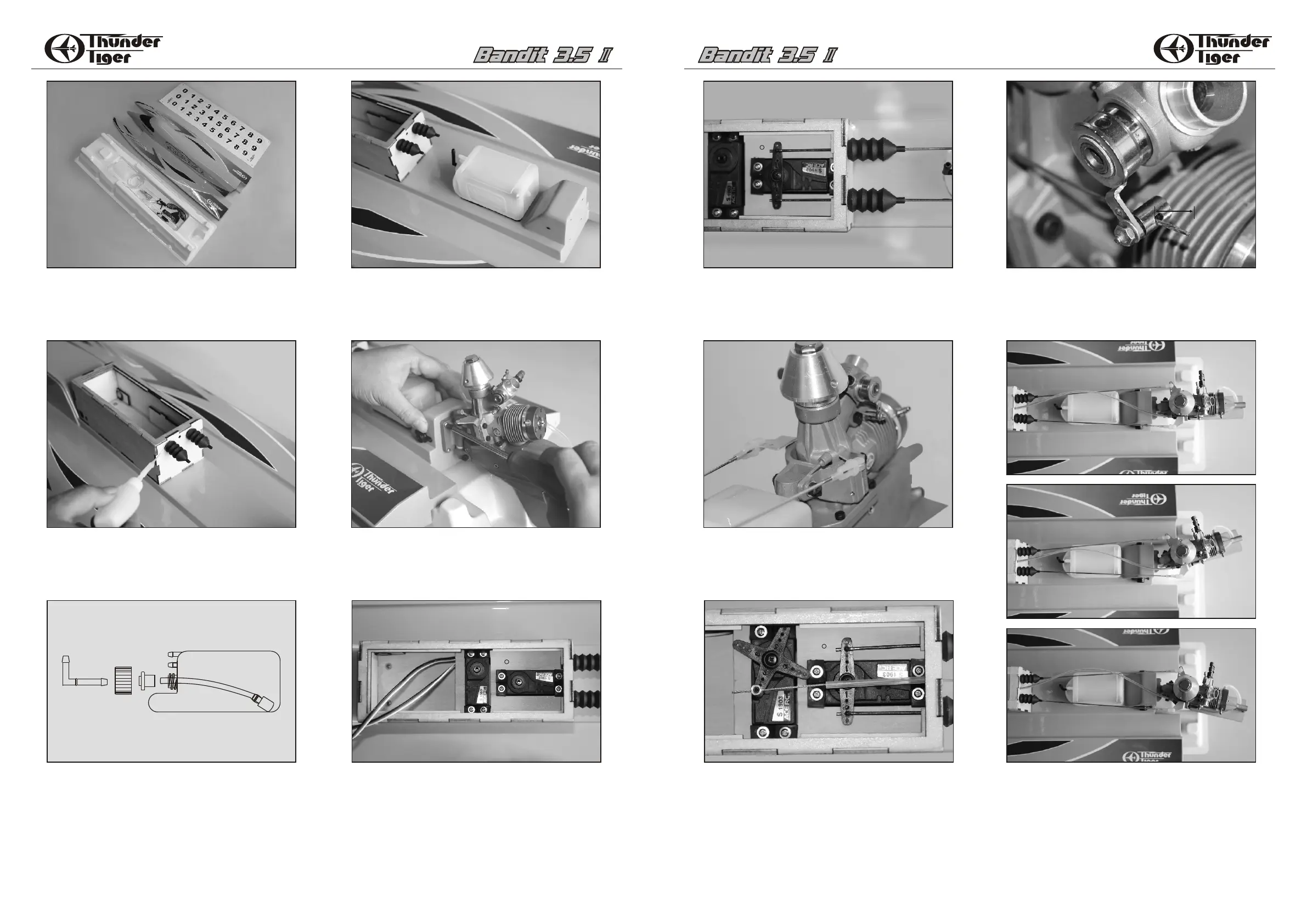

2. Insert the waterproof seal in place then carefully
apply CA glue around the seal and secure it in place.
1. Carefully remove your Bandit 3.5 and stand from
the box. Locate all enclosed parts from the box. You
may put small parts in the display stand.
4. Use rubbing alcohol to clean the contact area of
fuel tank then secure the fuel tank in place with
double side tape.
3. Get fuel tank accessories and assemble the fuel
tank as shown.
7. Thread the steering wire from inside radio box
through the waterproof seal. Thread the other Z-
bend end to the servo arm then secure the arm with
the screw when servo is in neutral position.
76
6. Install standard servos with rubber grommets and
eyelets in place as shown. As radio box is small, it is
suggested to secure the servo in servo tray first
then glue the whole servo tray in place. Note: A mark
on servo tray should face up.
5. The engine mounting holes are pre-drill in factory
to fit Thunder Tiger outboard marine engine. Apply
epoxy in the hole then secure the engine with four
3x20mm Self-Tapping screws on the transom.
8. Thread the clevis onto the wire and snap to the
outboard engine steering arm. Adjust the clevis and
make sure the engine is centered. Cut a piece of
fuel tube to help secure the clevis as shown.
9. Locate throttle wire and guide tube, insert the
guide tube(measure it at 27 cm) into radio box case
and leave about 5cm in length in the box. Thread
the other end to the outboard engine cable housing.
You may need to sharpen the tube end for easy
access.
11. Insert the wire and secure the wire with 3x3mm
set screws on EZ connector. Adjust the throttle wire
and make sure the guide tube is curvy as illustration
shown. Note: outboard engine steers by physically
pivoting from side to side. Make sure throttle control
is smooth. Cut away the excess wire.
10mm
10.
You may need to enlarge the
throttle lever hole for EZ connector. Use loctite to
secure the M2 nut from loosening.
Install the EZ connectors both on engine throttle
lever and servo horn.
