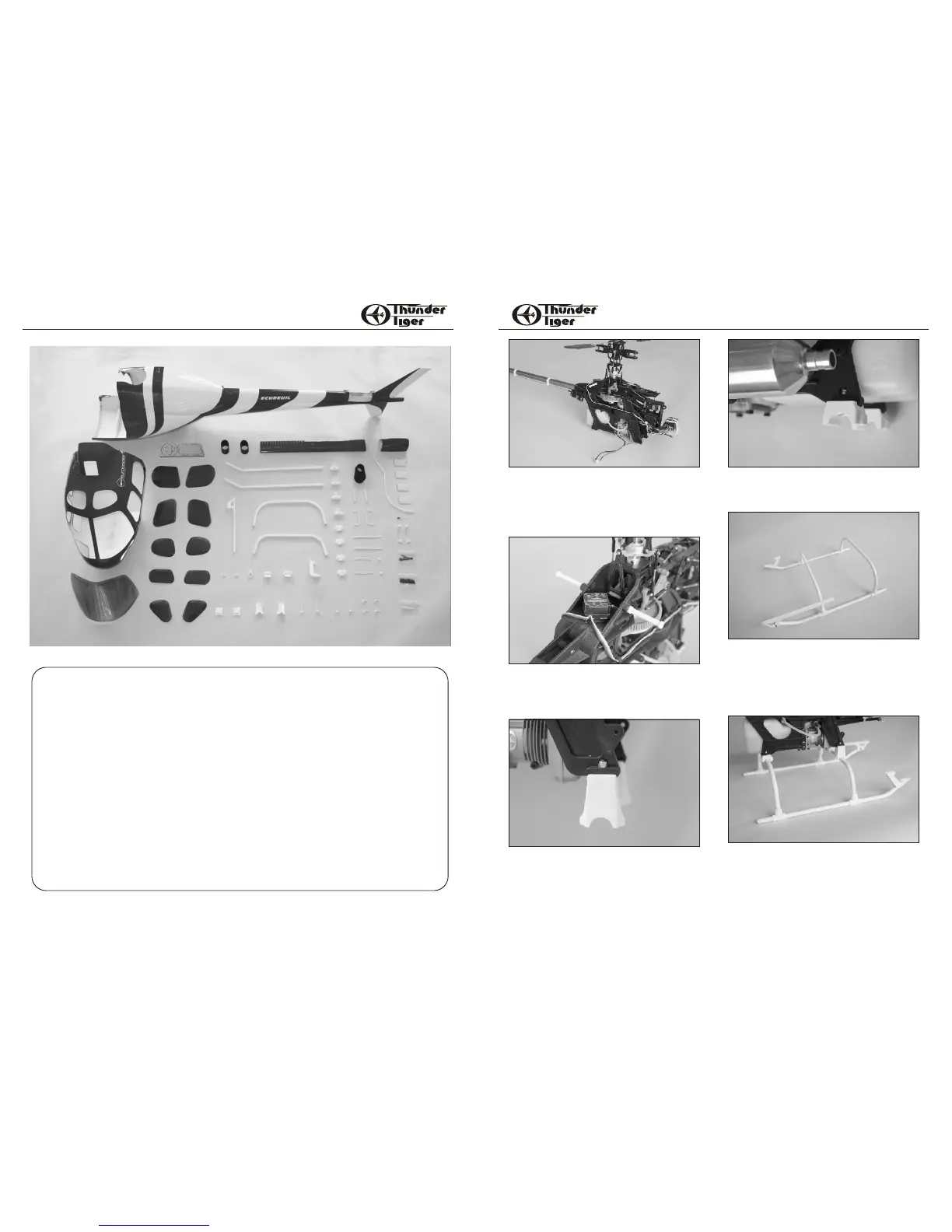

1. Test flight your Raptor before the assembly. Once
done the testing and adjusting your Raptor, remove the
canopy, landing skid, tail fins, boom supports and tail
rotor assembly.
2.Replace the new body posts
3. Locate the front skid adaptor then secure the front
skid adaptor in place with 3x30mm socket screw and M3
locknut.
4.Same way to secure the rear skid adaptor in place with
3x14mm socket screw and M3 locknut.
5. Temporally assemble the landing skid as shown.
Remember to install the bar retainer on left front brace.
Install the foot step at right skid front end with 3x4mm
set screw. Install the foot bar at left skid front end with
3x15mm screw and M3 locknut. Adjust the bar
retainer so the foot bar is parallel with the skid then
secure the bar retainer with 3x4mm setscrew. Insert
the skid cap at the rear end of skid.
6. Let Raptor sit on the landing skid. Before you
secure the joiners make sure the skids and joiners are
adjusted properly. Secure the joint in place with
3x4mm setscrews. Hint: Do not over-tighten the
setscrews on the joiner.
Fuselage
Front Fuselage (1)
Rear Fuselage (1)
Horizontal Tail (1)
Tail Transmission Case Cover (1)
Exhaust Pipe (2)
Battery Tray (1)
Plywood (16)
Rudder Band (2)
2x8mm Wood Screw (16)
3x23mm Socket Screw (2)
Windshield
Front windshield (1)
Front Window (L/1,R/1)
Sunroof (L/1,R/1)
Rear Window (L/1,R/1)
Bottom Window (L/1,R/1)
Front Lower Window (L/1,R/1)
Air Inlet (L/1,R/1)
2x5mm Wood Screw (52)
Landing Skid
Step Ladder (1)
Skid Pipe End Cap (2)
Skid Adaptor (F,2)
Skid Adaptor (F,2)
Front Mounting Strip (2)
Rear Mounting Strip (L/1,R/1)
Skid Joiner (4)
Foam Tape (8)
Step Bar Retainer (1)
Step Bar (1)
Brace A (1)
Brace B (1)
Skid Pipe (2)
M3 Locknut (5)
3x4mm Setscrew (10)
2x5mm Wood Screw (1)
3x15mm Screw (1)
3x15mm Self-Tapping Screw (4)
3x20mm Self-Tapping Screw (4)
3x14mm Socket Screw (2)
3x30mm Socket Screw (2)
Decoration Set
Wiper (2)
Wiper Strut (2)
Wiper Mount (2)
Retaining Collar (18)
L/F Antenna (2)
Pitot Tube (2)
Handlebar (4)
LED (1)
H/F Antenna (4)
2.3X12mm Washer Wood Screw (1)
Tail Skid (1)
2x6mm Screw (2)
M2 Nut (2)
Foam Retainer
Tail Boom Foam Retainer (1)
Plastic Tube (1)
Retaining Set
Post (2)
Silicon Grommet (2)
3x10mm Washer Wood Screw (2)
Kit Contents
76
PARTS CHECK LIST
ECUREUIL AS355ECUREUIL AS355
