THUNDER TIGER KAISER e-MTA 6411-F User Manual

A
B
C
ABC
A
B
C
CH2 ESC速控器
CH1 Steering 轉向
ON/OFF
Switch
速控器開關
Servo
伺服機
Motor
馬達
Sound Box
發聲器
ESC
速控器
ESC
BATTERY
Sound Box
Pass cord through the holes
將導線穿過定位孔
A. ∅15.4mm x 0.6t
B.
∅16.6mm x 0.6t
C.
∅17.8mm x 0.6t
Warning! The Deans connector of the sound box must be connected to the negative
of the battery. Fail to do so will cause short circuit.
發聲組T插頭需從負極出線插頭取電，如接錯將造成短路，請注意！
PD1525
servo saver
伺服機緩衝組
PD1035
Ｍ3x10mm
PD1035
Ｍ3x10mm
PD1035
Ｍ3x10mm
PD0670
Ｍ3x14mm
PD0971
Lock Nut M3
Servo
轉向伺服機

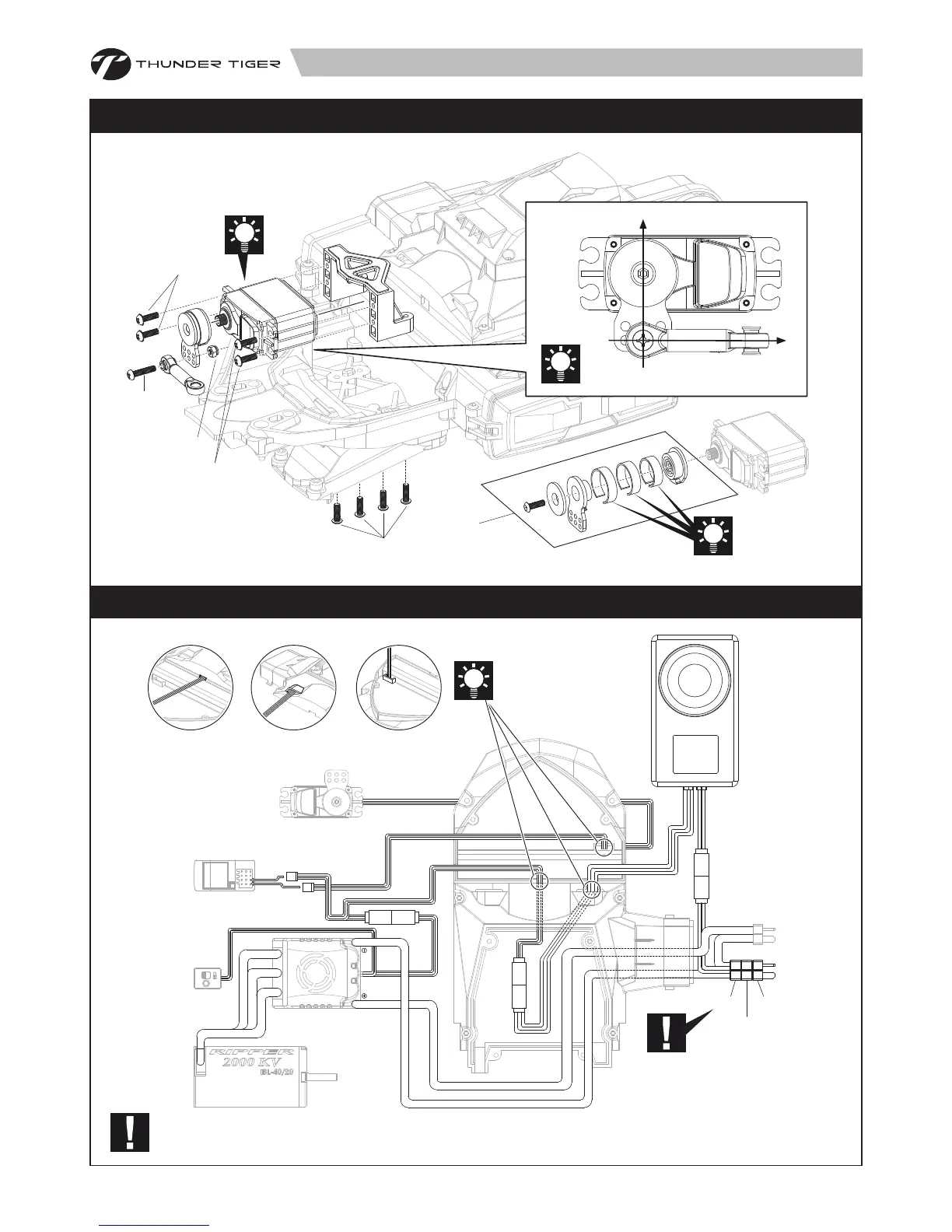

Engine Sound Box Wire Routing
發聲器連接路徑
-15-
Vertical 垂直
