THUNDER TIGER KAISER e-MTA 6411-F - Center Drive Gear Assembly 中央傳動齒組裝

THUNDER TIGER KAISER e-MTA 6411-F
48 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
-25-

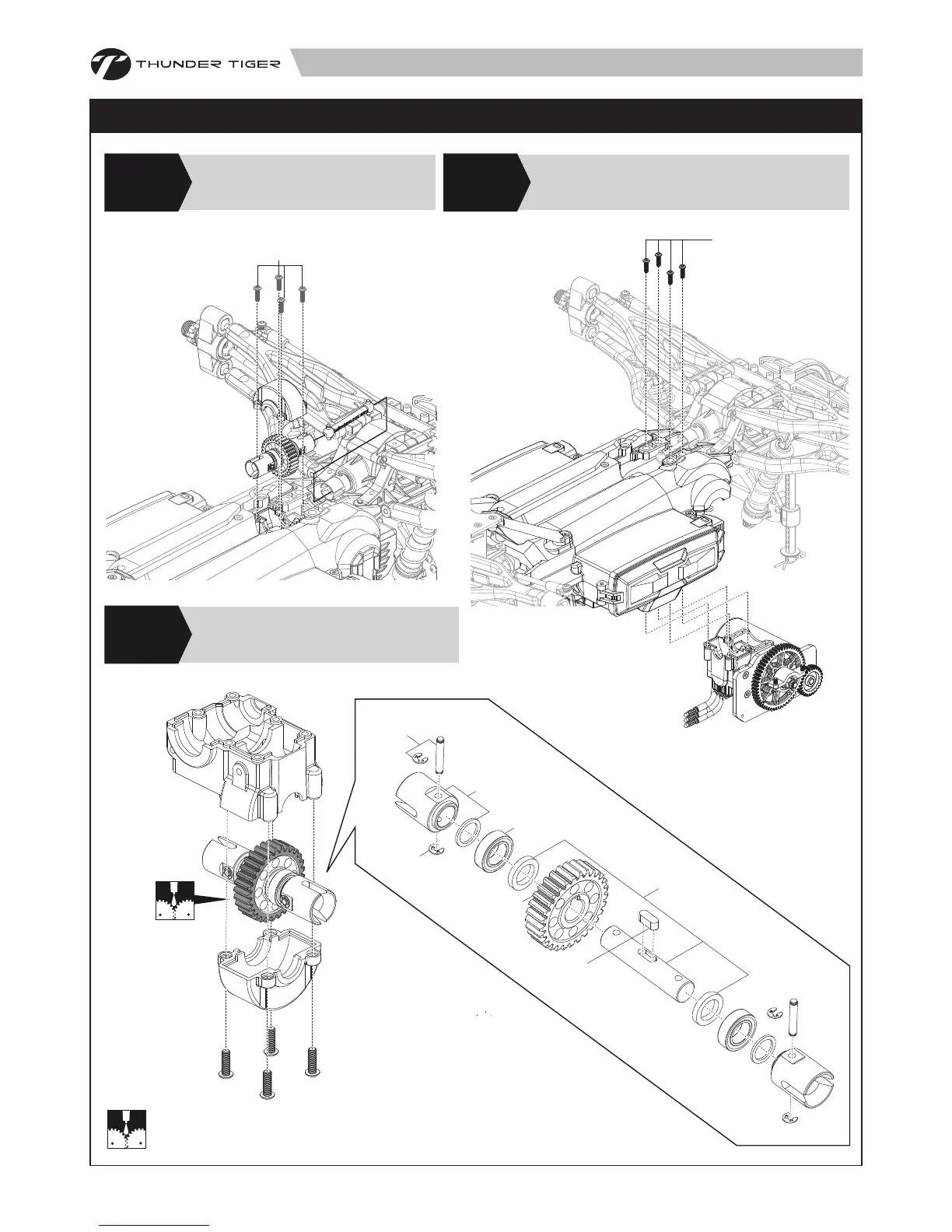

STEP4
Take off the center drive gear
取下中央傳動組
STEP5
Take off the transmission case & motor
mount 取下齒輪組及馬達固定座
PD1035
M3x10mm
Center Drive Gear Assembly
中央傳動齒組裝
PD0669
M3x12mm
PD05-0026
PD05-0025
PD0976
PD7441
PD02-0025
PD05-0032
PD10-0047
Apply grease
使用潤滑油膏(黃油)
STEP6
Center drive gear maintenance
中央傳動齒維修
