-26-

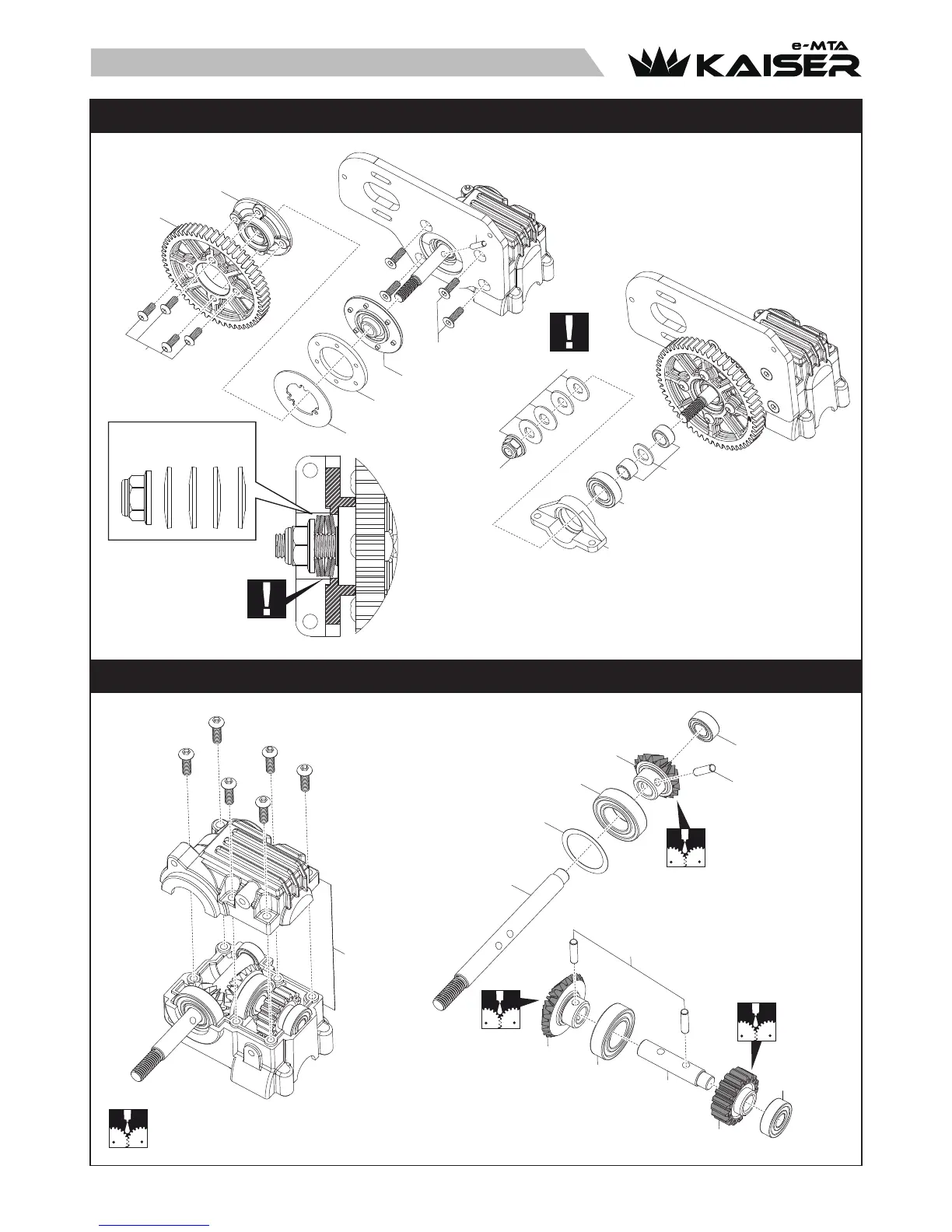

Transmission Assembly
齒輪箱組裝
Apply grease
使用潤滑油膏(黃油)
PD1035
M3x10mm
PD02-0030
PD05-0030
PD05-0031
PD05-0027
PD05-0027
PD02-0024
PD02-0025
PD02-0024
PD1969
PD1969
PD1968
PD9318
PD9321
Slipper Clutch Maintenance
限滑器維修
PD7216
SLIPPER HARDWARE
滑動套件
Note the orientation of
the washers
注意盤型墊圈組裝方向
PD2433
Lock Nut M5
PD0678
M3x10mm
PD0678
M3x10mm
PD1036
M3x8mm
PD1571
PD02-0029
PD7216
PD7216
PD7218
PD02-0022
PD02-0027
PD05-0027
PD7219
PD7220
