THUNDER TIGER Tomahawk User Manual

Pay close attention here
注意組裝步驟
Must be purchased separately
改裝品需另購
Pay close attention here
注意組裝步驟
Pay close attention here
注意組裝步驟
Cut off excess
裁剪多餘部分
15 16
17 18 19 20
STEP10
Radio Box 電池盒
STEP10
Radio Box 電池盒
Battery Holder
電池盒
Black to Black
Red to Red
黑對黑、紅對紅
Batteries are not included in the kit
此套件不含電池
Thread antenna cord through the tubing.
將天線穿過套管並套上黑色護套
Antenna
天線
Body Clip
R型插銷
2
Hint
組裝提示
STEP11
Installation of Rear End 結合後擺臂懸吊組
3x10mm
F/H Philip Machine Screw
平頭十字螺絲
M3 Lock Nut
止鬆螺帽
〈Rear Suspension〉
〈將後擺臂懸吊組結合於底板上〉
3
3
STEP12
3x8mm
F/H Philip Machine Screw
平頭十字螺絲
6
STEP12
Installation of Radio Box結合電池盒
3x10mm
F/H Philip Machine Screw
平頭十字螺絲
6
〈Radio & Servo Tray Unit〉
〈將電池盒結合於底板上〉
STEP12
Installation of Rear Brace 結合後補強版
3x8mm
BT Philip Machine Screw
圓頭十字螺絲
3x18mm
BT Philip Machine Screw
圓頭十字螺絲
〈Rear Chassis Brace〉
〈將後補強版結合於後懸吊組與電池盒上〉
2
2
〈Front Suspension〉
〈將前擺臂懸吊組結合於底板上〉

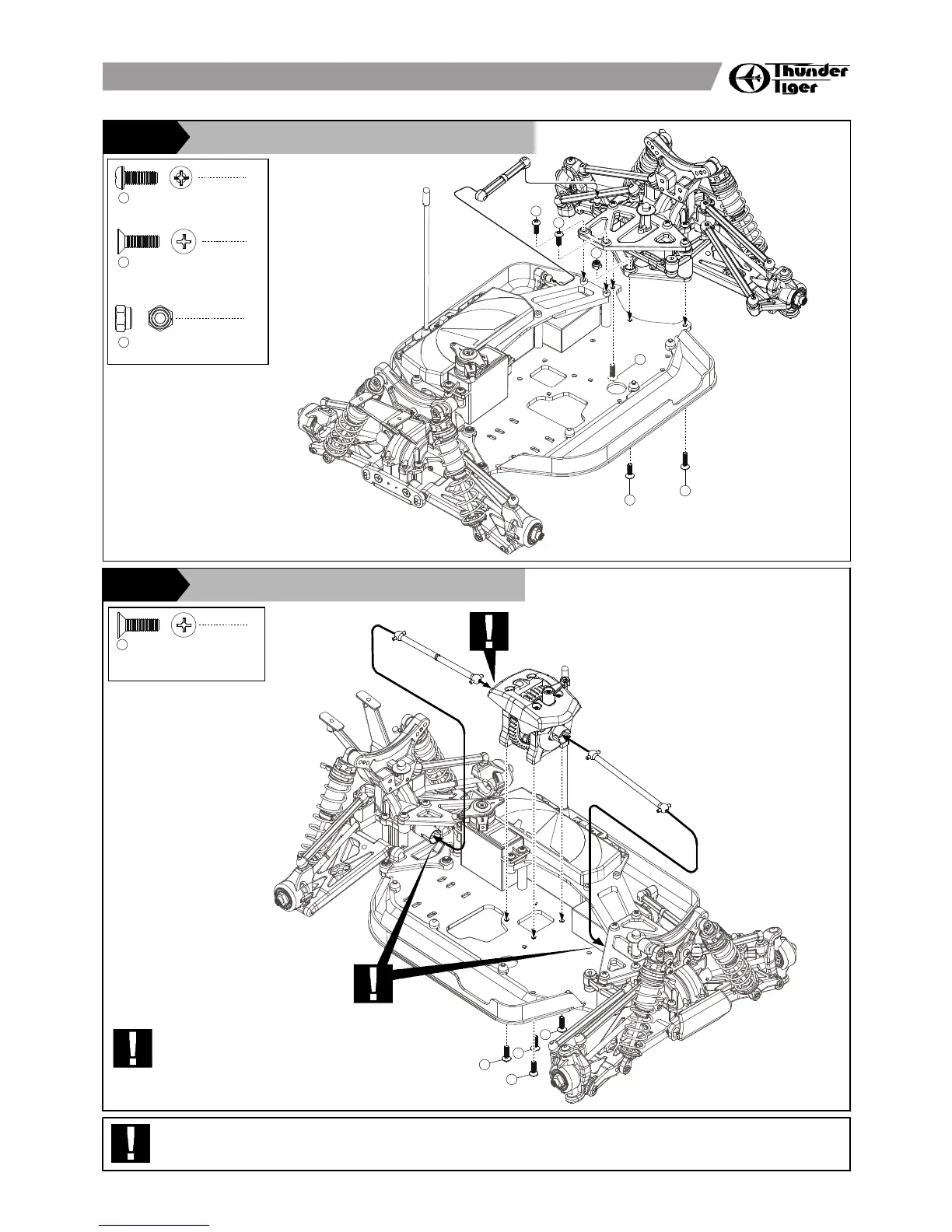

STEP13
Installation of Front End 結合前擺臂懸吊組
M3 Lock Nut
止鬆螺帽
3x8mm
BT Philip Machine Screw
圓頭十字螺絲
3x10 mm
F/H Philip Machine Screw
平頭十字螺絲
2
3
1
3
2
1
STEP14
Installation of Center Unit 結合中央驅動組
3x10mm
F/H Philip Machine Screw
平頭十字螺絲
4
1
Check O-ring Inside
請先確認內部O型環已置入
STEP15
Installation of Fuel Tank 結合油箱
3x10mm
F/H Philip Machine Screw
平頭十字螺絲
3
2.9x1.8mm
O-Ring
O型環
3
1
3x6mm
BT Philip Machine Screw
圓頭十字螺絲
Tube Clip
油管夾
STEP16
Engine Set 引擎與離合器罩
5x8x2.5mm
Ball Bearing
軸承
3mm
Washer
墊圈
2
1
3mm
Spring Washer
彈簧墊圈
5x8mm
Washer
鋼迫緊板
6
1
3x6mm
Socket Hex Machine Screw
內六角固定螺絲
3x28mm
Socket Hex Machine Screw
內六角固定螺絲
3x10mm
Socket Hex Machine Screw
內六角固定螺絲
1
4
2
STEP16
Installation of Engine Set 引擎安裝
3x8mm
BT Machine Screw
圓頭十字螺絲
4
Tighten the screws with one sheet of paper inserted
between both gears.
使用紙片調整主齒與驅動齒之間的間隙至適中位置。
STEP17
Muffler & Fuel Tube 消音器與油管
3x10mm
F/H Philip Machine Screw
平頭十字螺絲
M3 Lock Nut
止鬆螺帽
1
1
Cut the silicone tube to 265mm length
for the fuel tube.
將油管裁切成265mm之長度做為輸油管
Cut the silicone tube to 195mm length
for the pressure tube.
將油管裁切成195mm之長度做為回壓管
Pass tube through tube clip. Squeeze
the end of pressure tube into the hole in
the tuned pipe about 10mm.
將油管固定於油管夾上並將回壓管塞入
排氣管回壓接孔內約10mm後固定
Pressure Tube 回壓管
Tube clip 油管夾
Hint
組裝提示
10mm
Engine Assembly
引擎組立圖
Installation of Side Guard 結合側邊護板
1
1
3
2
2
2
Fuel Tube 輸油管
Pressure Tube 回壓管
1
1
1
1
2
4x4mm
Set Screw
內六角螺絲
3
