STEP4
Front Suspension 前擺臂懸吊組
6mm
Ball Stud
球頭座
10x15x4mm
Ball Bearing
軸承
3x12mm
BT Machine Screw
圓頭十字螺絲
Caster Block Bushing
C型輪座
In the chassis set, these dog bones have been assembled in one-piece unit.
原廠已組配完成
Marked "L"
標示 "L"
4
2
4
4
4
3
2
1
1
4
3
2
4
1
3
Apply grease
使用潤滑油膏(黃油)
1 2
Maintenance Manual & Parts Catalogue
The contents are subject to change without prior notice due to product improvements and specificatrion changes.
Introduction
前言
Thank you for purchasing this Thunder Tiger product. This manual contains the steps and instructions required to assemble
your car. Please read this manual completely before attempting to start maintenance. Follow the directions in this manual closely
to reduce problems during operation. We offer online help on our www.acehobby.com or www.thundertiger.com and forums
and our product specialists are ready to take your call if you have any technical questions. Have fun and enjoy the exciting world
of R/C.
感謝您購買雷虎科技TOMAHAWK BX引擎四驅越野車。雷虎科技一向以提供最高品質的產品及服務作為持續努力的目標，並藉由參與競賽及重覆
測試產品，不斷累積經驗，進而提昇設計及製造品質，期望能呈現給您最頂級之工藝產品。本使用說明書包含了組裝及維修本產品前所需注意的
重要事項，建議您在開始組裝及維修本產品之前，能詳閱此說明書，並熟悉本產品之組裝步驟及維修程序。若是您在產品的使用上有任何的疑
問，歡迎多加利用我們所提供的24小時諮詢留言版或洽詢雷虎科技授權經銷商。雷虎科技的全球英文網址為www.thundertiger.com中文網址為www.
tiger.com.tw，我們將竭誠為您服務！
Under Safety Precautions 安全注意事項
Please read all of the instructions and familiarize yourself with the product and its controls before operation.
1. This product is not a toy. It is a high performance model car therefore it is important to familiarize yourself with the model,
its manual, and its construction before assembly or operation. Adult supervision is necessary for children operating this
model.
2. Always keep this instruction manual on hand during assembly and for operating reference.
3. Do not use a power screwdriver to install screws into plastic parts. A power screwdriver’s high rotation speed can heat
up the screw being installed which can result in some melting of the plastic parts or stripped threads.
4. For best performance, it is important to make sure all the moving parts can move freely without binding.
5. This product, its parts, and its assembly tools can be harmful to your health. Always exercise extreme caution when
assembling and operating this product. Keep away from any high speed rotating parts during operation.
感謝您購買雷虎科技產品，在您開始操作本產品前，請詳閱本產品說明書。
1.
本產品為高性能模型產品非一般玩具，組裝與操作過程皆須由成人陪同。請詳讀此本使用說明書，避免因組裝錯誤與操作不當造成損壞。
2.
請妥善保管此說明書，對於後續維修、操控說明將可提供您協助。
3. 請勿使用電動工具旋緊自攻螺絲於塑膠零件上，可能導致塑膠零件融化或滑牙。
4.
請檢視所有活動部位零件是否不受干涉，可靈活作動，以達到車輛最佳性能。
5.
此項產品具有相當之危險性，於組裝、調整、操控上的不熟悉都可能造成自身或他人的傷害，當發生這些傷害事件時製造商是可以免除責
任的，建議您於初次使用本產品前，先行請教具有相當程度經驗同好或是專業雷虎經銷商與模型專賣店。
Index 索引
Manual Format
Tools Included
內附工具
Hex Wrenches
1.5 / 2.0 / 2.5 / 3.0mm
六角板手組
Tools Required For Assembly
組裝維修工具
Philips Screwdrivers
(L/M/S)
十字起子
Needle Nose Pliers
尖嘴鉗
Hobby Knife
模型用切割刀
Wire Cutter
斜口剪
Lexan Body Curved Scissor
車殼專用剪
Ruler
尺
Super Glue
(CA Glue)
快乾膠
Grease
潤滑油膏（黃油）
Thread Locking Adhesive
(Threadlocker)
螺絲防鬆膠
Example 說明範例
Symbols Used Throughout The Manual
oil
C.A
x2
L
R
1
2
3
Hint
組裝提示
x
維修說明書及零件包型錄
1/10 SCALE NITRO POWERED 4WD OFF-ROAD BUGGY SERIES
1:10
引擎動力四驅越野車系
本套件所附之零件可能跟圖示有所差異。因產品後續之設計研發或功能不斷改善之原因，我們將保留產品規格變更權力，不再另行通知使用者。
This radio control model car is not a toy! Before beginning assembly, please read this manual thoroughly.
本產品為高性能模型非一般玩具，組裝與操作前請詳閱本產品說明書。
Indicates the assembly step number and the
parts that are to be assembled.
Displays actual size drawings, and part
quantities used.
All parts, except screws, are identified by its
order numbers. When purchasing spare parts,
identify the part required and cross reference
this to the spare parts list in the end of this
maunal, which shows the purchasable spare
parts and the corresponding order numbers.
This instruction manual uses several symbols.
Pay careful attention to them during
construction. Details are given at the bottom
of each page.
顯示組立步驟及需組立之零件部位
零件實際對照尺寸及使用數量
請比對零件形狀以及後附零件料號對照圖示找
出需求零件料號
操作說明符號可更有效協助組裝者使用此說明
書，請依說明書符號指示進行組裝步驟
A:
B:
C:
D:
A:
B:
C:
D:
說明書使用方式
符號說明
A
B
C
C
D
說明書導讀
No.6195-F
CA
Manual Format 說明書使用方式
Symbols Used Throughout The Manual 符號說明

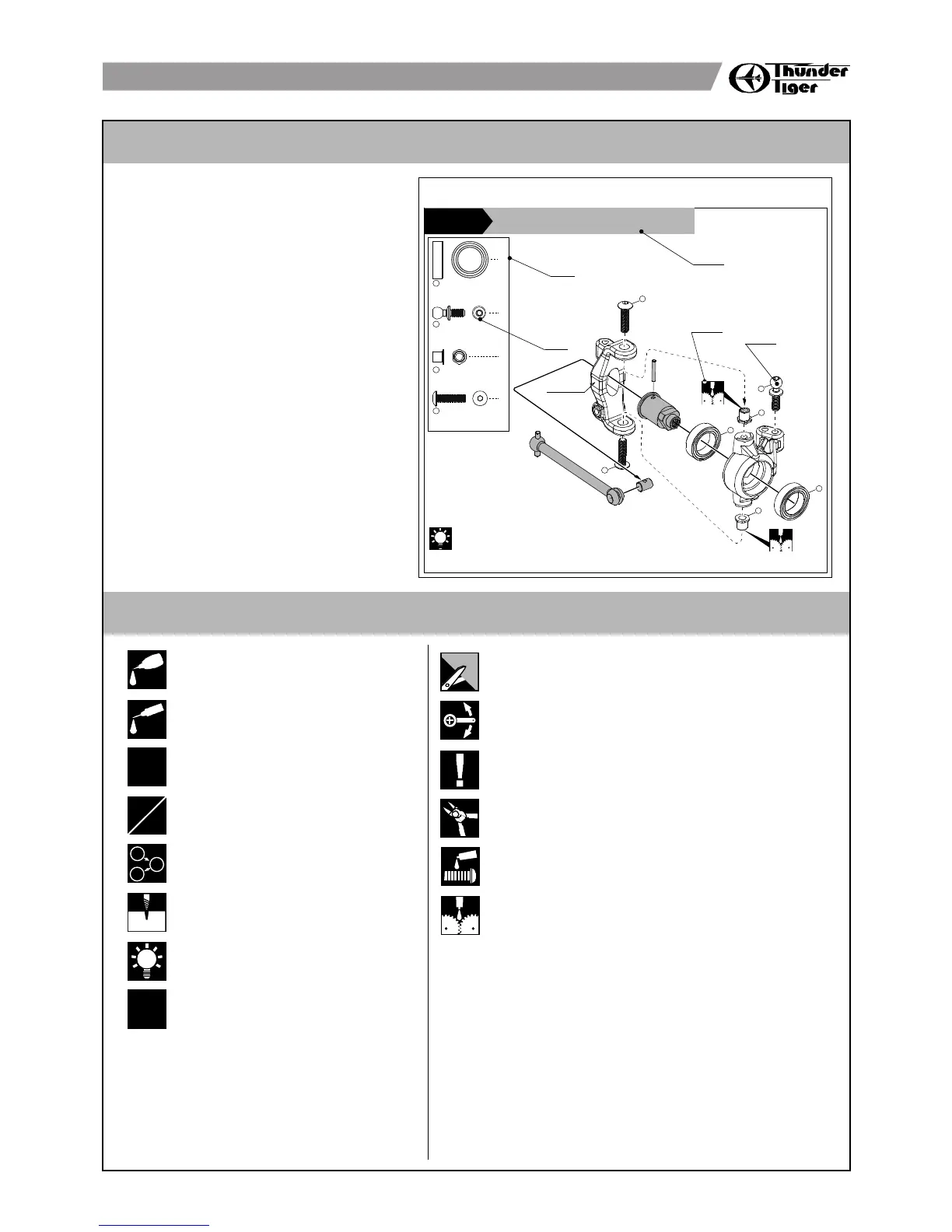

STEP1
Front Differential 前差速組 / Rear Differential 後差速組
STEP2
Spur Gear Shaft 驅動直軸
STEP3
Front Axle 前驅軸 / Rear Axle 後驅軸
STEP4
Front Suspension 前擺臂懸吊組
STEP5
Rear Differential Unit 後差速箱
STEP6
Rear Suspension 後擺臂懸吊組
STEP7
Shock Absorber 避震器組
STEP8
Steering Bellcrank 轉向曲柄組
STEP9
Steering Servo 轉向伺服機 / Throttle/Brake Control Servo 油門/煞車伺服機
STEP10
Radio Box 電池盒
STEP11
Installation of Rear End 結合後擺臂懸吊組
STEP12
Installation of Side Guard 結合側邊護板
STEP13
Installation of Front End 結合前擺臂懸吊組
STEP14
Installation of Center Unit 結合中央驅動組
STEP15
Installation of Fuel Tank 結合油箱
STEP16
Engine Set 引擎與離合器罩
STEP17
Muffler & Fuel Tube 消音器與油管
STEP18
Throttle/Brake Linkage 伺服機油門/煞車連桿
STEP19
Tire/Wheels 輪胎及輪轂
STEP20
Fuel Filter Set 安裝空氣濾清器
STEP21
Rear Wing 安裝後尾翼
STEP22
Tire / Wheels 輪胎及輪轂
STEP23
Body Shell 車殼
TOMAHAWK EXPLODED VIEW 爆炸圖檢索
TOMAHAWK BX PART LIST 零件表及圖示
TOMAHAWK BX OPTION PART LIST 改裝零件表及圖示
P.2
P.2
P.3
P.3
P.4
P.5
P.8
P.8
P.10
P.12
P.13
P.14
P.16
P.16
P.18
P.18
P.19
P.19
P.20
P.21
P.21
P.22
P.22
P.23
P.23
P.24
P.28
P.34
4-Way Cross Wrench
十字套筒
To Next Page
