INSTALLATION
Installaion and Operation

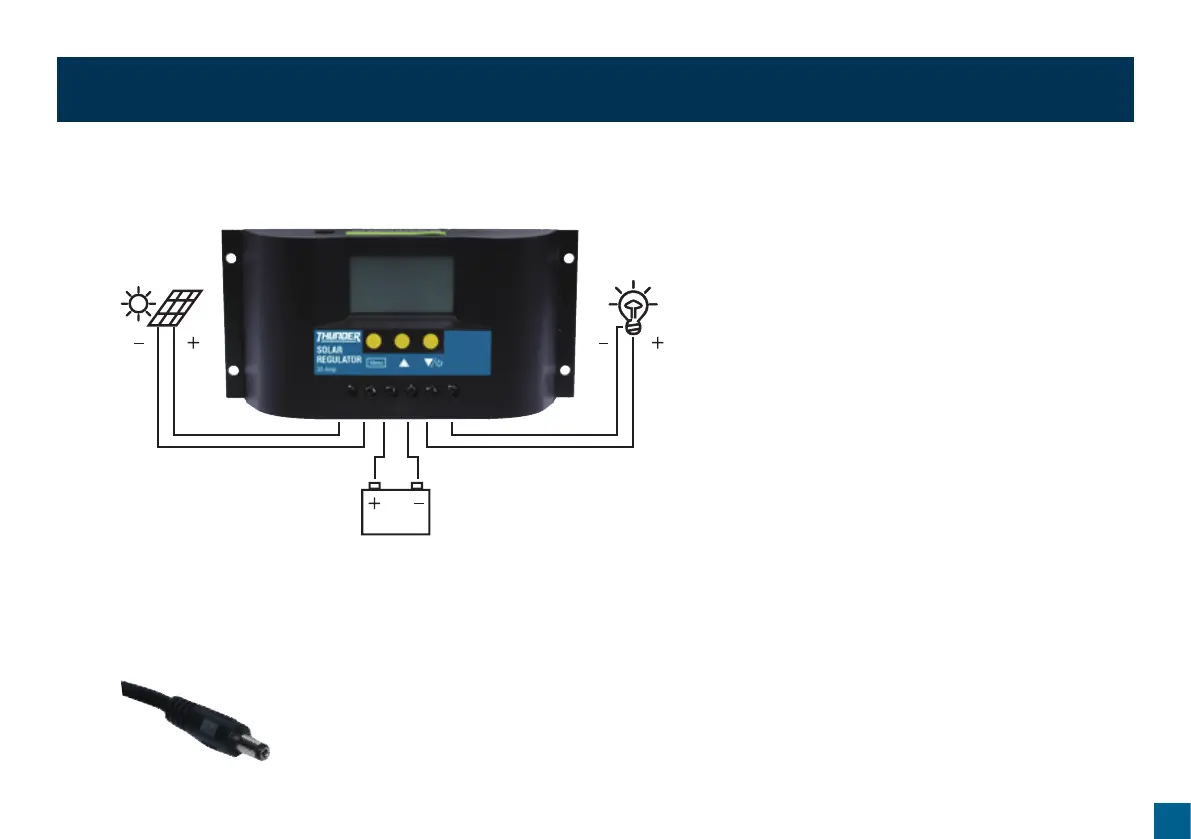

1. Ensure the regulator is mounted as close to the battery as possible.
2. For best results use at least 6mm² automotive cable.
3. Connect the battery positive terminal (B+) and the battery negative terminal (B-) beneath the appropriate + and - symbols in the middle of the regulator.
Then connect the solar panel positive and negative leads beneath the appropriate + and - symbols at the left of the regulator. The + and - connectors
can be used to power a device directly off the regulator (not recommended for sensitive electronics).
4. Plug the external temperature sensor into the socket in the top left corner of the regulator. The temperature sensor is required for temp compensation on
the high voltage disconnect function.
SOLAR PANEL DC LOAD
BATTERY
