ThyssenKrupp Flow2 Assembly Instruction

2007.03.07Flow2 stairliftTab 04: Install, adjust and release
www.ThyssenKruppAccessibility.nl14
Assembly
4. Push the first undercarriage onto the rail.
5. Keep the drive unit horizontal and push it onto the rail until the drive pinion touches the rack.
6. Carefully drive the drive unit onto the rail using the handle on the support bracket. During this,
check the position of the forks; they should be on either side of the pinion. Correct the position
if necessary.
7. Keep the drive unit horizontal so that the rear undercarriage can drive onto the rail properly.

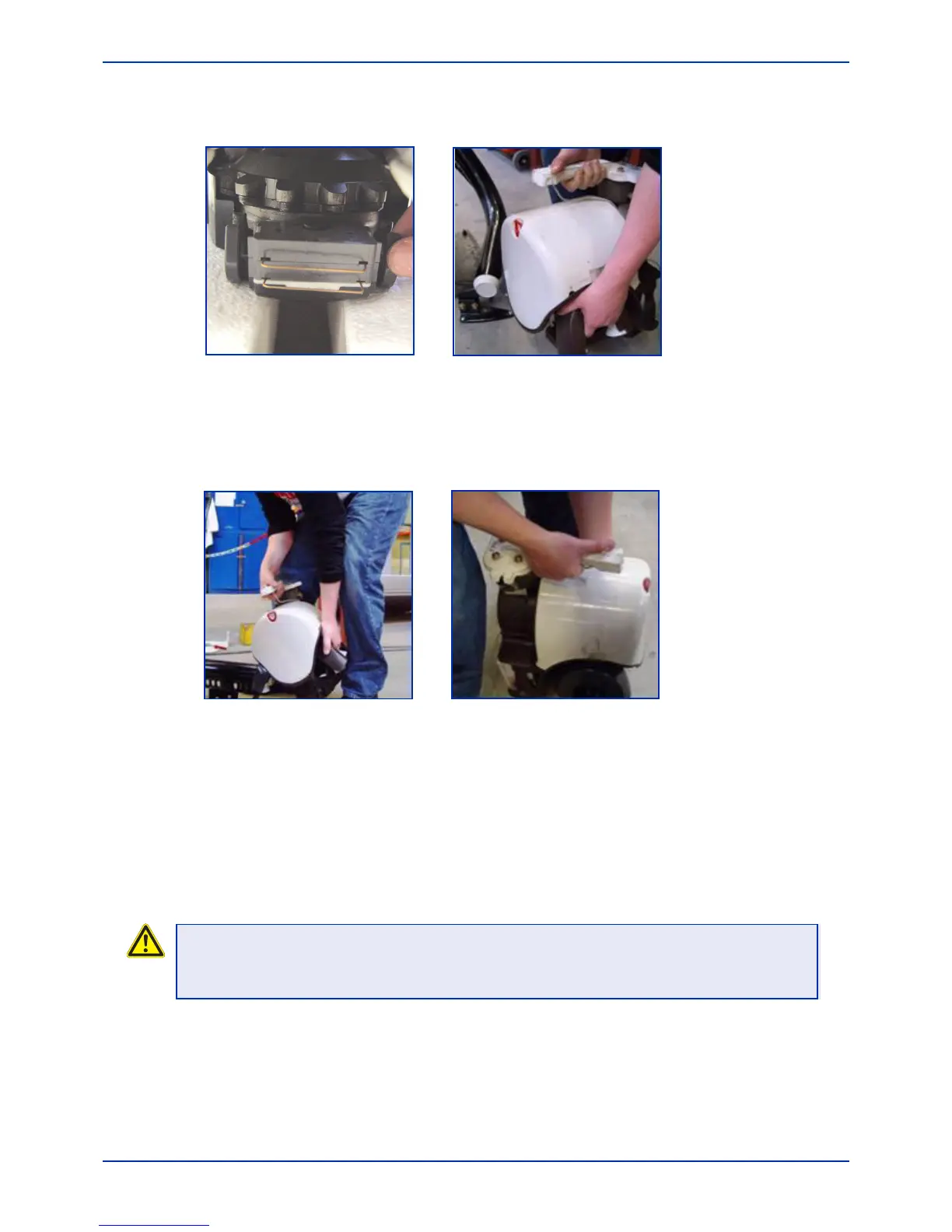

Fig. 3-8 Position the forks
correctly
1
Fig. 3-9 Grasp the drive unit
1
Fig. 3-10 Push the first
undercarriage onto the
rail
1
Fig. 3-11 Keep the drive unit
horizontal
1
CAUTION
Ensure that the drive unit is kept horizontal while driving it onto the rail to prevent the
drive unit becoming stuck on the rail.
