ThyssenKrupp Flow2 Assembly Instruction

2007.03.07 Flow2 stairlift Tab 04: Install, adjust and release
www.ThyssenKruppAccessibility.nl 23
Assembly
- Move the height adjustment bracket frame to the correct
position.
- For position 1: Turn the height adjustment 180º by
holding the sensor board with cover at an angle in mode
3. This creates an extra low position. Place the bracket
over these threaded ends and tighten the nuts on them.
- For position 2: Unscrew all the nuts, place the bracket on
the right pins, fit the nuts and tighten them.
- For position 4: Turn the bracket around and tighten the
nuts again.
- For position 5: Turn the bracket around and tighten the
nuts again.
5. Refit the height adjuster cover.
6. Refit the service cover.
Height of the footrest
The position of the footrest depends on the height of the chair base. The following rule of thumb
applies for setting the height of the footrest:
- An increase of one position of the seat height is accompanied by setting the footrest one position
lower. To move the footrest one position lower, the footrest shaft must also be moved one position
lower and the linkage one position higher.
Procedure:
1. Lay the chair as shown in Fig. 3-35 and use a clamp as necessary to stop the chair base
folding up
2. Adjust the linkage following the rule of thumb by unscrewing the M6x16 bolt and sliding the
linkage out. The post is in position 3. See Fig. 3-36.
3. Remove the two brackets by unscrewing the M6x16 bolt and sliding them out of the frame.
4. Set the correct position of the footrest shaft higher or lower than position 3, according to the
rule of thumb, see Fig. 3-37.

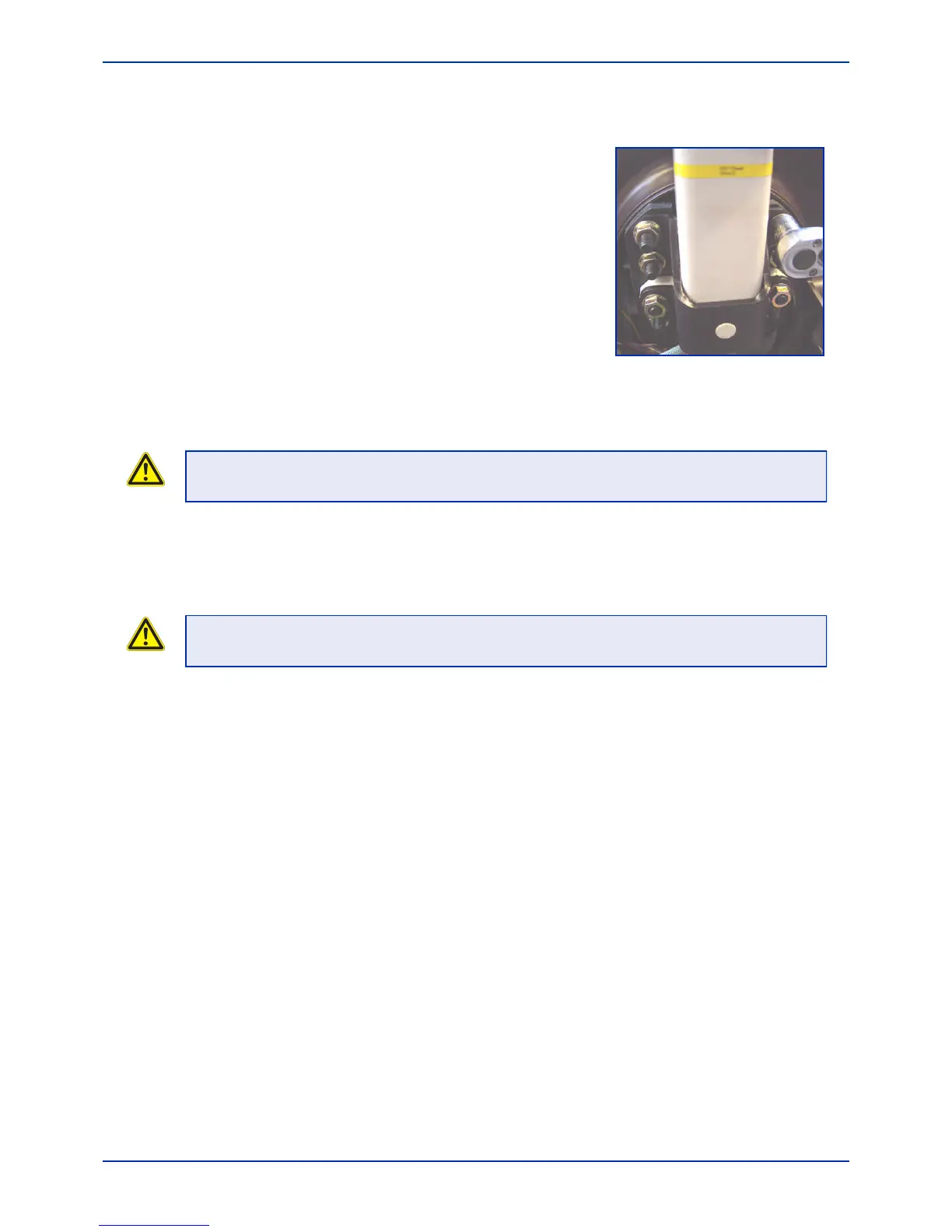

Fig. 3-34 M8 nuts
1
CAUTION
The hole in the bracket frame must align with the height adjuster frame.
CAUTION
Ensure that the cables are not trapped.
