Controls and Equipment
1
2
3
4
5
8
7
6
BENGAL
®
MODEL M / MM

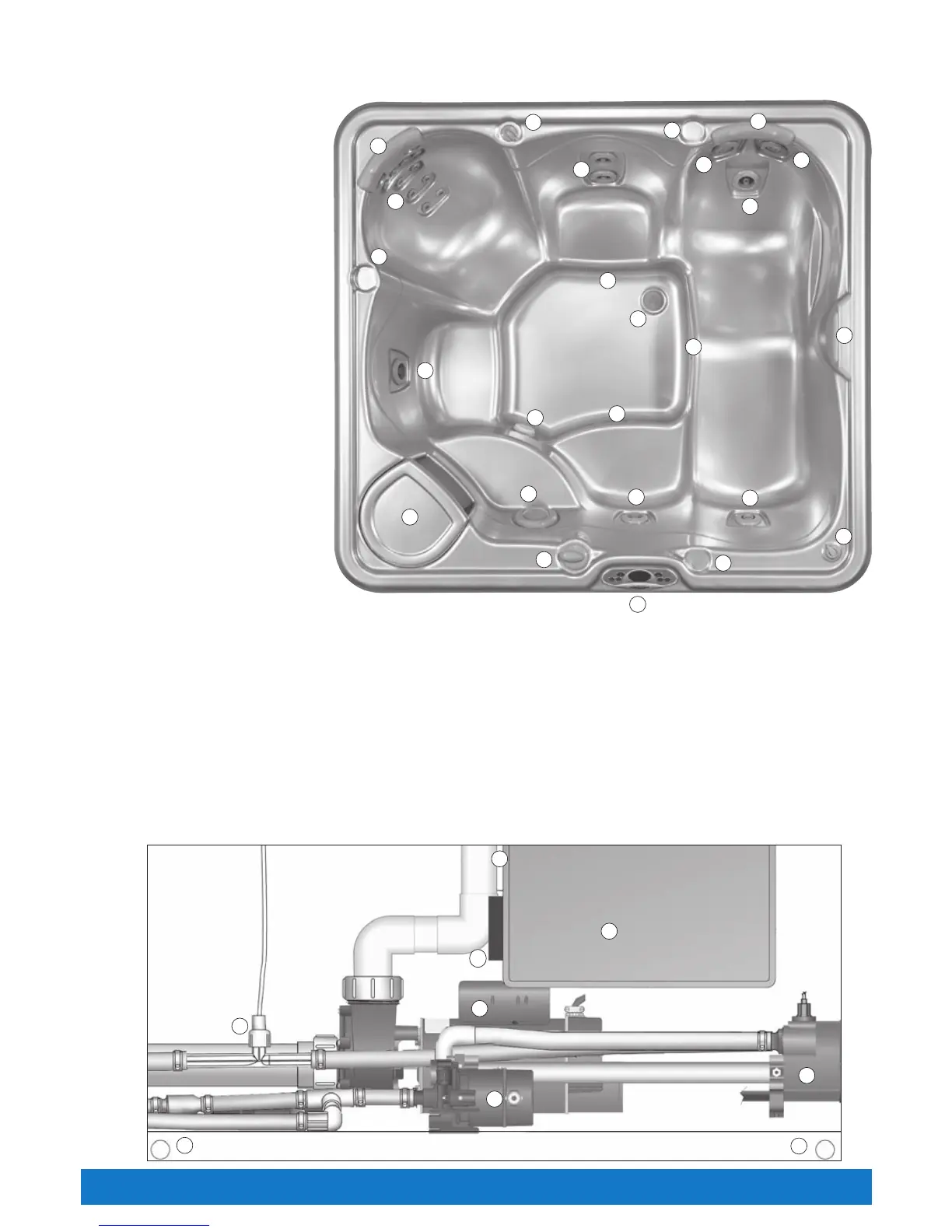

EQUIPMENT COMPARTMENT
1. Silent Flo 5000
®
circulation pump
2. Wavemaster
®
jet pump
3. No-Fault
®
heater
4. IQ 2020
®
spa control box
5. Light fixture (behind control box)
6. Main drain valve
7. Secondary drain valve
8. Ozone injector (optional accessory)
9. Bonding terminal
OVERHEAD VIEWS
A. Hydromassage jet with
directional nozzle
B. Hydromassage jet with dual port
rotary nozzle
C. JetStream
®
jet
D. Precision
®
jets
E. Heater return and spa drain
F. Secondary suction
G. Light lens
H. Spa pillow
I. Filter compartment
J. SmartJet
®
system selector
K. Controlpanel
L. Comfort Control
®
lever for
Precision jets
M. Cup holder
N. Water Feature (MM only)
O. Water Feature Lever (MM only)
B
B
A
A
A
A
C
E
F
G
K
M
M
M
J
I
L
H
H
D
D
D
D
9
N
O
