Controls and Equipment
SUMATRAN
®
MODEL N
EQUIPMENT COMPARTMENT
1. Silent Flo 5000
®
circulation pump
2. Wavemaster
®
jet pump
3. No-Fault
®
heater
4. IQ 2020
®
spa control box
5. Light fixture (behind control box)
6. Main drain valve
7. Secondary Drain
8. Ozone injector (optional accessory)
9. Bonding terminal
1
2
3
4
5
8
7
6

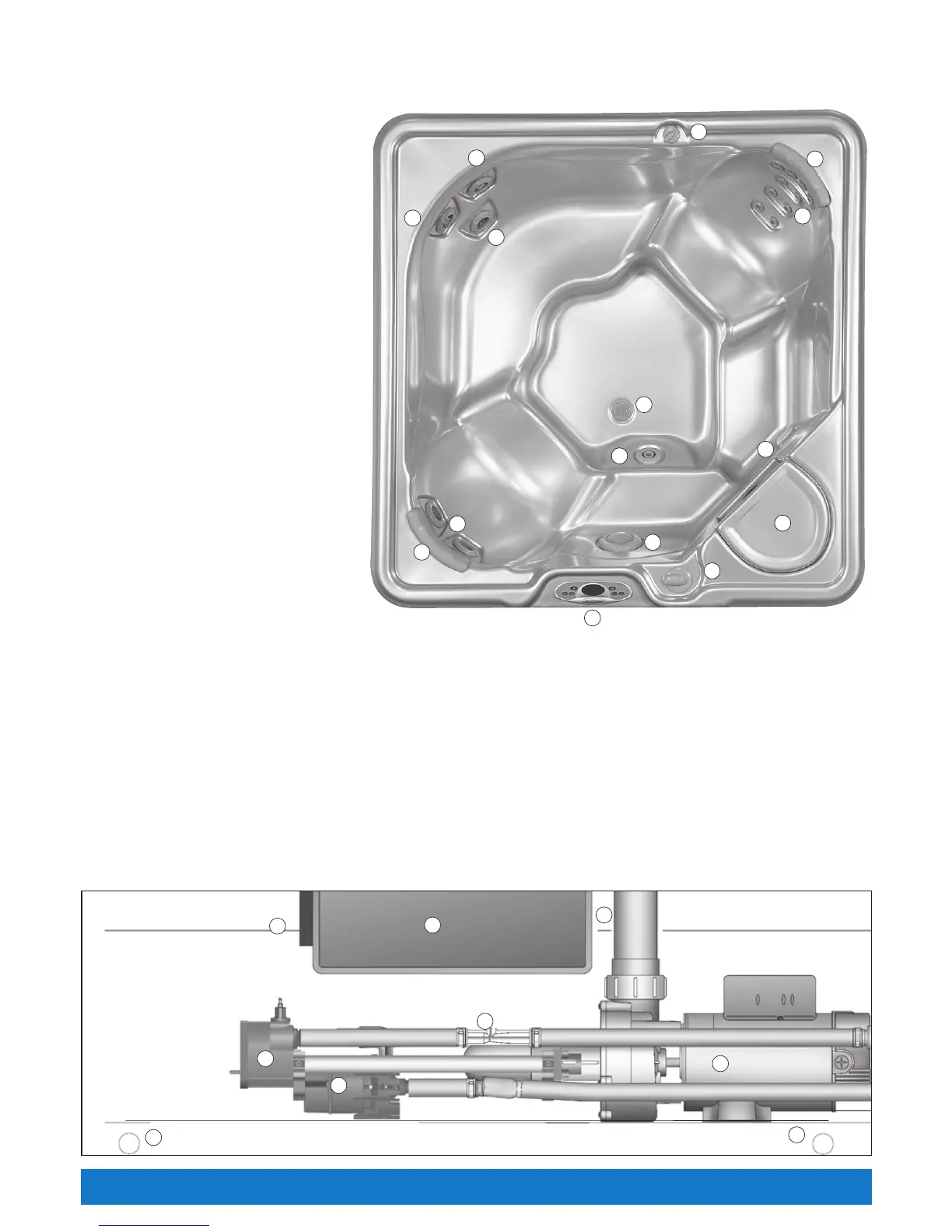

OVERHEAD VIEWS
A. Hydromassage jet with
directional nozzle
B. Hydromassage jet with dual port
rotary nozzle
C. JetStream
®
jet
D. Precision
®
jets
E. Heater return and spa drain
F. Secondary suction
G. Light lens
H. Spa pillow
I. Filter compartment
J. SmartJet
®
system selector
K. Controlpanel
L. Comfort Control
®
lever for
Precision jets
B
A
A
C
E
F
G
K
J
I
L
H
H
D
B
