Cheetah Common Section 6-36
DETAILS

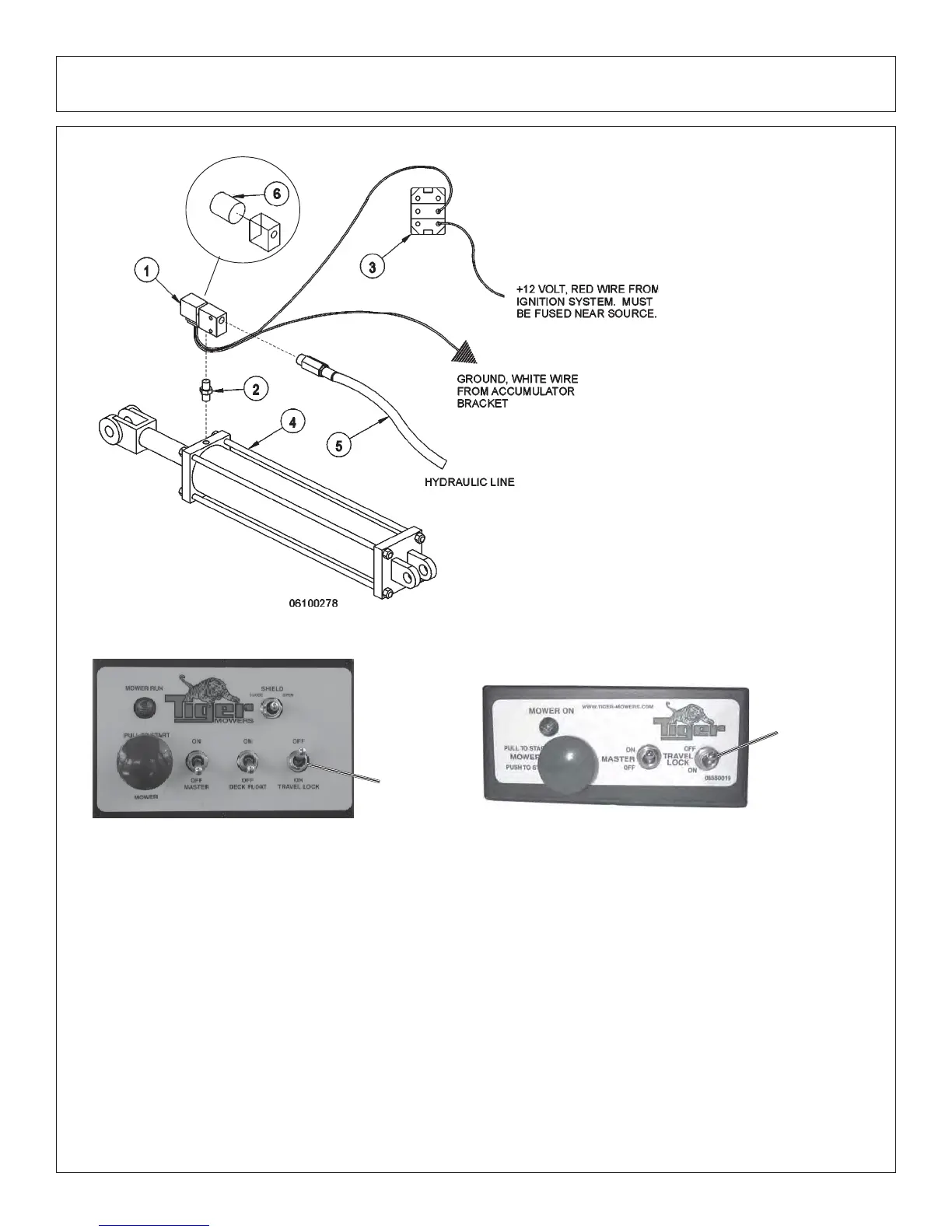

BOOM TRAVEL LOCK
ITEM PART NO. QTY. DESCRIPTION
1 31328 1 HYDRAULIC TRAVEL LOCK VALVE
2 31329 1 ADAPTER - STANDARD BOOM
2A 31611 OPT. ADAPTER - EXTENDED BOOM
3 34532 1 SWITCH,TRAVEL LOCK
4 * REF. MAIN BOOM CYLINDER - REFER OT BOOM ASY
5 * REF. HOSE / FITTINGS - REFER TO BOOM ASY
6 34796 1 COIL ,TRAVEL LOCK
OLDER UNITS ONLY, SWITCH ON NEWER MODELS IN SWITCHBOX
Refer to your switchbox before drilling hole or wiring.
For cab units, drill a hole in an open area on the right side of the dash panel and
install the toggle switch. For non-cab units, use the mounting bracket included to install
the toggle switch on the under side of the valve stand. Install the decal for the toggle
switch operation directly by the toggle switch.
Danfoss Switch Box
TRAVEL LOCK
SWITCH
Husco Switch Box
TRAVEL LOCK
SWITCH
