Tiger JD 5083E - Control System Installation and Calibration

Assembly Section 2-5
ASSEMBLY
JOYSTICK SWITCH BOX MOUNTING
Locate the 2 existing threaded holes in the right front corner of the cab frame.
These will be the mounting holes for the 2 mounting bolts of the switch box bracket.

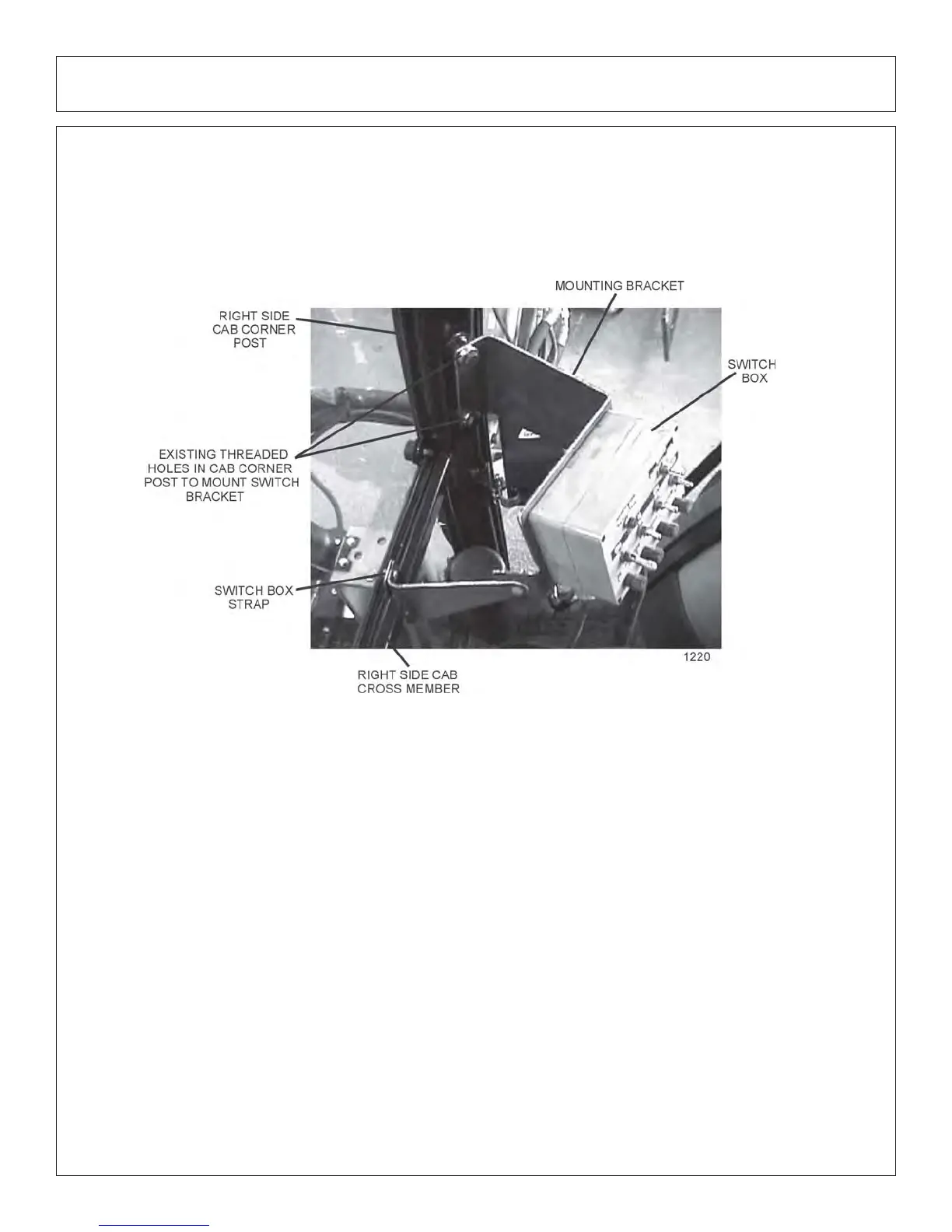

See picture below. Mount the bracket using the hardware supplied, as noted in the
parts section.
