Assembly Section 2-16
ASSEMBLY
CHEETAH HOSE ROUTING
WARNING NOTE: The sudden release of hydraulic pressure could cause the
sudden movement of very heavy parts. Anyone in the way of these parts could be
severely hurt or killed. DO NOT ALLOW these hydraulic hoses to BREAK or BURST
in order to prevent hydraulic failure Make sure the hoses do not pinch or stretch as
boom moves. Measure TWICE, check TWICE then proceed with caution.

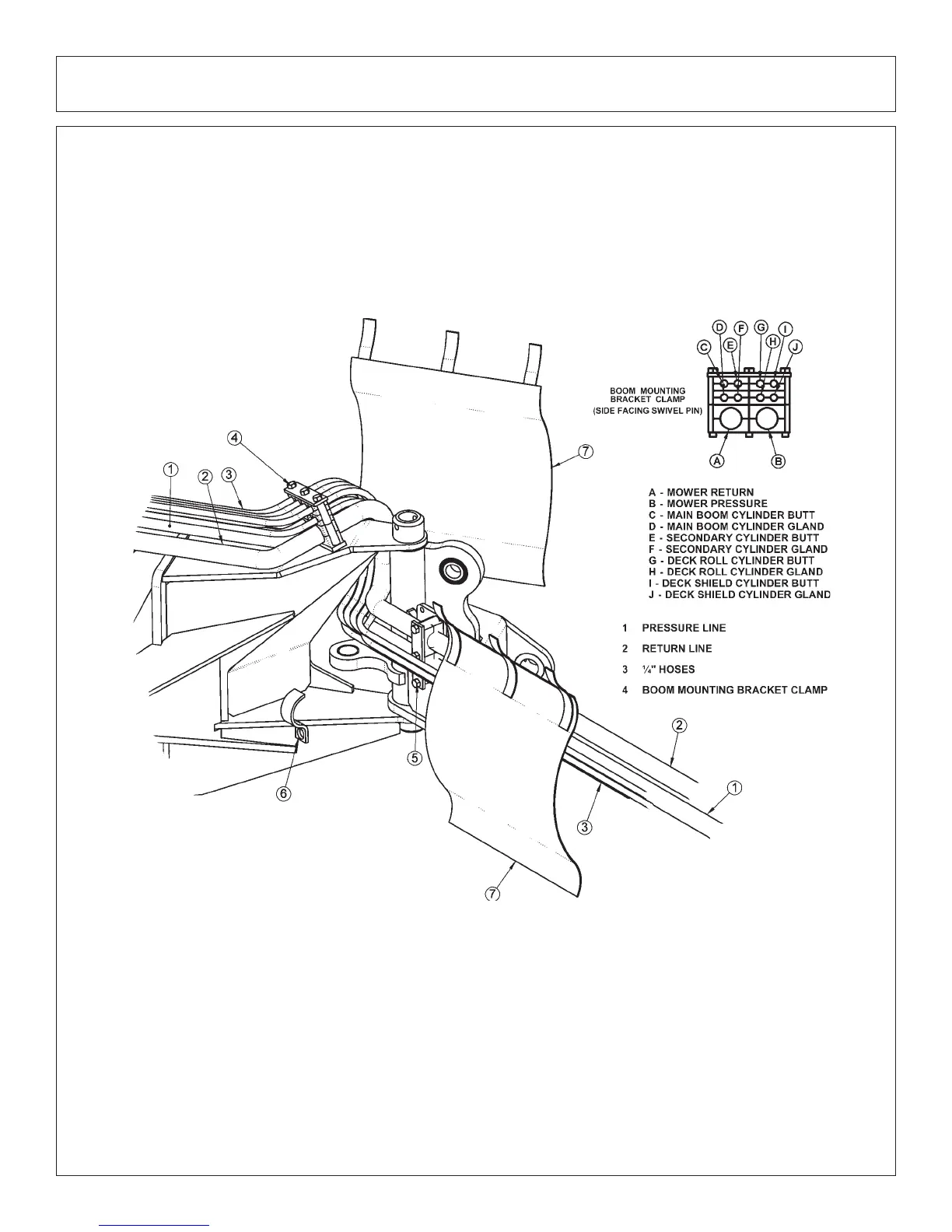

Route the hoses through the space between the swivel and the boom mounting
bracket. Connect the hoses to the preformed tubes and move the boom arm to a few
feet from full forward. Assemble the swivel clamp and place the return hose for the
motor on top and the pressure line on the bottom. Place the ¼” hoses in the “C”
clamp and add it to the bottom screw of the swivel clamp. Next, make sure there is
enough slack for all hoses to pivot at the joint where the main boom arm bends in the
swivel, as shown in the next image, and tighten the hoses in the clamp.
