Assembly Section 2-26
ASSEMBLY
4WD FRONT TIRE ADJUSTMENT

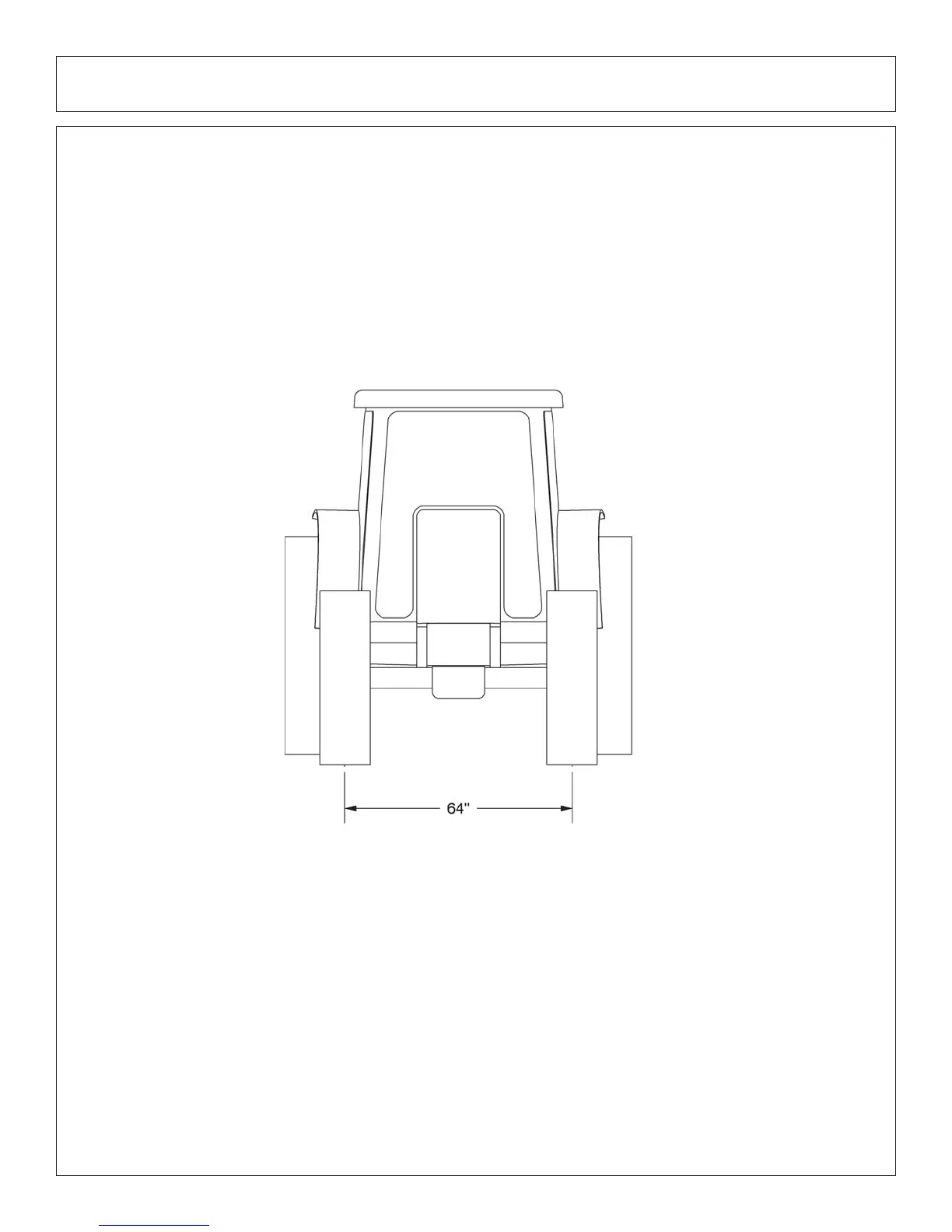

In order to prevent interference with mounted equipment, the front wheels on a
4WD 5101E tractor will have to be adjusted to approximately 64” center to center
distance as shown below. Please refer to your John Deere Maintenance Manual to see
the correct rim and tire configuration to achieve this. Double check the wheel spacing
after adjustment by oscillating and turning the tires fully to check for any interference.
