Cheetah Operation Section 3-8
OPERATION
The main control valve on the Tiger Boom Mower has four sections with tapered
spools, located near the right side of the steering wheel. The malfunction of a
section of the valve does not necessitate the replacement of the entire “bank”, only
the faulty section. Each section of the valve controls a certain position of the boom
or deck. Seated in the operators seat, the controls from left to right are as follows:
#1 -- main boom, #2 -- secondary boom, #3 -- deck roll, #4 -- boom swing and
#5 -- safety shield.

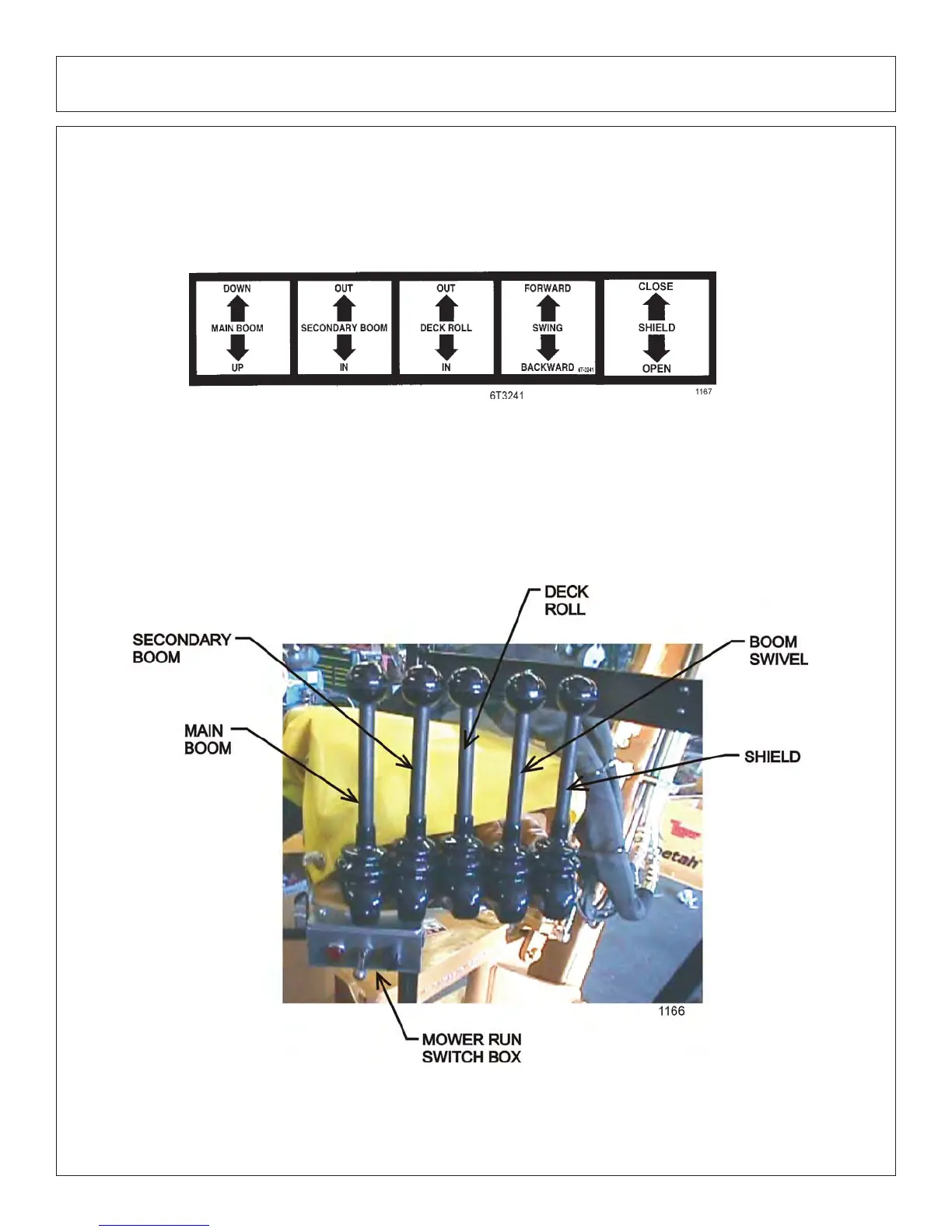

LEVER CONTROL AND FUNCTIONS
A control lever decal similar to the one shown below should be near the control
valve to remind the operator of the lever functions
34206
