Triple Gang Flail Common Section 6 - 90
ITEM PART NO. QTY. DESCRIPTION
* REF * BONNET (REFER TO HEAD PARTS)
2 30531A 1 BRACKET, TRAVEL LOCK
3 TF4248 1 PLATE, TRAVEL LOCK
4 23745 1 TRAVEL LOCK HOOK
5 21783 2 CAPSCREW,5/8”x2” NC
6 21992 2 LOCKWASHER, 5/8”
7 21775 2 HEX NUT, 5/8” NC
8 TF4250 1 PIN, TRAVEL LOCK

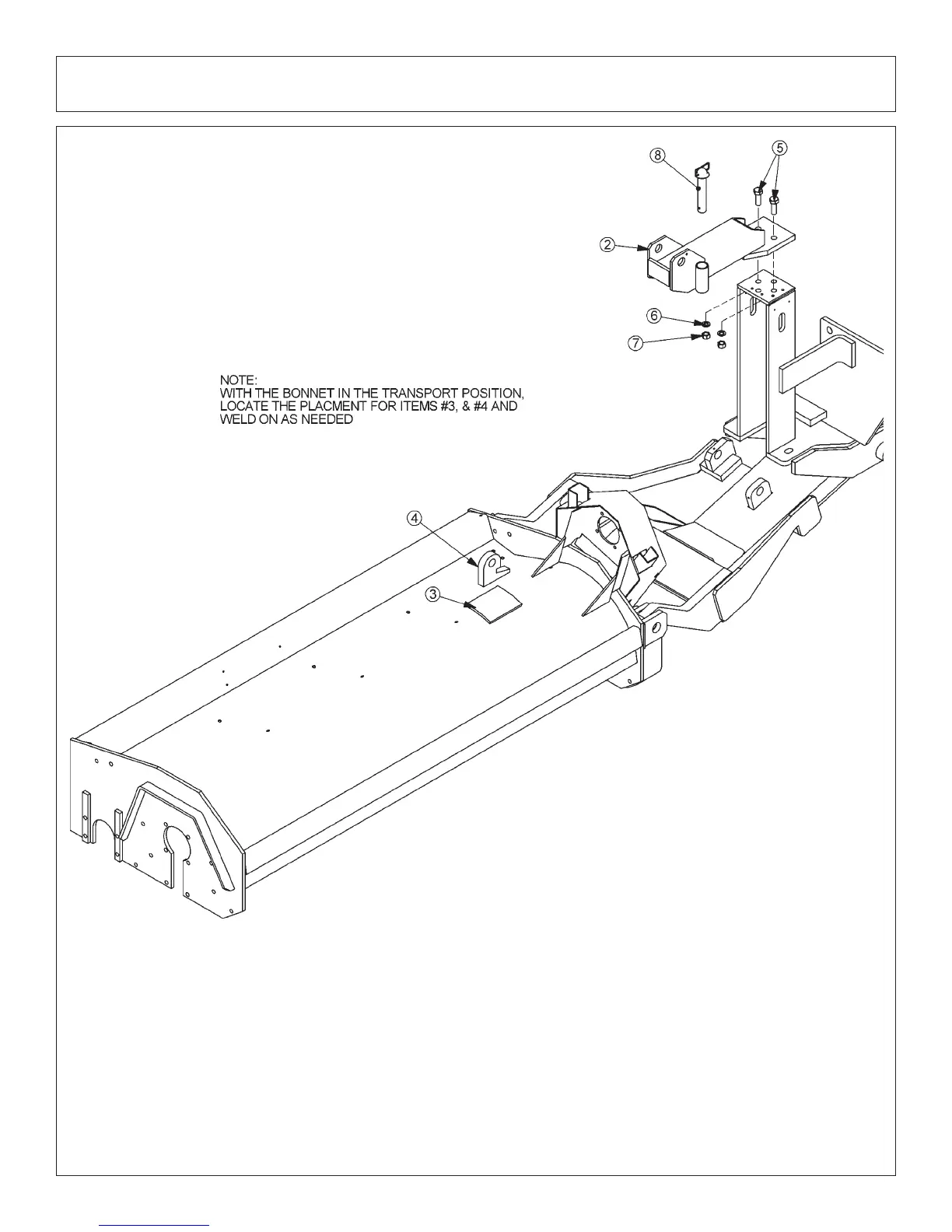

SIDE FLAIL TRAVEL LOCK
