Assembly Section 2-7
ASSEMBLY

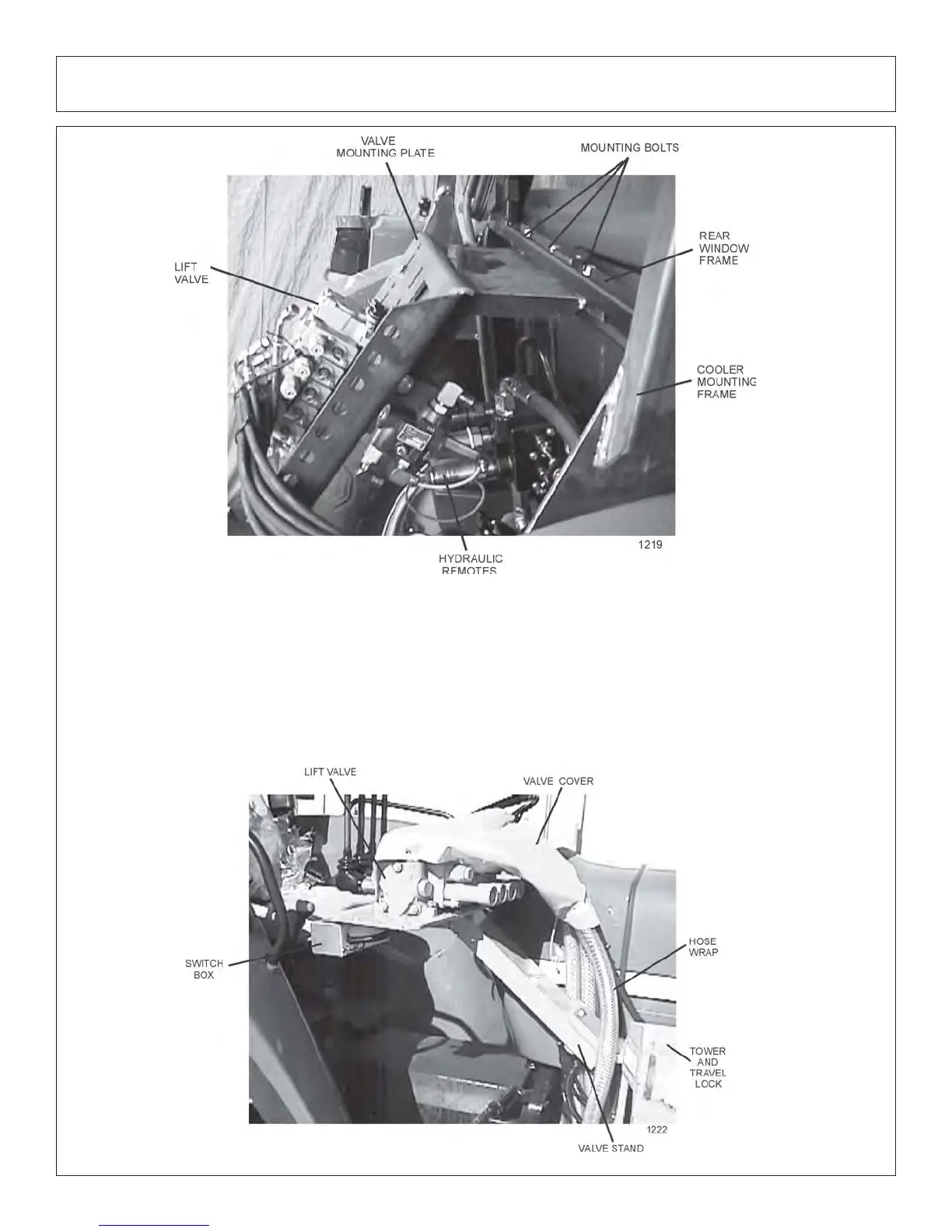

SECTIONAL VALVE MOUNTING (WO/CAB)
Refer to the parts section, lift valve page for hardware and location of
components. First, attach control valve stand to the top of the main frame mast with
cap-screws, lock-washers and hex nuts. NOTE: The mounting plate should face
the rear of the tractor.
Attach the 4-spool control valve to the stand using the hardware noted in the parts
section. One cap-screw must be used to secure the switch box to the under side of
the valve stand.
