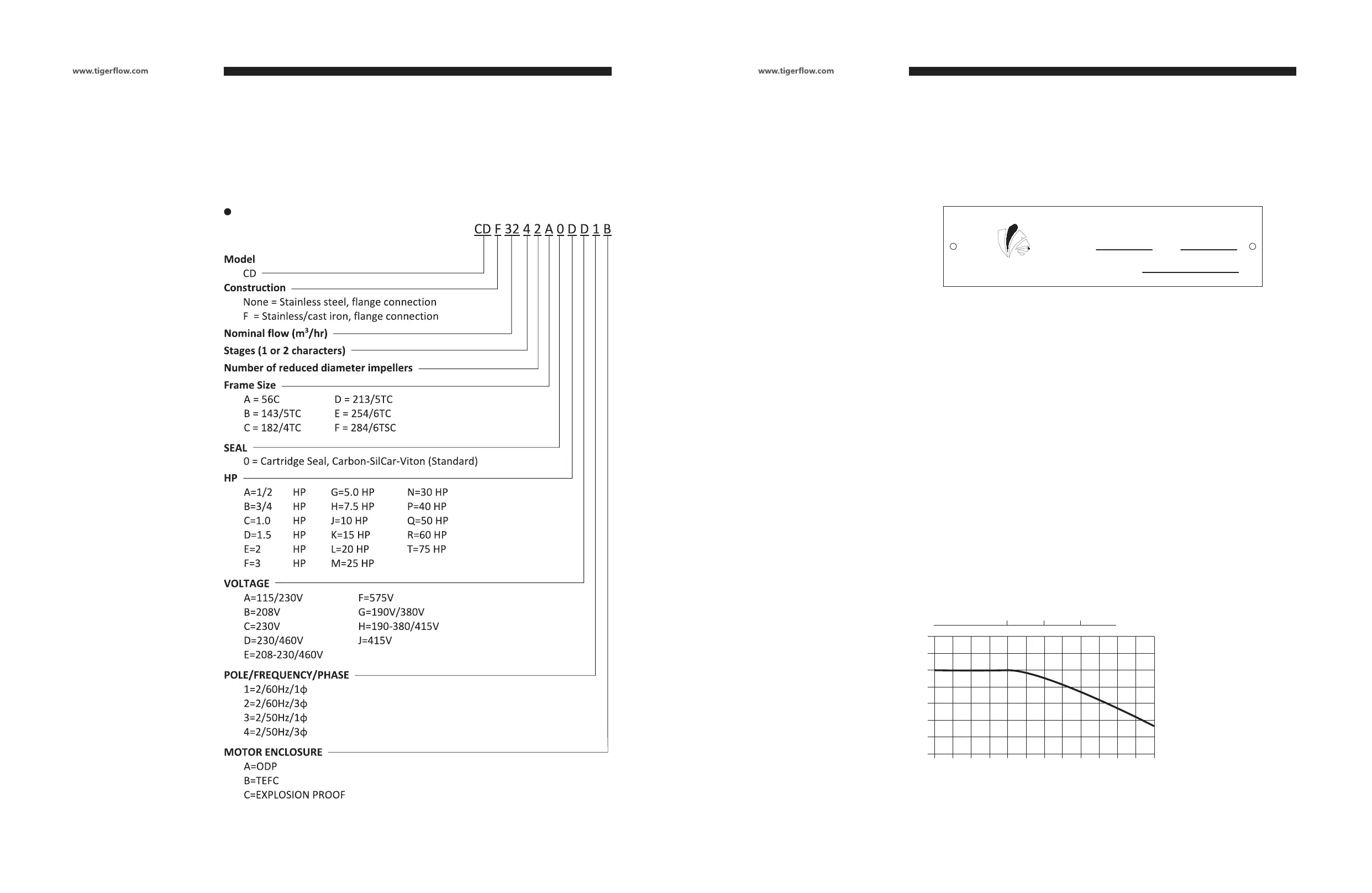

2.4. Model Key
Wet - end / Motor combination CD32-85
2.5. Specifications Plate
Installation, Operation and Maintenance Manual Installation, Operation and Maintenance Manual
Figure 1： CD Pump Name Plate
1. Model
2. Part Number
3. Motor Power
4. Temperature
5. Serial Number
Model
Serial No.
CD Vertical Multistage Pump
Temperature：
23°C
PN#
TIGERFLOW
®
3. TECHNICAL
3.1. Room Temperature and Altitude
When the room temperature is over 104℉ (40ºC) or the pump has been installed over 3281 FT
(1000 m) altitude, the motor should not operate at full capacity, since there is a risk of overheat-
ing as indicated in Figure 2. Overheating may be caused by excessive room temperature or low
air density with insufficient refrigeration capacity.
In those cases where both, room temperature and altitude are surpassed, correction factors
must be enhanced.
In both cases, a motor with a greater nominal power would be desirable.
3281
P2
[%]
110
100
90
80
70
60
50
7382 11483
68 77 86 95 104 113 122 131 140 149 158 167 176
T[℉]
FT
Figure 2:
Recommended motor load
according to temperature
and altitude
