AIR OUTPUT FILTER, LINT FILTER
REPLACE EVERY 500 HOURS OF
OPERATION OR ONCE A YEAR
- Remove upper shell and fan guard
(See Air Intake Filter Figure 15).
- Remove end filter cover screws using
medium Phillips screwdriver.
- Remove end filter cover.
- Replace air output and lint filter.
- Reinstall end filter cover.
- Reinstall fan guard and upper shell.
FAN BLADES
CLEAN EVERY SEASON OR AS NEEDED
- Remove upper shell (See Air Intake
Filter).
- Use M6 Allen wrench to loosen set
screw which holds fan blade to motor
shaft.
- Slip fan blade off motor shaft.
- Clean fan blade using soft cloth
moistened with kerosene or solvent.
- Dry fan blade thoroughly.
- Reinstall fan blade to motor shaft.
- Place fan blade hub flush with end of
motor shaft.
- Place set screw on flat of shaft.
Air Out
p
ut Filter
In
ta
k
e
Fil
ter
En
d
Fil
te
r
Co
v
er
Lin
t
Fli
ter
Maintenance (Continued)
- Tighten screw firmly (40-50 inch-
pounds/4.5-5.6 N-m). Reinstall
upper shell.
NOZZLE
CLEAN NOZZLE AS NEEDED
- Open upper shell (See Air Intake Filter,
page 8).
- Remove fan blade (See Fan Blades).
- Remove fuel and air line hoses from
burner head.
- Remove ignitor wire from spark plug.
- Remove three screws using medium
Phillips screwdriver and remove burner
head from combustion chamber.
- Remove spark plug from burner head
using medium Phillips screwdriver.
- Carefully remove nozzle from burner
head using 5/8” socket wrench.
- Blow compressed air through face of
nozzle (This will remove any dirt).
- Reinstall nozzle into burner head and
tighten firmly (80-100 inch-pounds).
- Reinstall spark plug into burner head.
- Attach burner head to combustion
chamber.
- Attach ignitor wire to spark plug.
Attach fuel and air line hoses to
burner head.
- Reinstall fan blade and upper shell.
SPARK PLUG
CLEAN AND REGAP EVERY 600 HOURS
OF OPERATION OR REPL
ACE AS
NEEDED.

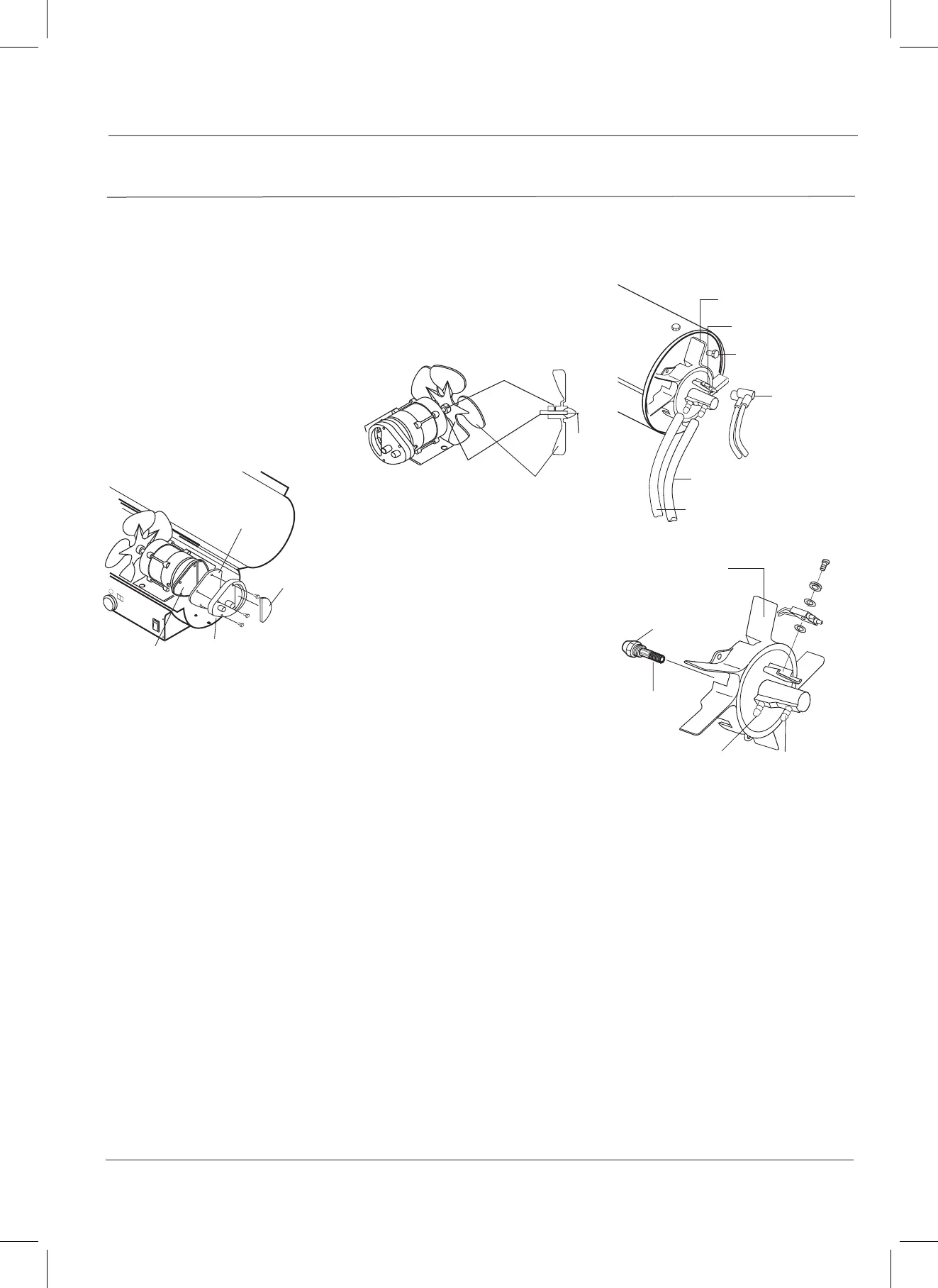

Figure 16 – Fan Assembly
Moter Shaft
Set
Sc
r
ew
F
a
n Bl
ade
Fl
ush
Ignitor Wire
Screw
Burner Head
Spark Plug
Fuel Line Hose
Air Line Hose
Fuel Line Fitting
Air Line Fitting
Nozzle
Nozzle Face
Burnrer Head
Figure 17 – Nozzle Replacement
