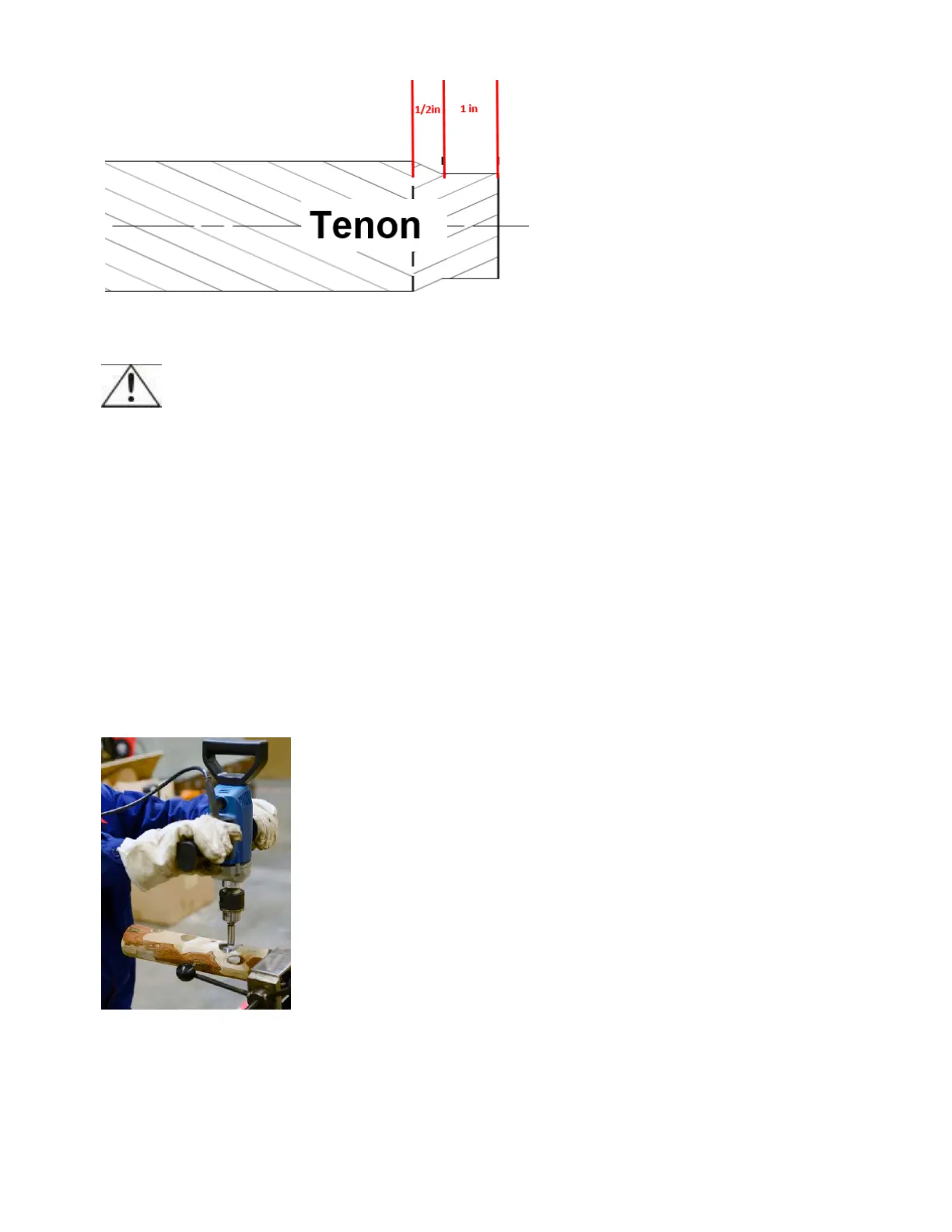

3) For most projects tenon length will fall between 1’’ to 2’’
CAUTION:
1. When you adjust the blades, the drill power must always be cut off.
2. Please install the tenon cutter into an unplugged 1/2’’ drill carefully and tighten it firmly. Use the
T-Handle to secure the chuck.
3. Square up to the log so that the cutter is flush against the flat face of the log.
4. When drilling the hole or tenon, you could apply your body weight or lean into the drill
5. Pull the trigger to cut the tenon
6. Please wait the drill comes to a stop completely before removing from the log.
7. Make sure that the tool is squared up, this point is very important. If held at an angle the tenon will
be cut angled.
DRILLING HOLES FOR TENONS
1. Before your beginning, you must ensure that your logs have been cut to proper lengths. You have to
cut tenons on the ends of the specified logs. After cut the holes then you may begin assembly of
your piece.
