Features
H-beam Log Carriage
• The hydraulic cylinder/wedge assembly is mounted on a 5” X 5” H-beam log carriage
• Carriage hinged for operation in either horizontal or vertical position
• H-beam confi guration is stronger and more rigid than equivalent-size I-beam
A. Always insert locking pin to secure carriage in the selected position
B. Never move the log splitter with carriage in the vertical position
CAUTION
Two-stage Hydraulic Pump
Timberwolf log splitters use a two-stage hydraulic pump that:
• Normally moves the wedge at high speed with low force
• Shifts automatically to low speed and high force when the log splitter encounters more resistance
• May shift two or three times splitting some logs
If the two-stage hydraulic pump stays in one stage all the time, contact your
local dealer or another authorized Timberwolf service facility.

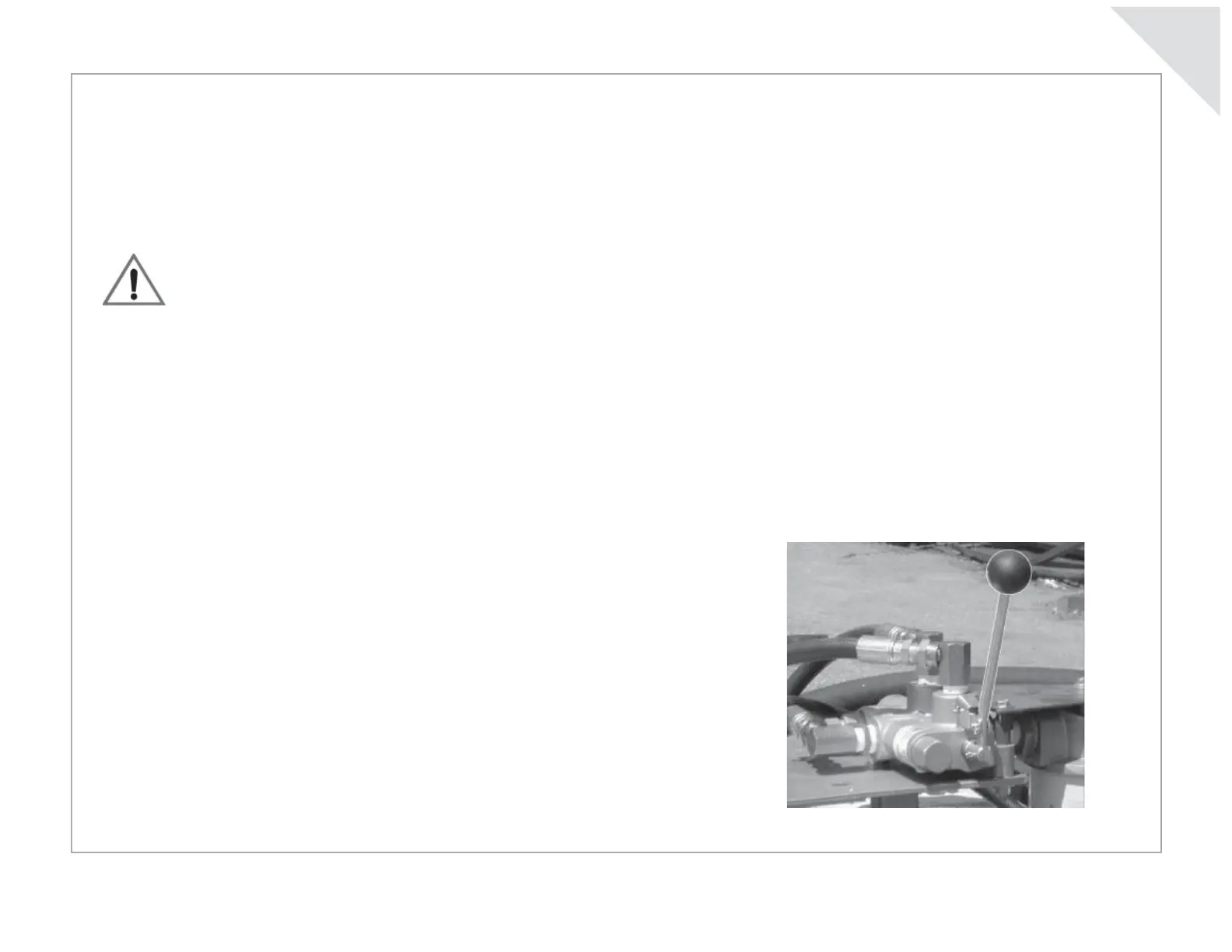

Single Handle Valve
Standard-equipment hydraulic control is a single handle valve.
Single Handle Valve
• Wedge travels forward only while valve handle is held in position
• Cylinder automatically completes return stroke when valve handle is pushed
back to détente position and released
13
TIMBERWOLF FIREWOOD PROCESSING EQUIPMENT
