MEASURING A VOLTAGE INPUT

To measure a voltage input select the V function and select the appropri-

ate range. If the input is unknown then choose the highest range. Select

the measure mode and ensure that the polarity switch is set to normal. The

reading should now be displayed. If the display shows the digit 1 with a

blank character then the unit has over-ranged and must be switched to the

next highest range.

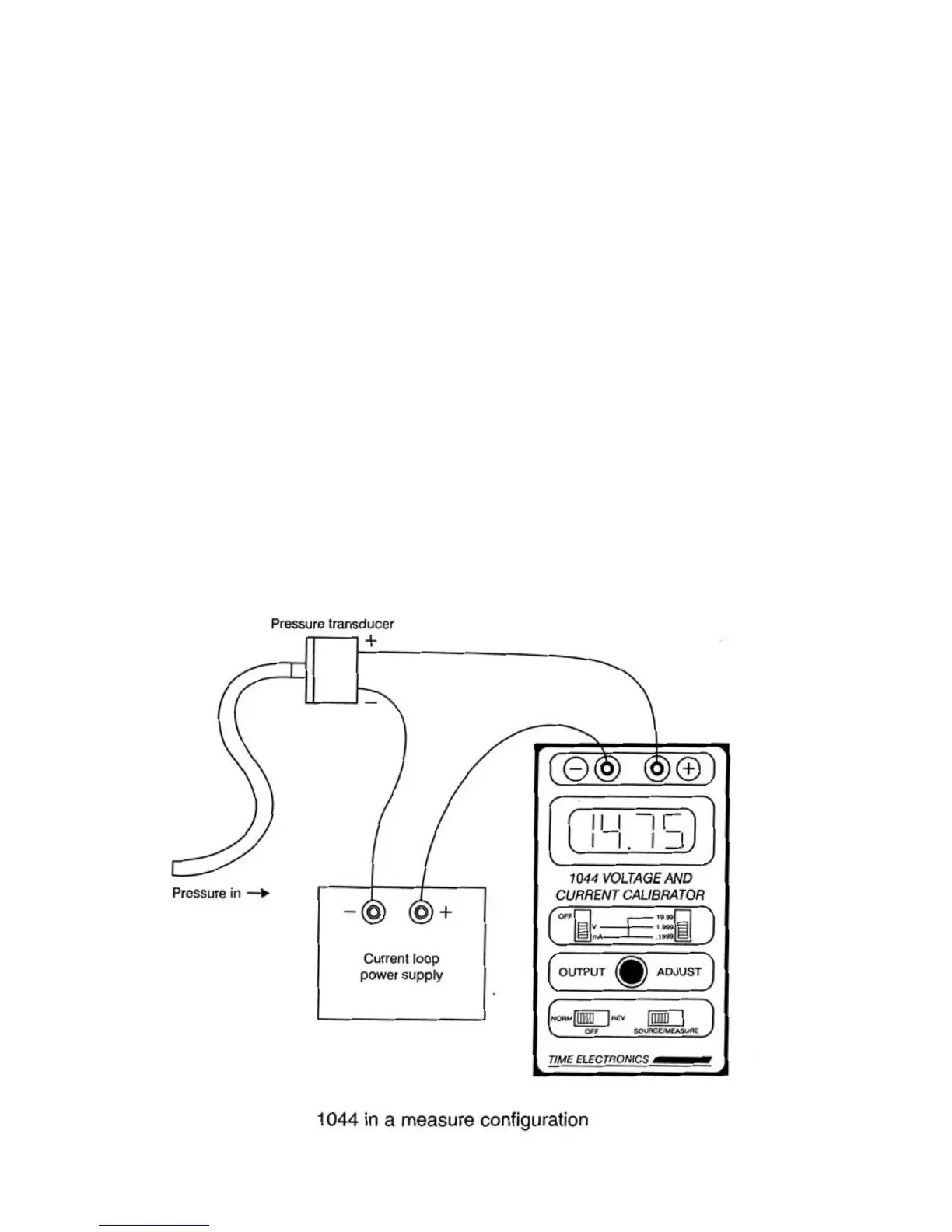

MEASURING A CURRENT INPUT

To measure a current input select the mA function and select the appropri-

ate range. If the input is unknown then choose the highest current range.

Select the measure mode and ensure that the polarity switch is set to nor-

mal. The reading should now be displayed. If the display shows the digit 1

with a blank character then the unit has over-ranged and must be switched

to the next highest range.
