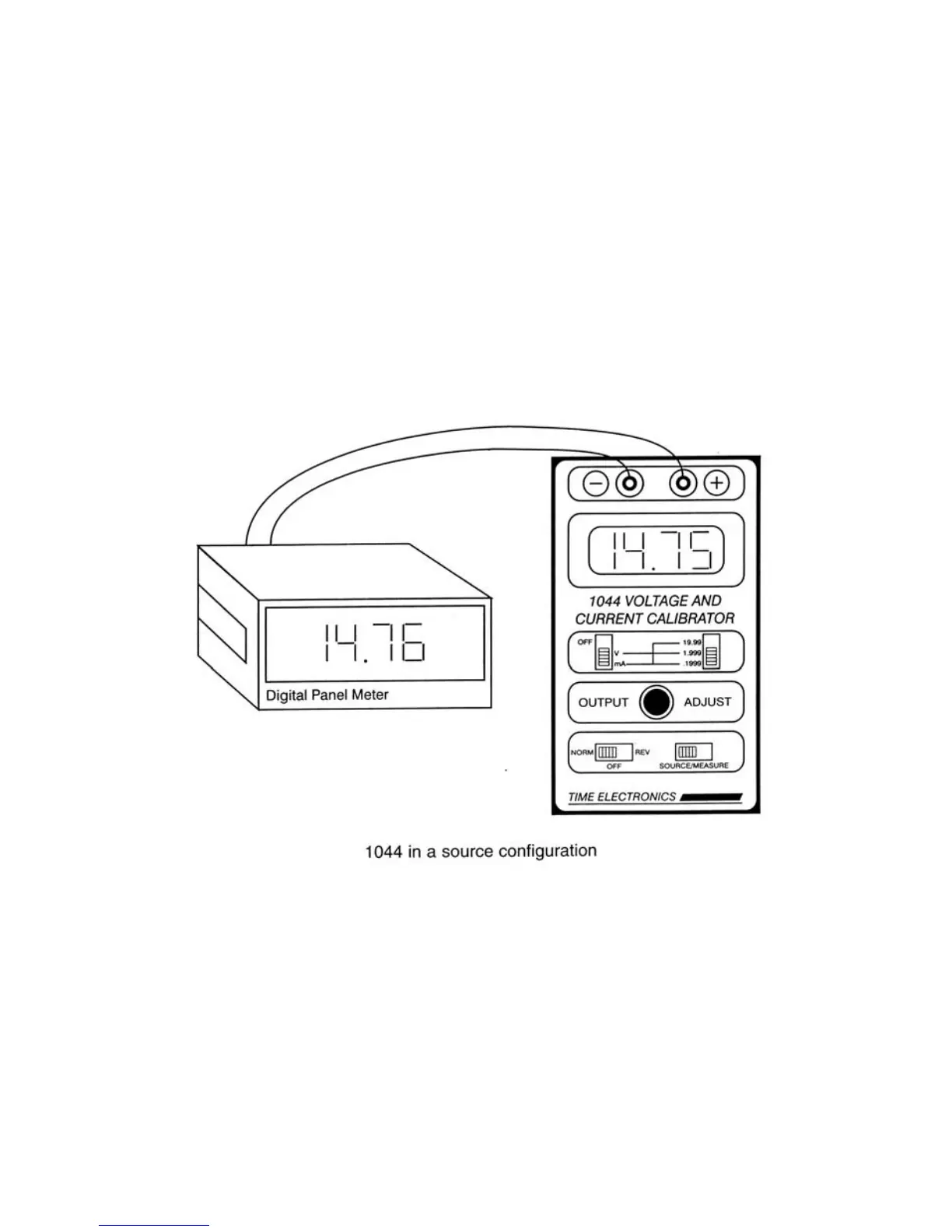

SETTING A CURRENT OUTPUT
To set a current output, set the function switch to mA and set the appropri-
ate current range ensuring that the output adjust potentiometer is set to
zero. Connect the unit under test. The desired current can be set by turning
the output adjust multiturn potentiometer where the output current shown in
the display will alter. To obtain a current reading, a load must be connected
to the output of the 1044.
Note that if the current output is set to its maximum but is not indicated
on the display, the output load is probably too high or the battery is low.
Therefore reduce the loop resistance or replace the battery.
