5 6

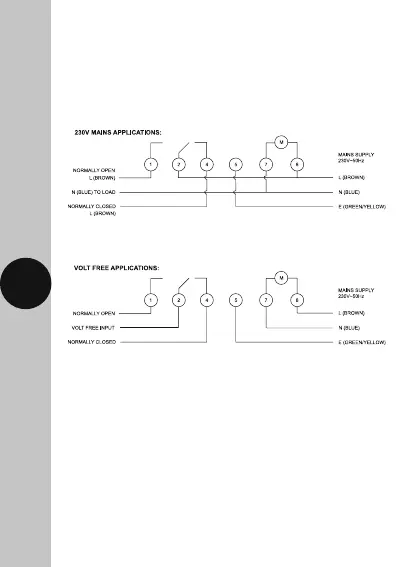

Fig 2
Fig 3
of having voltage free contacts (see fig 2). Refer to
(fig 3) for voltage free contacts wiring. Ensure that
all bare conductors are sleeved and that correct
polarity is observed.
6. Refit the terminal cover and plug the timeswitch
into the base plate.
7. Re-tighten the fixing screws attached to the face
of the unit to the base plate.
8. Switch on the power from the supply line.
