2
4. Selecting a Location

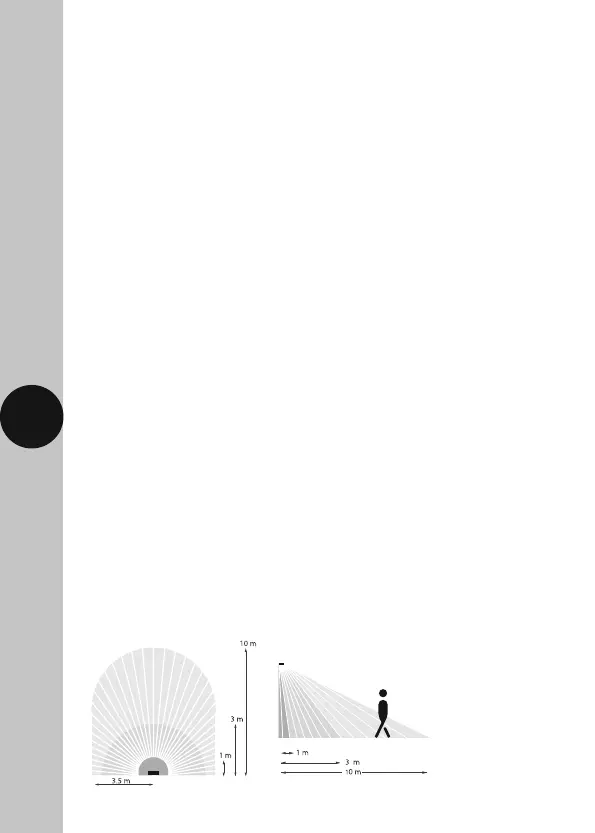

• The PIR sensor has number of detection zones, at various vertical and horizontal
angles as shown. See image A.
• Lux Adjustment: 2 to 200 lux
• Stand-by Power Consumption: 0.4W
• Warm-up Duration: 30 seconds
• Colour Temperature: 4000K
• Operating Temperature: - -20°C to +45°C
• Manual Pulse Override: Double flip within 2 seconds to enter
6 hours ON time
• Back Box Mounting Centres: 60mm
• IP55 Rated suitable for restricted external applications
• CE Compliant
• Dimensions: H= 160mm, W= 167mm, D= 50mm
Other Loads – External (Slave)
• LED Lamp: Max 100W
• Halogen Lamp: Max 300W
• Fluorescent Lamp: Max 200W
Parallel Switching
• A maximum of 4 LED200PIR twin floodlights can be wired in parallel
to enable any detector to turn ON all the lights connected.
Note: if you have the PIR floodlights set for different time durations,
and you trigger more than one PIR sensor, the light will stay ON for duration
of the highest set time.
A
