ISOLATION

SWITCH

LLN

230V AC 50Hz

MAINS SUPPLY

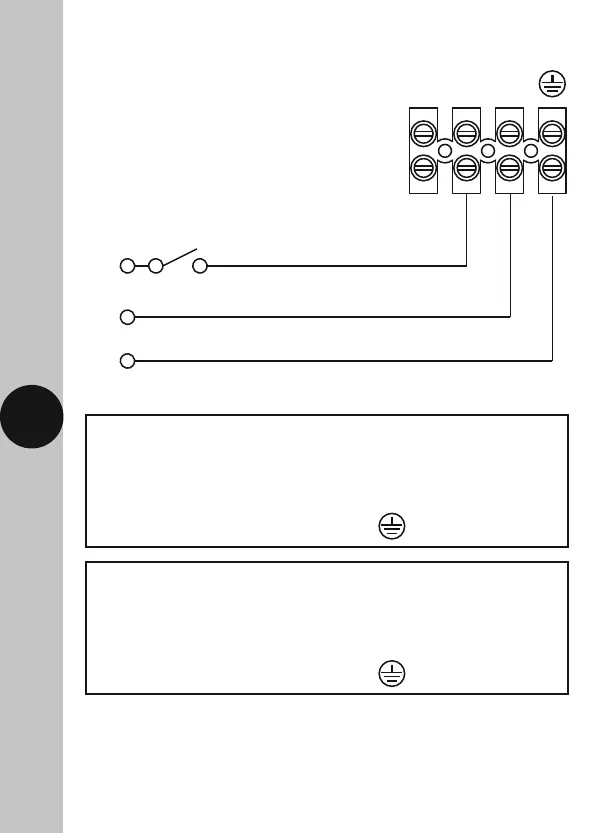

6. Connection Diagram

Connect the 3 core mains supply cable top the terminal

block on the back box as follows:

Live Supply (Brown or Red) to L

Neutral Supply (Blue or Black) to N

Earth (Green/Yellow) to

For additional external (slave) lighting, connect the external

load to the terminal block on the back box as follows:

Live Supply (Brown or Red) to L

Neutral Supply (Blue or Black) to N

Earth (Green/Yellow) to
