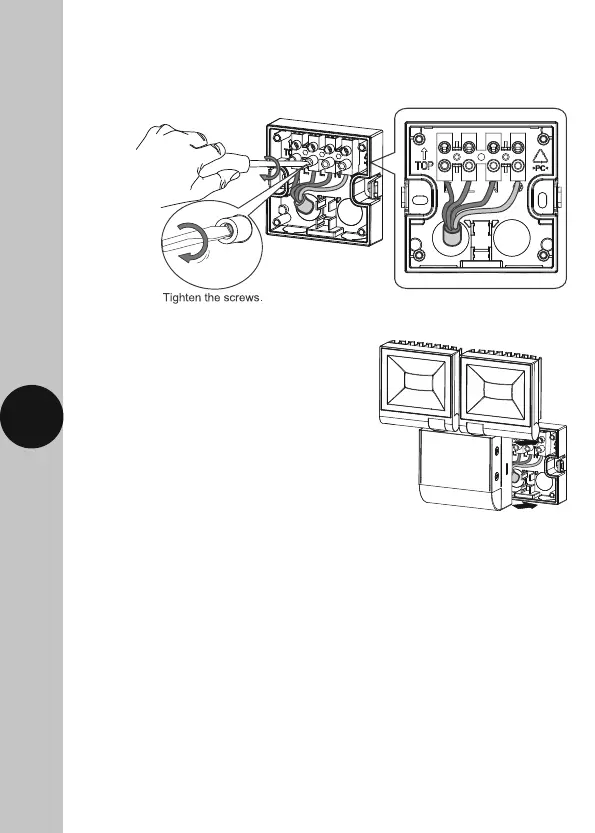

5.7 Terminate the 230V 50Hz mains supply cable into the terminal block
(See image 6) ensuring correct polarity is observed and that all bare conductors
are sleeved (See section 6. Connection Diagram – for wiring details).
5.8 Re-connect the luminaire to the back box
ensuring the 2 lugs firmly latch on the left
and right hand side, indicated by a ‘click’.
See image 7.
