Timeguard TRTD7N User Manual

12345
230V~50Hz
MAINS SUPPL
Y
LOAD
L
E
N
Heater Neutral
Boost Load
Off Peak Load
Earth
4

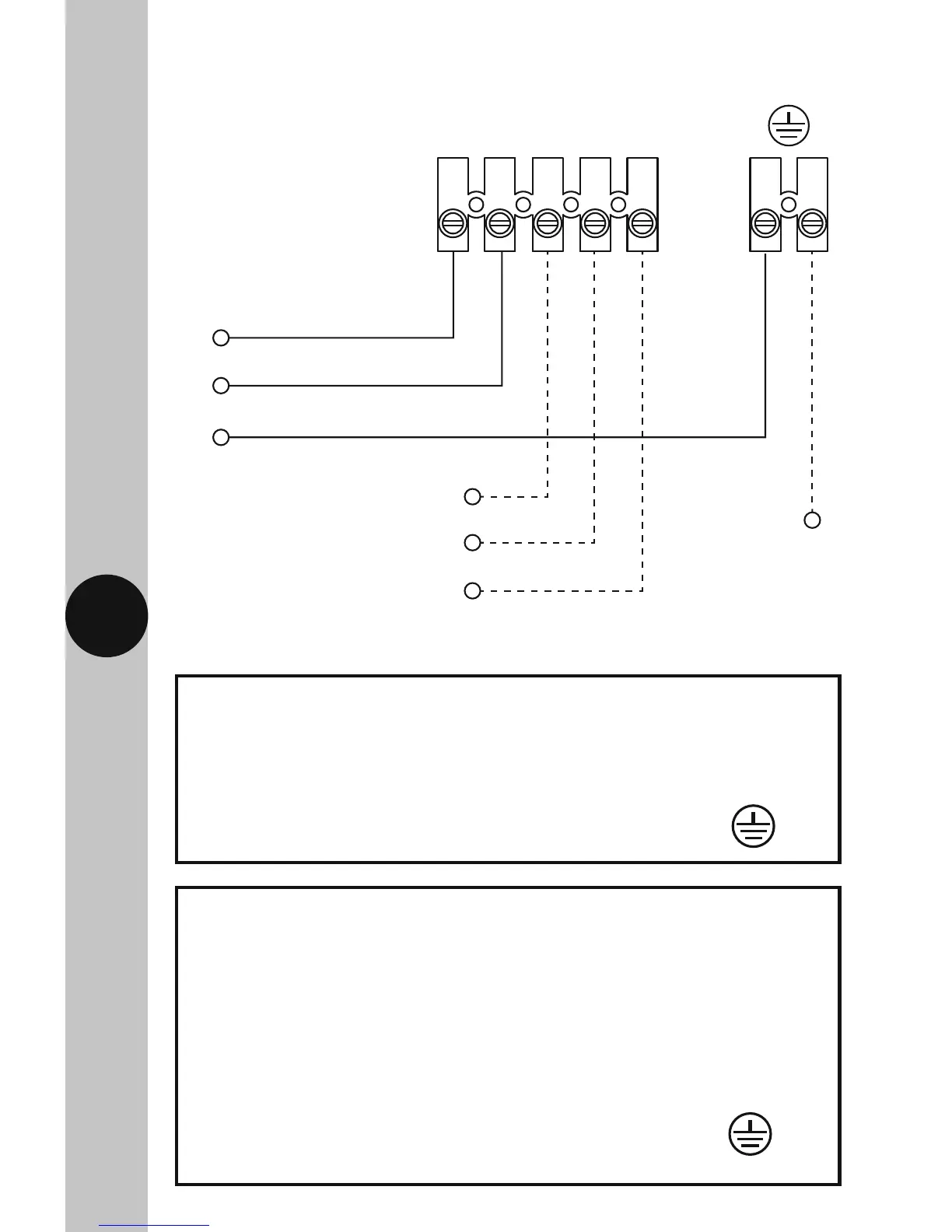

• 230V 50Hz mains – Twin or Dual element immersion heaters.
230V 50Hz Mains Supply
Live Supply (Brown or Red) to terminal 1
Neutral Supply (Blue or Black) to terminal 2
Earth (Green/Yellow) to
Load
Switch Live, Off peak load –
Primary element (Brown or Red) to terminal 5
Switch Live, Boost load –
Secondary element (Brown or Red) to terminal 4
Heater Neutral (Blue or Black) to terminal 3
Earth (Green/Yellow) to

Timeguard TRTD7N Specifications

General

Brand	Timeguard
Model	TRTD7N
Category	Controller
Language	English
