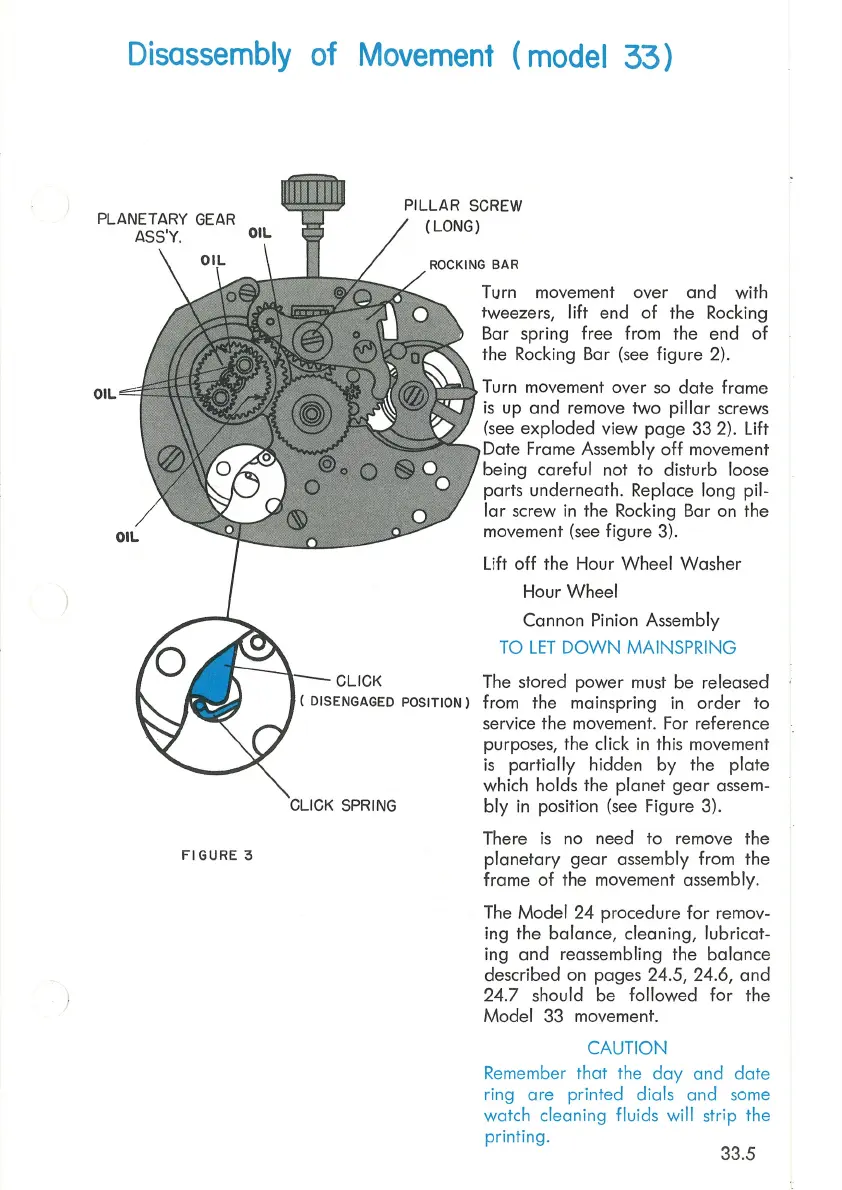

Disassembly of
Movement {model 33)
PLANETARY GEAR
ASS'Y.
OIL
OIL
PILLAR SCREW
(LONG)
ROCKING BAR
Turn movement over and with
tweezers,
lift end of the Rocking
Bar spring free from the end
of
the Rocking Bar (see figure 2).
Turn movement over
so date frame
is up and remove two pillar screws
(see exploded view page 33 2). Lift
Date Frame Assembly
off movement
being careful not
to disturb loose
parts underneath. Replace long
pil-
lar screw in the Rocking Bar on the
movement
(see figure 3).
Lift
off the Hour Wheel Washer
Hour Wheel
Cannon Pinion Assembly
TO
LET DOWN MAINSPRING
The stored
power must be released
( DISENGAGED POSITION) from the mainspring in order to
service the movement. For reference
purposes, the click in this movement
is part i ally hidden by the plate
which holds the planet gear assem-
K SPRING bly in position (see Figure 3 ).
There is no need to remove the
Fl GURE 3 planetary gear assembly from the
frame of the movement assembly.
The
Model 24 procedure for remov-
ing the balance, cleaning, lubricat-
ing and reassembling the balance
described on pages 24 .5, 24.6, and
24.7 should be followed for the
Model 33 movement.
CAUTION
Remember that the day and date
ring are printed dials and some
watch cleaning fluids
will strip the
printing.
33.5
